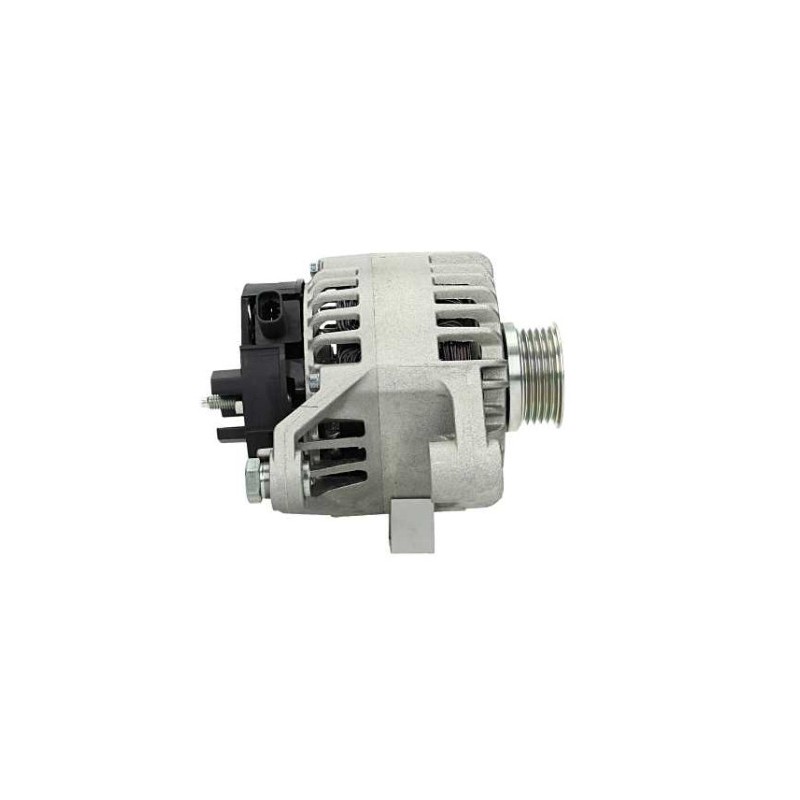

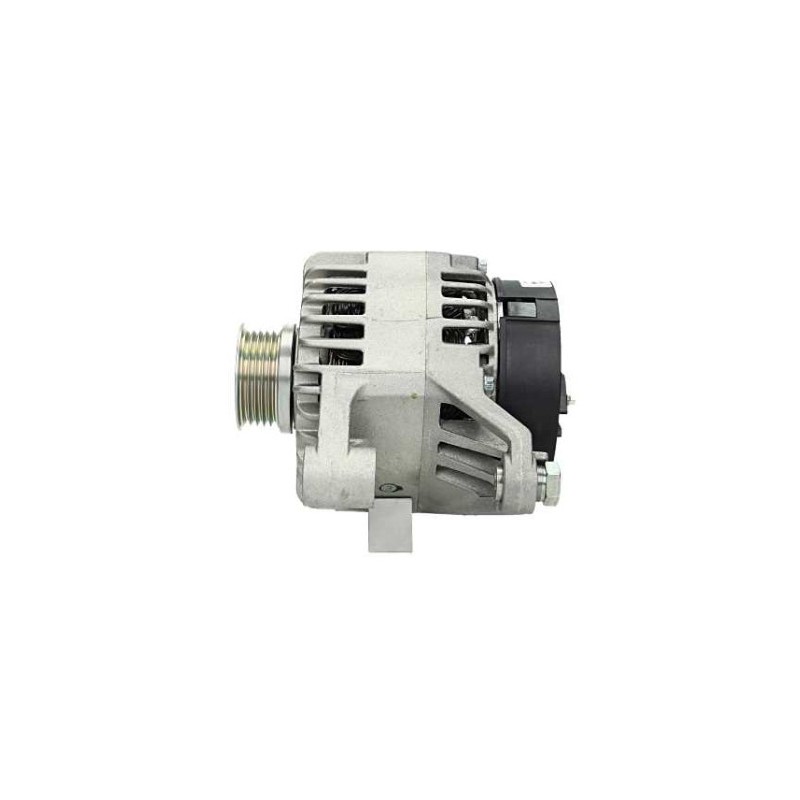

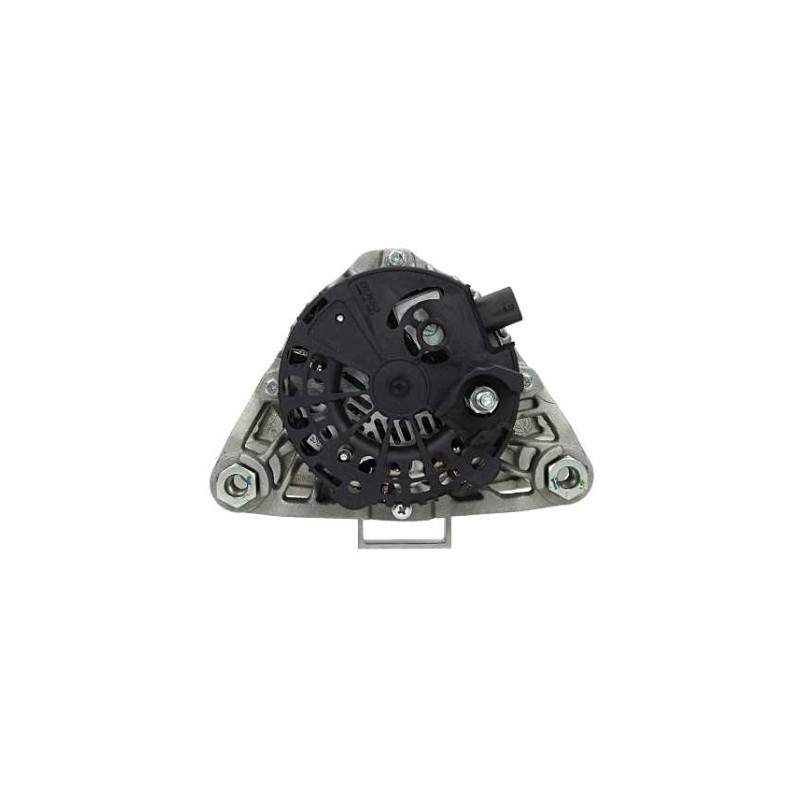

Alternator NEW replacing 101210-0940 / DAN1055 / 132222929 / 6204256 / 0986083580 / 63377496 / DRA0484 / LRA02963
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Specs Electricals | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 70 | |
Spécifique Physique | ||
|---|---|---|
| A | Pulley dist. | 54.50 |
| B | Width/holder arm | 33.50 |
| C | Mount. bracket dist | 59.50 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 10 |
| G | Belt. adj. bracket hole | M10 |
| H | Pulley dia. | 57.00 |
| I | Grooves/pulley | 5 |
| J | Radius | 91.50 |
| J | Radius 2 | 91.50 |
| K | Position B + | M8 |
| K | B+ position en min. | 10 |
| N | Rotation | Cr |

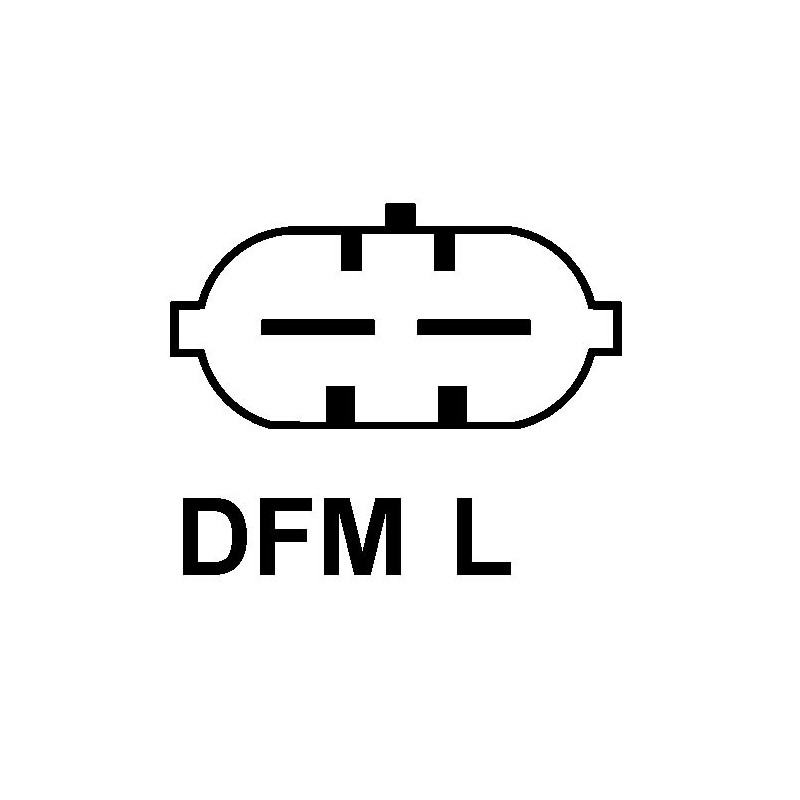

| O | Plug n° 1 | PL75 |
| R | Total length mm | 190.00 |
Replacing | |
|---|---|
| 101210-0940 | DENSO |
| 13222929 | OPEL |
| 6204256 | OPEL |
| CA2046IR | HC-PARTS |
generic brand
fits:
| Brand | Model | Tipo | Year |
| OPEL | Corsa D 1.0 | [A10XEP] | 01/07/06 |
| OPEL | Corsa D 1.0 | [A10XEP] | 01/01/10 |
| OPEL | Corsa D 1.0 | [Z10XEP] | 01/07/06 |
| OPEL | Corsa D 1.2 | [A12XEL] | 01/06/10 |
| OPEL | Corsa D 1.2 | [A12XER] | 01/06/10 |
| OPEL | Corsa D 1.2 | [Z12XEP] | 01/07/06 |
| OPEL | Corsa D 1.2 | [Z12XEP] | 01/07/09 |
| OPEL | Corsa D 1.2 Ecoflex | [Z12XEP] | 01/09/09 |
| OPEL | Corsa D 1.2 LPG | [A12XER] | 01/06/11 |
| OPEL | Corsa D 1.2 LPG | [A12XER] | 01/08/11 |
| OPEL | Corsa D 1.4 | A14XER] | 01/06/10 |
| OPEL | Corsa D 1.4 | [Z14XEP] | 01/07/06 |
| OPEL | Corsa D 1.4 Ecoflex | [Z14XEL] | 01/09/09 |
| OPEL | Corsa D 1.4 LPG | [A14XEL] | 01/09/09 |
| OPEL | Corsa D 1.4 LPG | [Z14XEP] | 01/07/06 |
| OPEL | Meriva 1.4 16V Twinport LPG | [Z14XEP] | 07.2004-05.2010 |
| OPEL | Meriva A 1.4 16V Twinport | [Z14XEP] | 01/07/04 |
| VAUXHALL | Corsa Mk III 1.0 | [Z10XEP] | 01/07/06 |
| VAUXHALL | CORSA Mk III 1.0 12V | [A10XEP] | 01/06/10 |
| VAUXHALL | Corsa Mk III 1.2 | [A12XEL] | 01/06/10 |
| VAUXHALL | Corsa Mk III 1.2 | [Z12XEP] | 01/07/06 |
| VAUXHALL | CORSA Mk III 1.2 16V | [A12XER] | 01/06/10 |
| VAUXHALL | Corsa Mk III 1.2 BiFuel LPG | [A12XER] | 01/06/11 |
| VAUXHALL | Corsa Mk III 1.2 BiFuel LPG | [A12XER] | 01/08/11 |
| VAUXHALL | Corsa Mk III 1.2 BiFuel LPG | [Z12XEP] | 01/09/09 |
| VAUXHALL | Corsa Mk III 1.4 | [Z14XEP] | 01/07/06 |
| VAUXHALL | Corsa Mk III 1.4 16V | [A14XER] | 01/07/10 |
| VAUXHALL | Corsa Mk III 1.4 BiFuel LPG | [Z14XEP] | 01/07/06 |
| VAUXHALL | Corsavan Mk III 1.2 16V | [A12XEL] | 01/07/06 |
| VAUXHALL | Corsavan MK IV 1.2 | [Z12XEP] | 01/07/09 |
| VAUXHALL | Meriva A 1.4 16V Twinport | [Z14XEP] | 01/07/04 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
