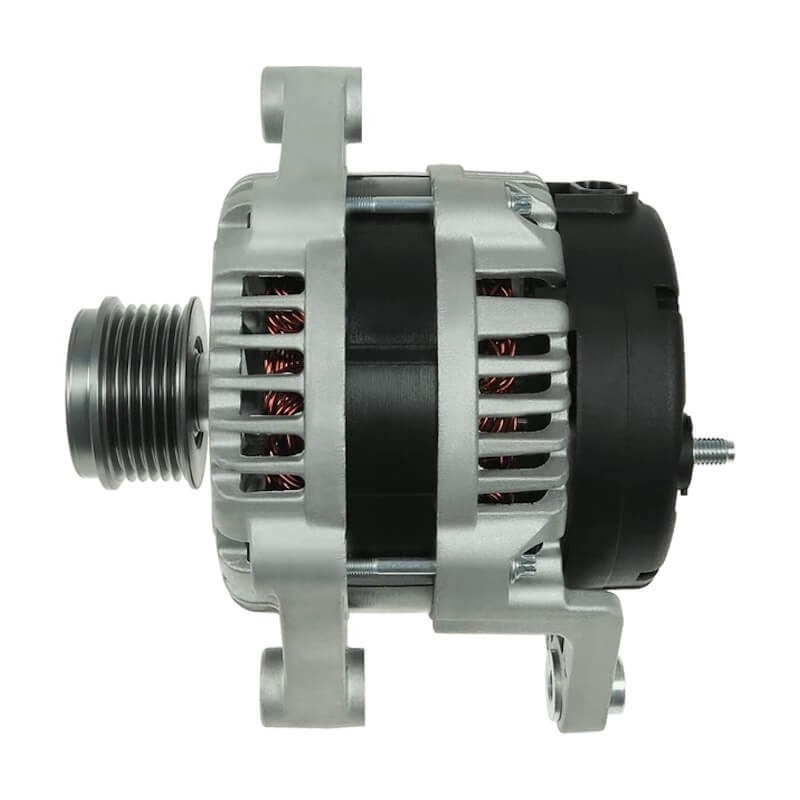

Alternator replacing 96866018 / 95519920 / AA8H11A0258 / 96627029
030580 | Da Silva |
|---|---|
1202430 | Opel |
1202485 | Opel |
12090312 | EuroTec |
16201211 | AES |
20089 | Lester |
20089N | WAI |
2042105 | Sando |
210937 | Messmer |
235513120 | PSH |
285830 | Elstock |
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 120 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.20 |
| G | Belt. adj. bracket hole | M10 |
| B | Width/holder arm | 32.00 |
| E | Belt. adj. brackethole pos. | 2 |
| C | Mount. bracket dist | 57.50 |
| H | Pulley dia. | 55.80 |
| A | Pulley dist. | 61.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 92.00 |
| j | Radius 2 | 92.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

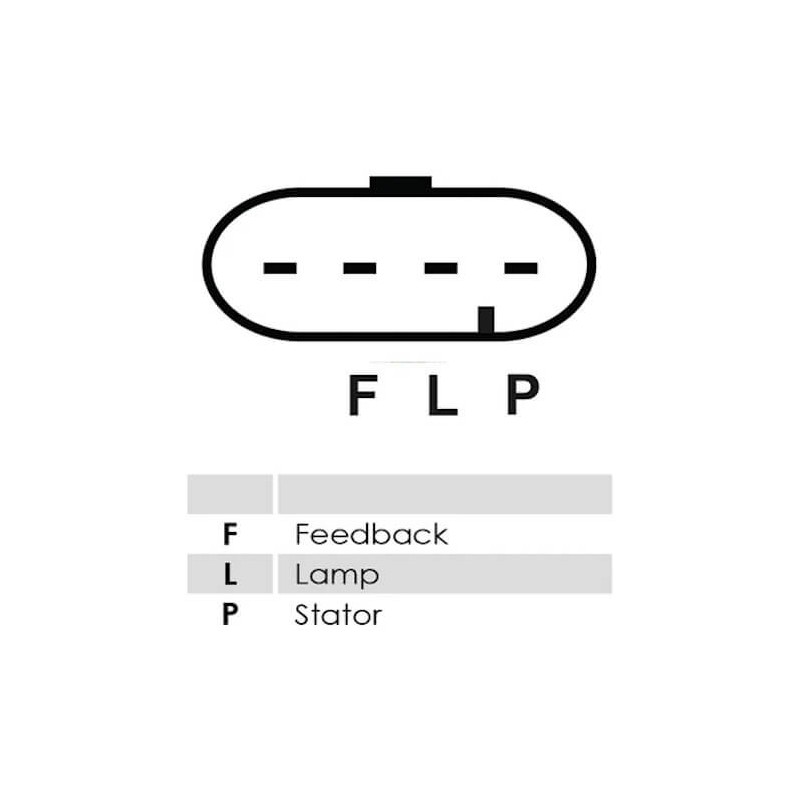

| o | Plug no. 1 | pl189 |
| R | Total length mm | 190.00 |
Replacing | |
|---|---|
| 96627029 | CHEVROLET |
| 96627029 | DAEWOO |
| 96627029 | DELPHI |
| 96627029 | OPEL |
| 96627029KJ | DELPHI |
| 96866018 | CHEVROLET |
| AA8H11A0258 | CHEVROLET |
generic brand
fits:
| Brand | Model | Tipo | Year |
| CHEVROLET | Captiva 2.0 VCDi | [Z20S] | 01/01/07 |
| CHEVROLET | Captiva 2.0 VCDi 4WD | [Z20S] | 01/01/07 |
| CHEVROLET | Lacetti 2.0 D | [Z20DM] | 01/01/07 |
| CHEVROLET | Nubira 2.0 D | [Z20DM] | 01/01/07 |
| CHEVROLET | Nubira 2.0 D | [Z20S] | 01/01/07 |
| OPEL | Antara 2.0 CDTi | [Z20S] | 01/01/07 |
| OPEL | Antara 2.0 CDTi 4WD | [Z20DM..] | 01/01/07 |
| VAUXHALL | Antara 2.0 CDTi | [Z20DMH] | 01/01/07 |
| VAUXHALL | Antara 2.0 CDTi | [Z20DM] | 01/01/07 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
