Alternator replacing BOSCH 0120489767 / 0120489766 / 0120489117

Information:

Voltage 14

Amp 45

D =Bracket hole 8.70

G =Belt. adj. bracket hole 8.65

B =Width/holder arm 56.00

E =Belt. adj. brackethole pos. 60

H =Pulley dia. 72.85

A =Pulley dist. 77.00

Grooves/pulley 1

J1 =Radius 85.00

J2 =Radius 90.50

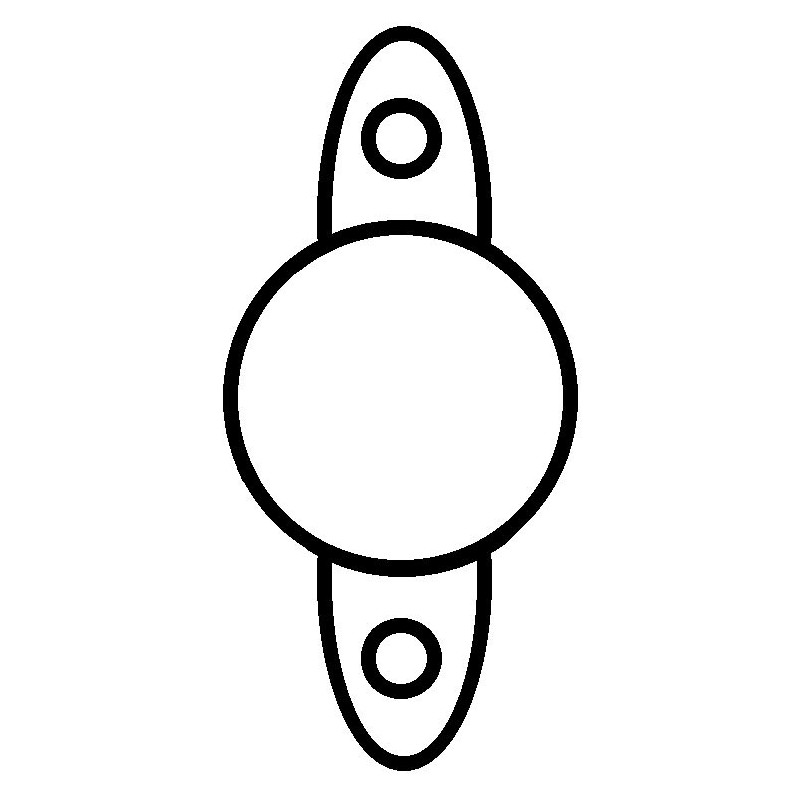

Position B + M6

Rotation Cr

Plug no. 1 PL_NA

Fan Ef

Pulley Pulley

R =Total length mm 165.50

= BOSCH 0120489767 / 0120489766 / 0120489117 / 0120489116

0986030870 / 0986030871

= Magirus 9986026

= MOTOROLA 2940353

= DELCO REMY 3472059 / 3472048 / 3472037 / 3472026 / 3472023 / 059 / 048 / 037 / 026 / 023

DRA0870

= OPEL 1204006 / 1204014 / 1204150 / 1204151 / 1204154 / 1204174 / 1204192

1204313

= VALEO 2941301 / 2940353 / 433054 / 436149

                  NO CORE EXCHANGE NEEDED

                                  TWO YEARS WARRANTY
