Alternator replacing BOSCH 0120489124 / 0120489123 / 0120489121

Information:

Voltage 14

Amp 65

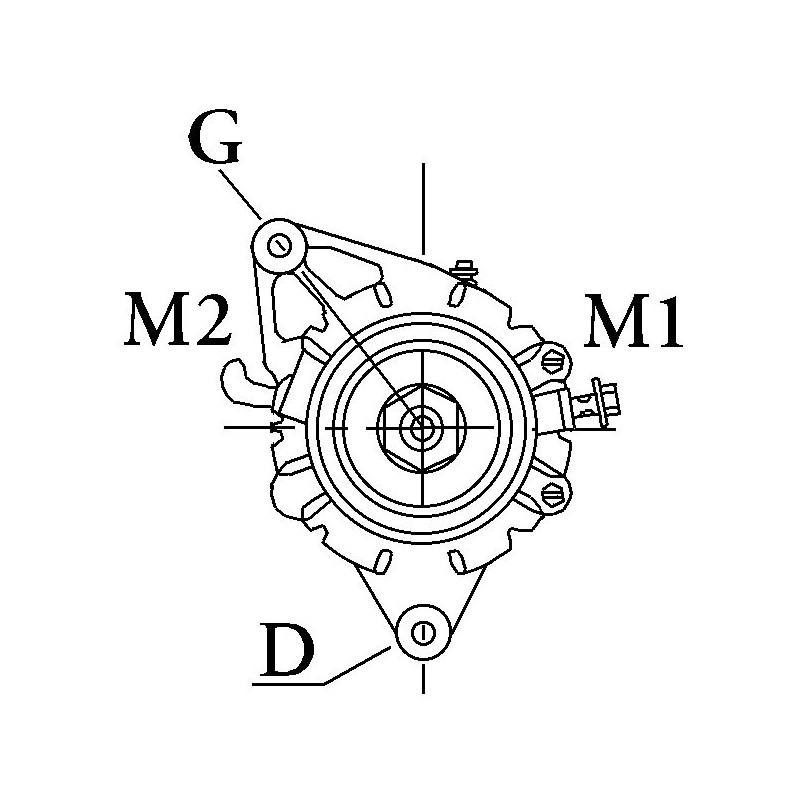

D = Bracket hole 8.45

G = Belt. adj. bracket hole 8.25

B = Width/holder arm 56.00

E = Belt. adj. brackethole pos. 57

H = Pulley dia. 75.00

A = Pulley dist. 87.90

Grooves/pulley 1

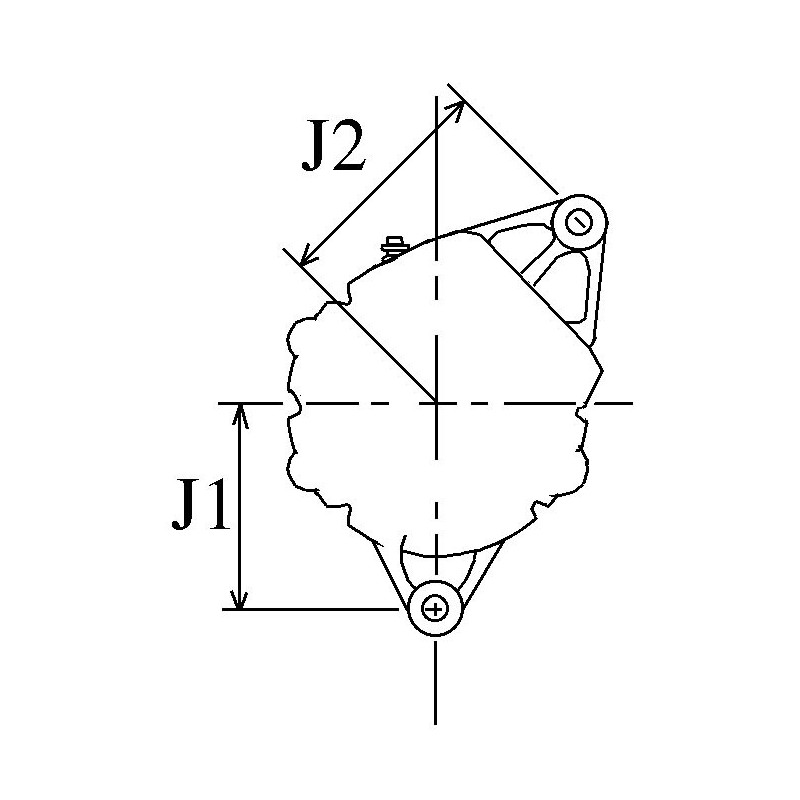

J = Radius 87.00

J = Radius 90.00

Position B + Plug

Rotation Cr

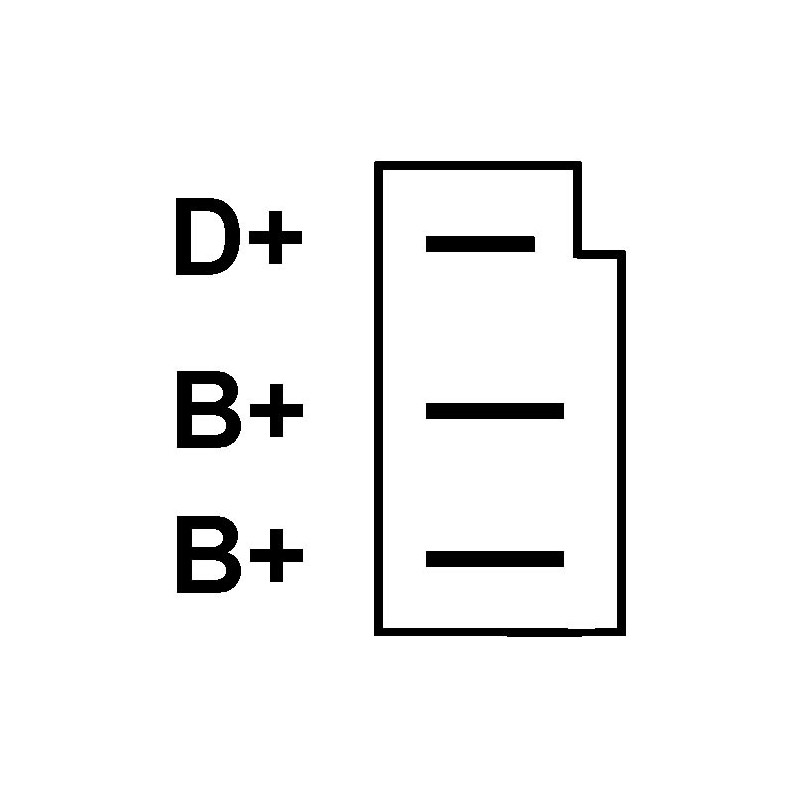

Plug no. 1 PL22

Fan Ef

Pulley Pulley

R = Total length mm 167.50

Fabriqué PRESTOLITE

= BOSCH 0120489121 / 0120489123
0120489124

= DELCO REMY 3472068 / 3472067 / 3472052 / 3471214
3472050 / 3471214 / 068 / 067 / 052 / 050

= LUCAS NAB304 / 66021149 / 66021101
60021056 / 60021055 / 60021054

= OPEL 1204008 / 1204009 / 1204010 / 1204011
1204020 / 1204021 / 1204197 / 1204198 / 1204317
1204318 / 1204319 / 1204320 / 90337047 / 90349210

             NO CORE EXCHANGE NEEDED

                                TWO YEARS WARRANTY
