Alternator replacing HITACHI lr220-26 / ISUZU 8944264470

Information:

Voltage 28

Amp 20

D = Bracket hole 10.30

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.60

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 81.60

Pulley dia. 75.75

Pulley dist. 41.60

Grooves/pulley 1

J = Radius 91.00

J = Radius 84.00

Position B + M5

Rotation Cr

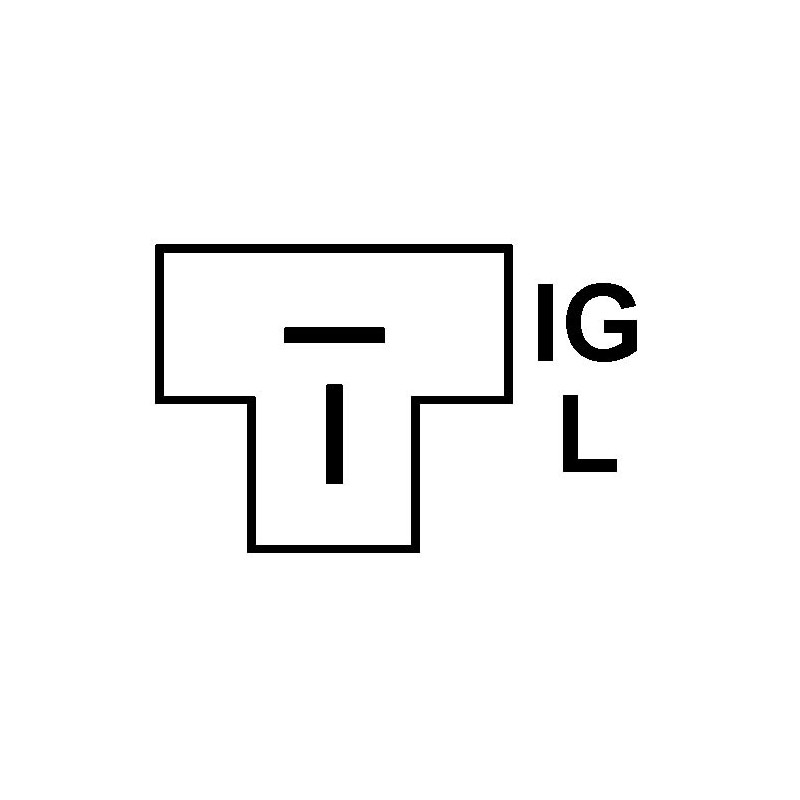

Plug no. 1 PL10

Fan Ef

Pulley Pulley

R = Total length mm 175.00

= HITACHI lr220-26

= ISUZU 8944264470

NO CORE EXCHANGE NEEDED                                                    TWO YEARS WARRANTY
