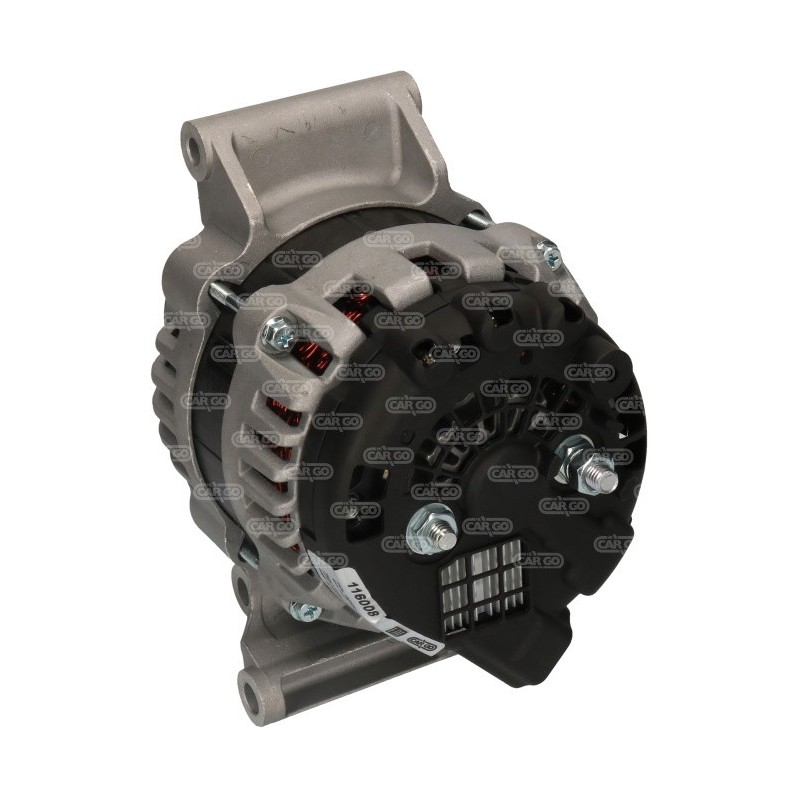

Alternator replacing 1204648 / 13502592 pour Opel
Alternator replaces 1204648 / 13502592 for Opel Insigna 2.0 Turbo engine A20FNT / A20NHT
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Physical information | ||
|---|---|---|
| A | Pulley dist. | 32.00 |
| B | Width/holder arm | 79.00 |
| C | Mount. bracket dist. | 56.00 |
| D | Bracket hole | 10.20 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | 8.20 |
| H | Pulley dia. | 56.00 |
| J | Radius | 81.50 |
| J | Radius 2 | 81.50 |
| K | B+ | M8 |
| K | Position/B+ in min. | 15 |
| N | Rotation | CW |

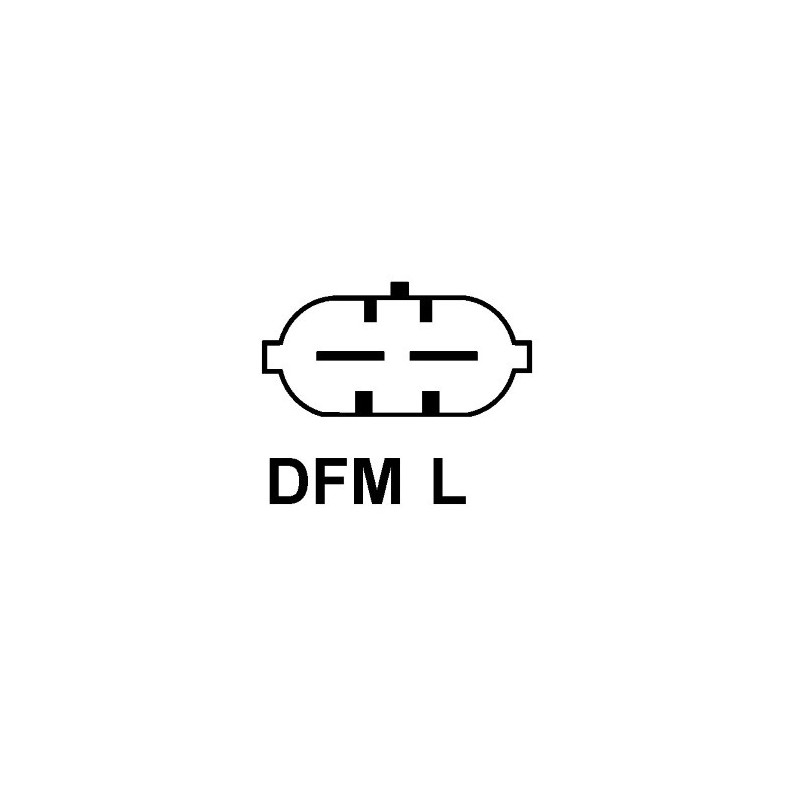

| O | Plug no. 1 | PL75 |
| R | Total length mm | 194.00 |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 100 | |
generic brand
replacing
| 116008 | Cargo | |
| 1202237 | Opel | |
| 1202344 | GM | |
| 1202443 | Opel | |
| 1202465 | Opel | |
| 1204648 | Opel | |
| 1204649 | GM | |
| 13500330 | GM | |
| 13502592 | Opel | |
| 13579673 | GM | |
| 135929100 | PSH | |
| 287778 | Elstock | |
| 95515974 | GM | |
| 95519879 | GM | |
| 95519900 | Opel | |
| LRA04169 | Lucas |
fits :
| Model | litre | Carburant | from | to | engine | engine | KW | chevaux | châssis | Tipo | cm3 | Cylindres |
| Insignia | 2.0 | Essence | 2008 07 | 2013 06 | A20NHT | Turbo | 162 | 220 | Break | Caravan | 1998 | 4 |
| Insignia | 2.0 | Essence | 2008 07 | 2017 03 | A20NHT | Turbo | 162 | 220 | Hayon | 1998 | 4 | |
| Insignia | 2.0 | Essence | 2011 07 | 2017 03 | A20NFT | Turbo | 184 | 250 | 4x4 | 1998 | 4 | |
| Insignia | 2.0 | Essence | 2011 09 | 2013 06 | A20NFT | Turbo | 184 | 250 | Break | 4x4 Sports Tourer | 1998 | 4 |
| Insignia | 2.0 | Essence | 2008 07 | 2011 06 | A20NHT | Turbo | 162 | 220 | Break | 4x4 | 1998 | 4 |
| Insignia | 2.0 | Bi-Fuel | 2010 09 | 2011 11 | A20NFT | Turbo | 162 | 220 | Break | E85 Turbo | 1998 | 4 |
| Insignia | 2.0 | Essence | 2014 04 | 2017 03 | A20NHT | Turbo | 184 | 250 | 1998 | 4 | ||
| Insignia | 2.0 | Essence | 2008 07 | 2017 03 | A20NHT | Turbo | 162 | 220 | 4x4 | 1998 | 4 | |
| Insignia | 2.0 | Essence | 2011 07 | 2017 03 | A20NFT | Turbo | 184 | 250 | Hayon | 4x4 | 1998 | 4 |
| Insignia | 2.0 | Bi-Fuel | 2010 10 | 2017 03 | A20NFT | Turbo | 162 | 220 | Hayon | E85 Turbo | 1998 | 4 |
| Insignia | 2.0 | Essence | 2011 07 | 2017 03 | A20NFT | Turbo | 184 | 250 | Hayon | 4x4 | 1998 | 4 |
| Insignia | 2.0 | Essence | 2008 07 | 2017 03 | A20NHT | Turbo | 162 | 220 | 1998 | 4 | ||
| Insignia | 2.0 | Essence | 2014 04 | 2014 11 | A20NHT | Turbo | 184 | 250 | Break | 1998 | 4 | |
| Insignia | 2.0 | Essence | 2014 04 | 2017 03 | A20NHT | Turbo | 184 | 250 | Hayon | 1998 | 4 | |
| Insignia | 2.0 | Bi-Fuel | 2010 10 | 2017 03 | A20NHT | Turbo | 162 | 220 | Hayon | E85 Turbo | 1998 | 4 |
| Insignia | 2.0 | Diesel | 2008 07 | 2017 03 | A20NFT | Turbo | 162 | 220 | E85 Turbo | 1998 | 4 | |
| Insignia | 2.0 | Essence | 2008 07 | 2017 03 | A20NHT | Turbo | 162 | 220 | Hayon | 4x4 | 1998 | 4 |
