Alternator replacing MITSUBISHI A2TA2292 / A2T14592 / A002TA2292

Information:

Rotation Cr

Amp 70

Voltage 14

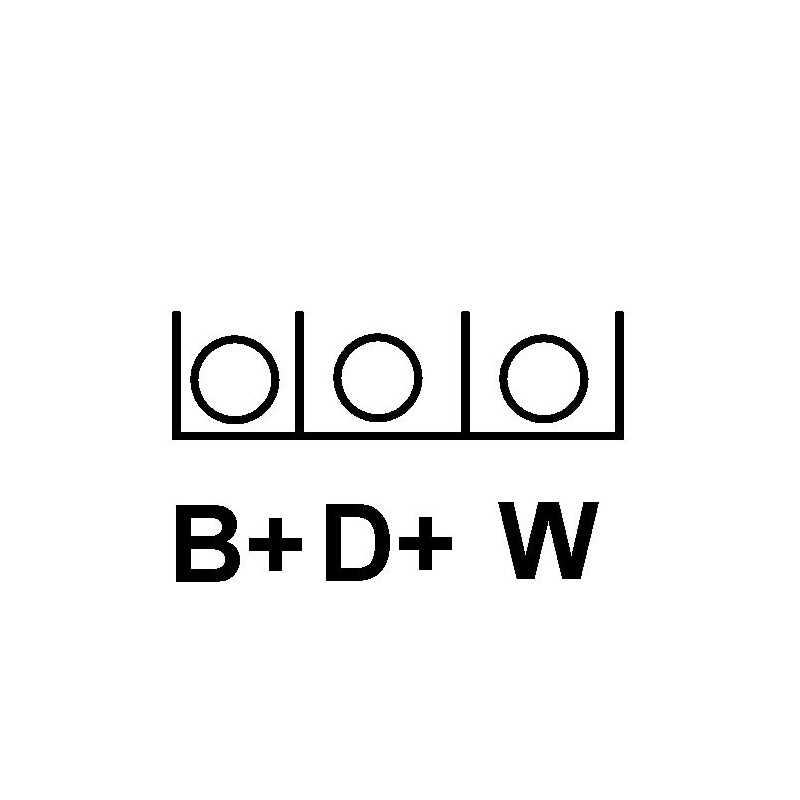

Plug type W

D = Bracket hole 8.50

G = Belt. adj. bracket hole M8

B = Width/holder arm 14.20

E = Belt. adj. brackethole pos. 10

C = Mount. bracket dist 75.50

H = Pulley dia. 59.70

A = Pulley dist. 33.00

Grooves/pulley 5

J = Radius 86.00

J = Radius 2 86.00

Position B + M6

Plug no. 1 PL70

Fan If

Pulley Serpentine Pulley

Tipo regulator Ir

Tipo prise W M5

R = Total length mm 170.00

Remarks D+ peut être du M4

= MITSUBISHI A2TA2292 / A2T14592 / A002TA2292 / A002T14592

= FORD 1053656 / 1074633 / 1107444 / 6694981 / 7275998 / 7352057 / 91ff10300ja

91ff10300jb / 93ff10300aa / 95ff10300aa / 95ff10300ab / 95ff10300ac / 95FF10300AD

R95FF10300AA / r95ff10300ac

= MAGNETI MARELLI 63320243 / 63320531 / 63321257 / 63321425 / 63321666

63321695 / 63341666 / 63341695 / 943322602

= ISKRA 11.201.992 / AAK5301

= BOSCH 9124476048 / 0986036701

= DRA3428 / 595502070 / EGL1243R / KTR1191004140 / IA0992 / IA0993 / LRB00260 / LRB172 / LRB243 / MAN833

                                   NO CORE EXCHANGE NEEDED

                                                    TWO YEARS WARRANTY
