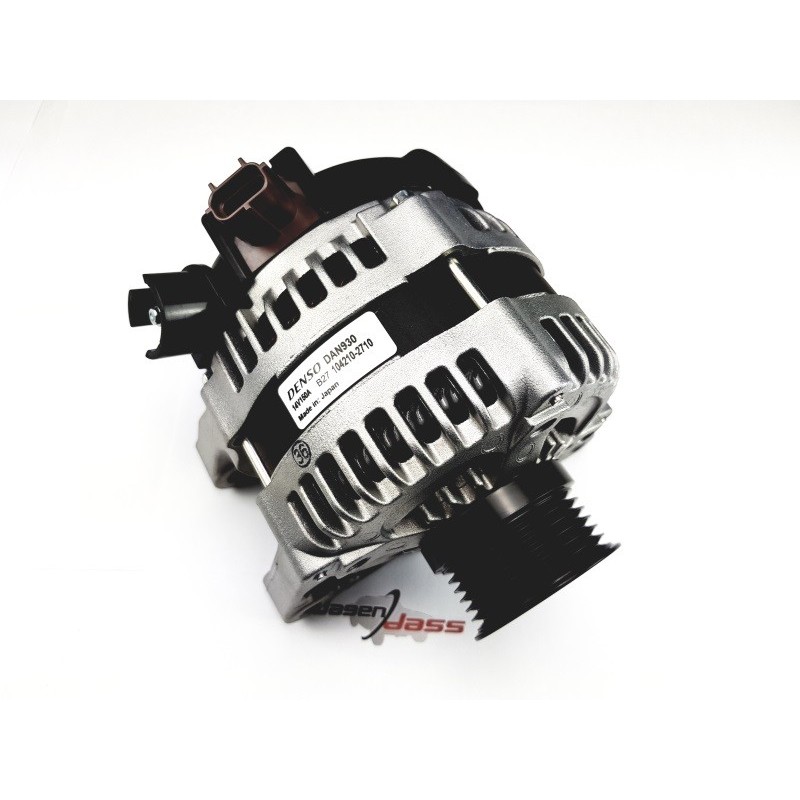

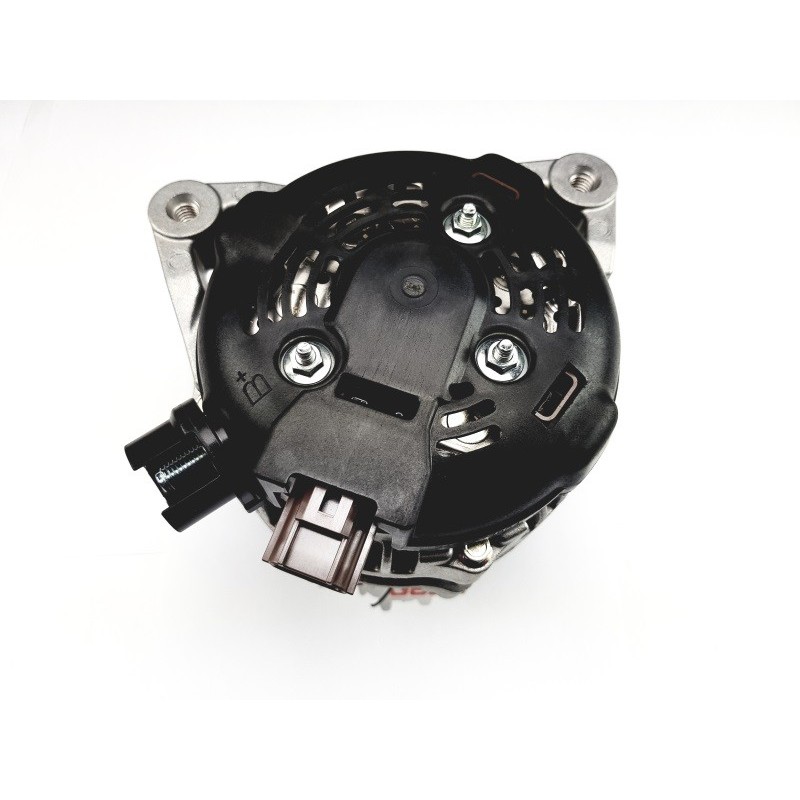

Alternator DENSO 104210-3523 / 104210-3522 / 104210-3521

Information:

Voltage 14

Amp 150

D = Bracket hole 10.00

G = Belt. adj. bracket hole 10.50

B = Width/holder arm 21.00

E = Belt. adj. brackethole pos. 47

C = Mount. bracket dist 45.00

H = Pulley dia. 54.50

A = Pulley dist. 42.50

Grooves/pulley 6

J = Radius 90.00

J = Radius 90.00

Position B + M8

Rotation Cr

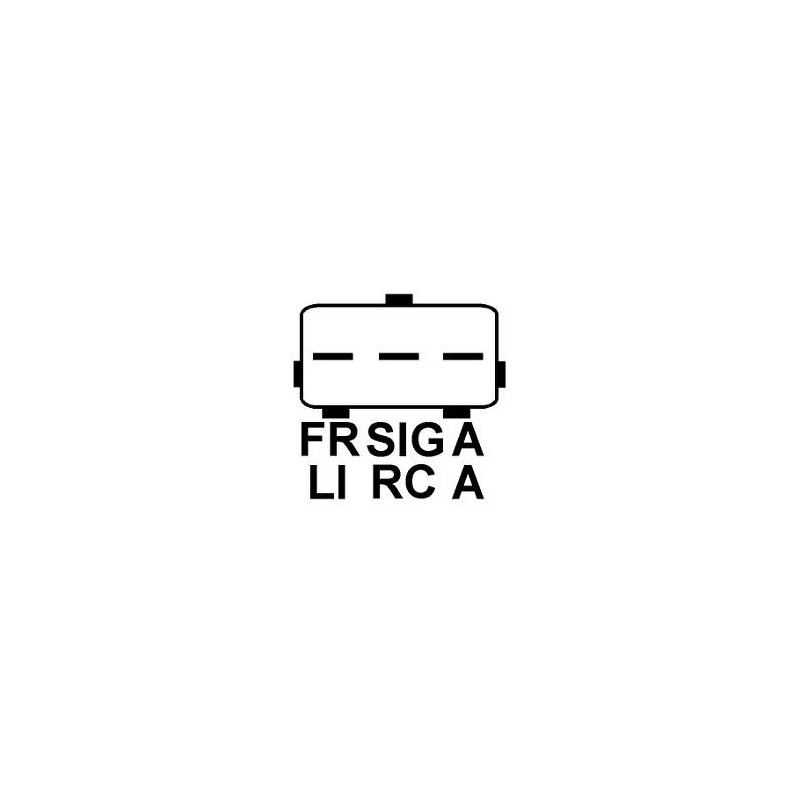

Plug no. 1 PL57

Fan If

Pulley Serpentine Pulley/ Freewheel pulley

G = Belt. adj. bracket hole (M10)

= BOSCH 0986049070 / 0986049071

= DELCO REMY DRA4239

= DENSO  104210-2710 / 104210-3520 / 104210-3521 / 104210-3522 / 104210-3523 / 104210-3524

104210-5710 / 104210-5711 / DAN930

= FORD 1229259 / 1255711 / 1477738 / 1676843 / 1704085 / 1708322 / 3M5T10300YB / 3M5T10300YC

3M5T10300YD / 8M5T10300YA / 8M5T10300YB

= HELLA 8EL738211331

= LUCAS LRA02815

= MAGNETI MARELLI 63377416

= VOLVO 30667068 / 30795423 / 31285593 / 31285595 / 36000599 / 36050997 / 8603183

= MAN7416 / HCA1834IR / KTR1191090300 / 934239 / 9090434F

                     NO CORE EXCHANGE NEEDED

                                       TWO YEARS WARRANTY
