Alternator replacing MITSUBISHI A2T20191ZC / A2T20191 / A2T19991A

Information:

Voltage 14

Amp 70

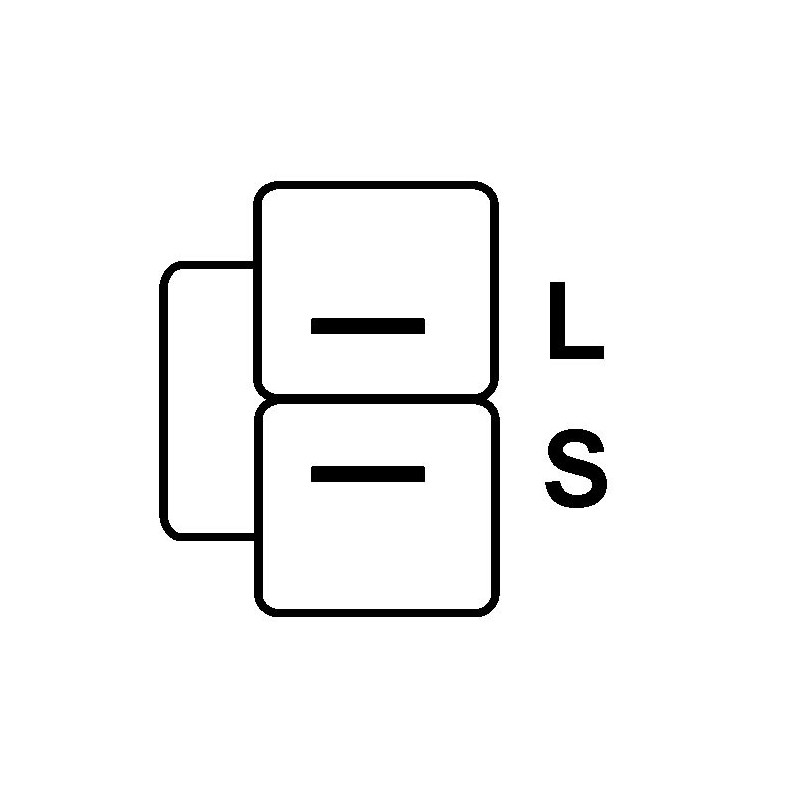

Plug type W

D = Bracket hole M10

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.10

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 66.30

H = Pulley dia. 58.08

Pulley dist. 44.50

Grooves/pulley 3

J = Radius 90.00

J = Radius 85.00

Position B + M6

Rotation Cr

Plug no. 1 PL07

Fan If

Pulley Serpentine Pulley

R = Total length mm 161.50

= BOSCH 0986036341 / 0986036471

= DELCO REMY DRA3098

= FORD E92Z10346A

= HELLA 8EL726359001 / 8EL732723001

= LUCAS LRA790/ LRA00790

= MAZDA F22518300 / F28518300 / F28518300B / F28518300C / F28518300E / F29018300
F29018300A / F29018300B / F8B118300 / F8B118300A / F8B118300B / F8B118300C
F8B118300D / F8B118300E / F8B118300G / F8B718300

= MITSUBISHI A002T05892 / A002T05892A / A002T05892B / A002T05892ZC
A002T05893 / A002T05893ZC / A002T06092 / A002T19991 / A002T19991A
A002T20191 / A002T20191ZC / A2T05892 / A2T05892A / A2T05892B
A2T05892C / A2T05892ZC / A2T05893 / A2T05893ZC / A2T06092
A2T19991 / A2T19991A / A2T20191 / A2T20191ZC

= VALEO TA000B16701 / 437648 / 436548

                              NO CORE EXCHANGE NEEDED

                                                 TWO YEARS WARRANTY
