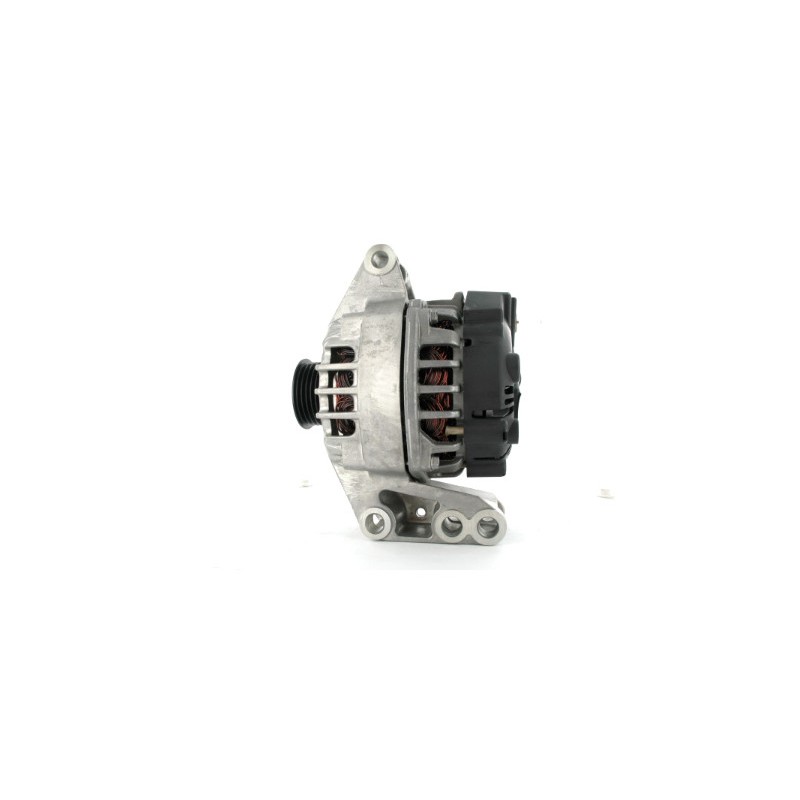

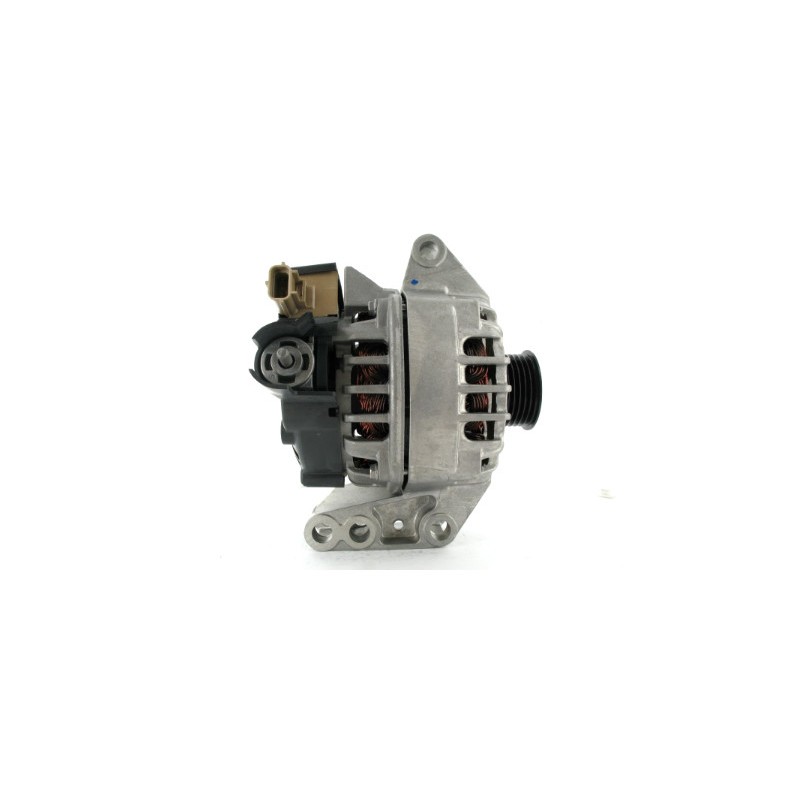

Alternator replacing VALEO 2543302 / 2543302A / TG7S012 / FORD 4S5T10300AC
Alternator NEW replacing VALEO 2543302 / 2543302A / TG7S012 / 1451865 / 1486810
= FORD 4S5T10300AA / 4S5T10300AB
= DRA0322 / LRA03193
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 80 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.00 |
| G | Belt. adj. bracket hole | 10.00 |
| B | Width/holder arm | 55.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 51.00 |
| H | Pulley dia. | 48.50 |
| A | Pulley dist. | 39.50 |
| i | Grooves/pulley | 6 |
| k | Position B + | M6 |
| n | Rotation | CW |

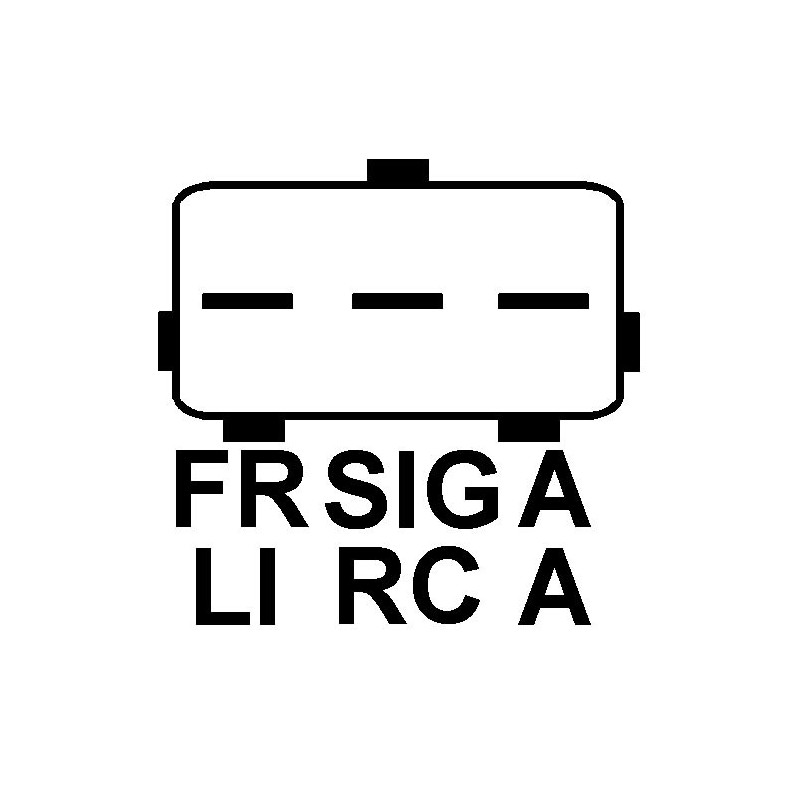

| o | Plug no. 1 | PL57 |
| D | Trou from fixation support 2 | 12.00 |
| G | Belt. adj. bracket hole 2 2 | 13.90 |
| R | Total length mm | 164.00 |
Replacing | |
|---|---|
| 1451865 | FORD |
| 1486810 | FORD |
| 2543302 | VALEO |
| 2543302A | VALEO |
| 4s5t10300aa | FORD |
| 4S5T10300AB | FORD |
| 4S5T10300AC | FORD |
| ca1993ir | HC-PARTS |
| tg7s012 | VALEO |
| 1451865 |
| 1486810 |
| 2543302 |
| 2543302A |
| 275805 |
| 439728 |
| 440063 |
| 4S5T10300AA |
| 4S5T10300AB |
| 4S5T10300AC |
| 595580080 |
| 635618 |
| 6444SP |
| 930322 |
| CA1993IR |
| DRA0322 |
| HCA1993IR |
| LRA03193 |
| OAN12398 |
| TG7S012 |
| TG7S017 |
Generic brand
Mounted on : FORD KA
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
