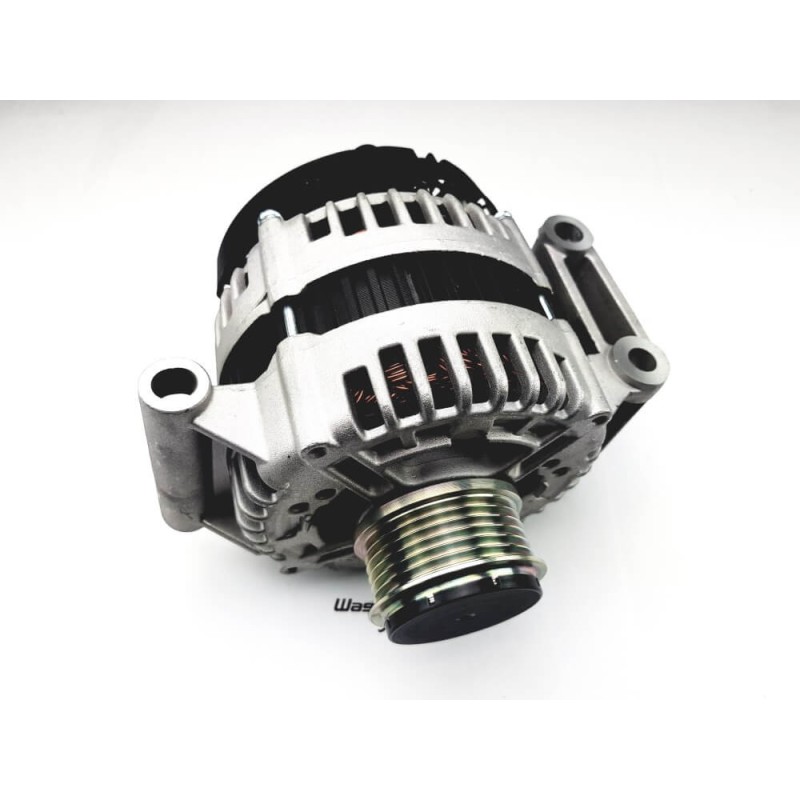

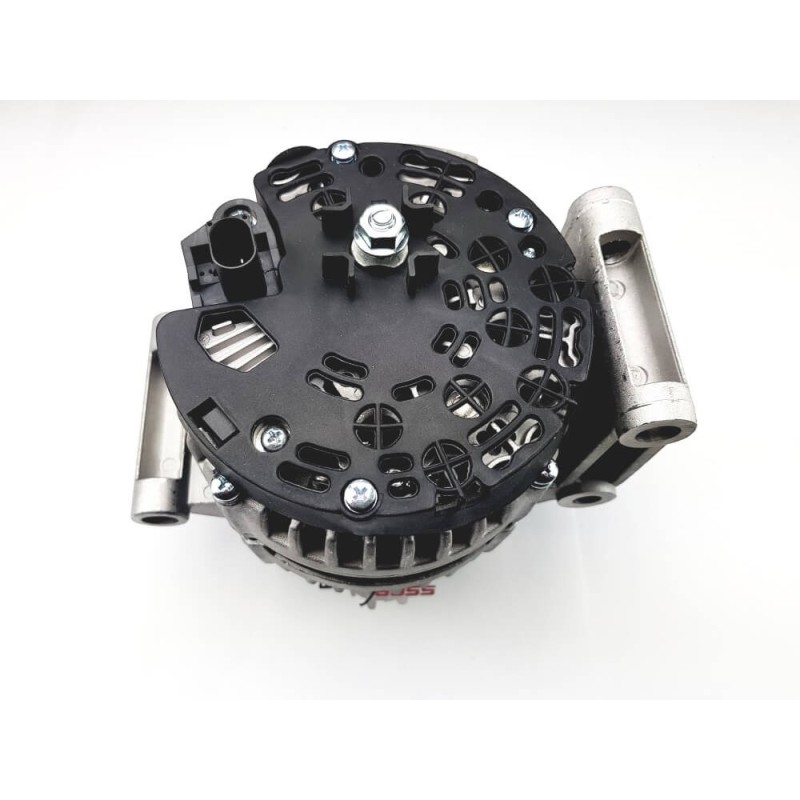

Alternator replacing BOSCH 0125711059 / 0125711017 / 0121615002
Alternator NEW for CITROEN, FIAT, FORD, PEUGEOT
= BOSCH 0125711059 / 0125711017 / 0121615002 / 01210AA67B
01210AA6MB / 0986047910
= 1404791 / 6C1T10300BA / 6C1T10300BB / 6C1T10300BC
6C1T10300BD / 9658144680 / 9659918080 / 967614358
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Rotation Cr
Amp 150
Voltage 14
D = Bracket hole 12.00
G = Belt. adj. bracket hole 11.00
B = Width/holder arm 92.80
E = Belt. adj. brackethole pos. 60
C = Mount. bracket dist 74.00
H = Pulley dia. 58.50
A = Pulley dist. 43,00
Grooves/pulley 6
Position B + M8
Plug no. 1 PL61
Trou from fixation support 2 10.00
Fan If
Pulley Serpentine Pulley/ Freewheel pulley
Tipo regulator Ir
generic brand
= BOSCH 0125711059 / 0125711017 / 0121615002 / 01210AA67B
01210AA6MB / 0986047910
= 1404791 / 6C1T10300BA / 6C1T10300BB / 6C1T10300BC
6C1T10300BD / 9658144680 / 9659918080 / 967614358
1572736 / 1581843 / 1747021 / 1762862 / 2205580 / 225538150
23925 / 241461 / 285591 / 5702L5 / 5705EA / 6379SP
8EL738212131 / 9047910F / 947910 / 9676143580
AC1T10300BA / AC1T10300BB / DRB7910 / LRA02977
used on :
| Brand | Model | Typ | year |
| CITROEN | Jumper 2.2 HDi | [4HU(P22DTE)] | 01/04/06 |
| CITROEN | Jumper 2.2 HDi | [4HV(P22DTE)] | 01/04/06 |
| FIAT | Ducato 2.2 Multijet | [4HV] | 01/07/06 |
| FORD | Transit 2.2 TDCi | [P8FA] | 01/07/06 |
| FORD | Transit 2.2 TDCi | [P8FB] | 01/07/06 |
| FORD | Transit 2.2 TDCi | [PGFA] | 01/10/07 |
| FORD | Transit 2.2 TDCi | [PGFB] | 01/10/07 |
| FORD | Transit 2.2 TDCi | [QVFA] | 01/07/06 |
| FORD | Transit 2.2 TDCi | [QWFA] | 01/07/06 |
| FORD | Transit 2.2 TDCi | [SRFA] | 01/10/08 |
| FORD | Transit 2.2 TDCi | [SRFB] | 01/10/08 |
| FORD | Transit 2.2 TDCi | [SRFC] | 01/10/08 |
| FORD | Transit 2.2 TDCi | [SRFD] | 01/10/08 |
| FORD | Transit 2.2 TDCi | [SRFE] | 01/10/08 |
| FORD | Transit 2.2 TDCi | [UHFA] | 01/10/07 |
| FORD | Transit 2.2 TDCi | [UHFC] | 01/10/07 |
| FORD | Transit Tourneo 2.2 TDCi | [PGFA] | 01/10/07 |
| FORD | Transit Tourneo 2.2 TDCi | [PGFB] | 01/10/07 |
| FORD | Transit Tourneo 2.2 TDCi | [QVFA] | 01/07/06 |
| FORD | Transit Tourneo 2.2 TDCi | [QWFA] | 01/07/06 |
| FORD | Transit Tourneo 2.2 TDCi | [SRFA] | 01/10/08 |
| FORD | Transit Tourneo 2.2 TDCi | [SRFB] | 01/10/08 |
| FORD | Transit Tourneo 2.2 TDCi | [SRFC] | 01/10/08 |
| FORD | Transit Tourneo 2.2 TDCi | [SRFD] | 01/10/08 |
| FORD | Transit Tourneo 2.2 TDCi | [SRFE] | 01/10/08 |
| PEUGEOT | Boxer 2.2 HDi | [4HU(P22DTE)] | 01/04/06 |
| PEUGEOT | Boxer 2.2 HDi | [4HV(P22DTE)] | 01/04/06 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
