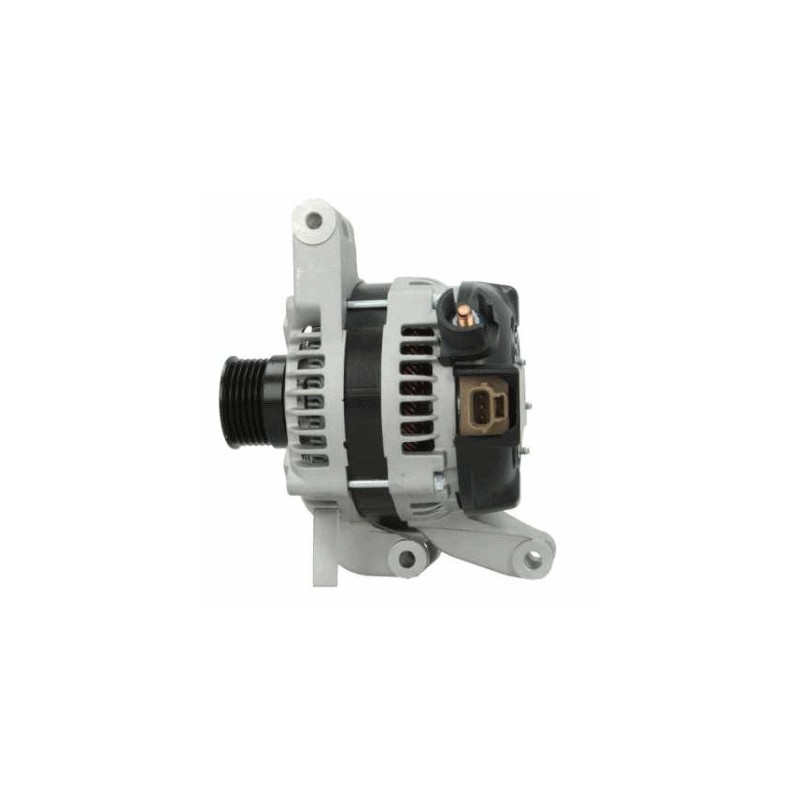

Alternator replacing 104210-3530 / 104210-3531 / 104210-3532
Alternator NEW for FORD Focus / C-Max 1.8 essence
0986081700 / 3M5T10300LA / 3M5T10300LB / 3m5t10300lc / 3M5T10300LD
440420 / 440424
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
generic brand
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 120 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 9.00 |
| G | Belt. adj. bracket hole | 9.00 |
| B | Width/holder arm | 72.00 |
| C | Mount. bracket dist | 68.50 |
| H | Pulley dia. | 49.00 |
| A | Pulley dist. | 75.00 |
| i | Grooves/pulley | 6 |
| k | Position B + | M8x1.25 |
| n | Rotation | CW |

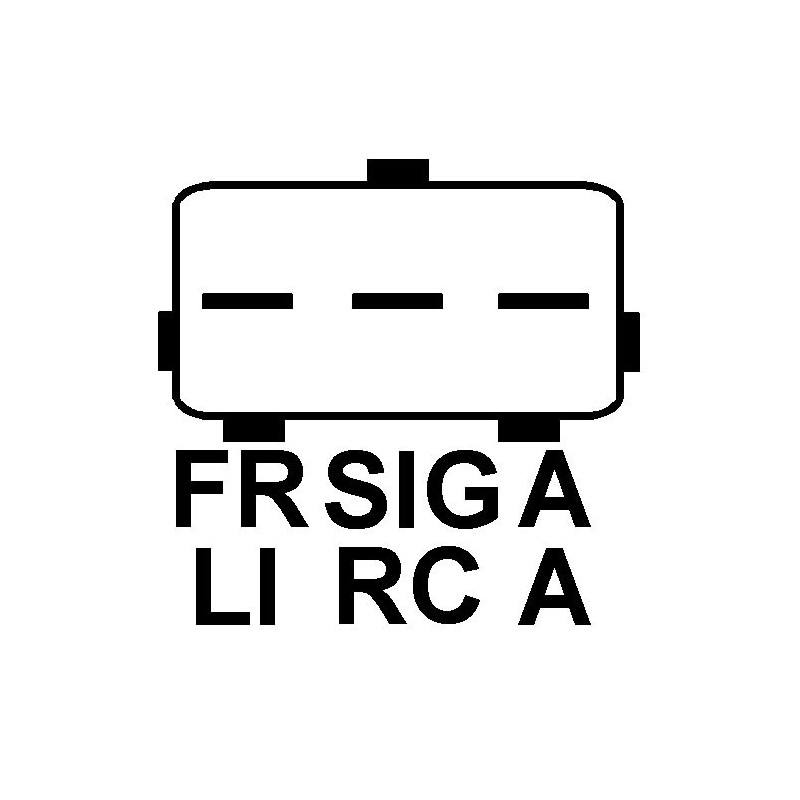

| o | Plug no. 1 | PL57 |
| R | Total length mm | 165.00 |
Replacing | |
|---|---|
| 104210-3530 | DENSO |
| 104210-3531 | DENSO |
| 104210-3532 | DENSO |
| 104210-5800 | DENSO |
| 1322879 | FORD |
| 1530298 | FORD |
| 30667069 | VOLVO |
| 3M5T10300LA | FORD |
| 3M5T10300LB | FORD |
| 3m5t10300lc | FORD |
| 3M5T10300LD | FORD |
| 8666581 | VOLVO |
| ca1926ir | HC-PARTS |
| 0986081700 | BOSCH |
| 1042103531 | DENSO |
| 1042103532 | DENSO |
| 1042105800 | DENSO |
| 1322879 | FORD |
| 1530298 | FORD |
| 1748620 | FORD |
| 24046 | LUCAS |
| 24046N | Lester |
| 275600 | Elstock |
| 275658 | Elstock |
| 2905536 | PIC |
| 3M5T10300LC | FORD |
| 3M5T10300LD | FORD |
| 440420 | VALEO |
| 440424 | VALEO |
| 595557120 | PSH |
| 5M5T10300AA | FORD |
| 5M5T10300AB | FORD |
fits:
| Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Focus | 1.8 | Unleaded | 2004 04 | - | QQDA | 92 | 125 | MPV | C-Max | 1798 | 4 | |
| Focus | 1.8 | Unleaded | 2003 10 | 2007 03 | CSDB | 88 | 120 | MPV | C-Max | 1798 | 4 | |
| Focus | 1.8 | Unleaded | 2006 03 | - | Q7DA | 92 | 125 | Break | 1798 | 4 | DAW_ | |
| Focus | 2.0 | Bi-Fuel | 2008 06 | - | SYDA | 107 | 145 | Hayon | LPG | 1999 | 4 | DA_ |
| Focus | 1.8 | Unleaded | 2006 03 | - | QQDB | 92 | 125 | Hayon | 1798 | 4 | DA_ | |
| Focus | 1.8 | Unleaded | 2006 03 | - | QQDB | 92 | 125 | 1798 | 4 | DA_ | ||
| Focus | 1.8 | Unleaded | 2006 06 | - | Q7DA | 92 | 125 | 1798 | 4 | DA_ | ||
| Focus | 1.8 | Unleaded | 2003 10 | 2007 03 | CSDA | 88 | 120 | MPV | C-Max | 1798 | 4 |
| Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Engine in cm3 | Cylindres |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C-Max | 1.8 | Unleaded | 2007 02 | - | Q7DA | FlexFuel | 92 | 125 | MPV | 1798 | 4 |
| C-Max | 1.8 | Unleaded | 2007 02 | - | QQDA | 92 | 125 | MPV | 1798 | 4 | |
| C-Max | 2.0 | Unleaded | 2007 02 | - | AODB | 107 | 145 | MPV | 1999 | 4 | |
| C-Max | 2.0 | Unleaded | 2007 02 | - | SYDA | 107 | 145 | MPV | 1999 | 4 | |
| C-Max | 1.8 | Unleaded | 2007 02 | - | QQDC | 90 | 122 | MPV | 1798 | 4 | |
| C-Max | 1.8 | Unleaded | 2007 02 | - | QQDB | 92 | 125 | MPV | 1798 | 4 |
