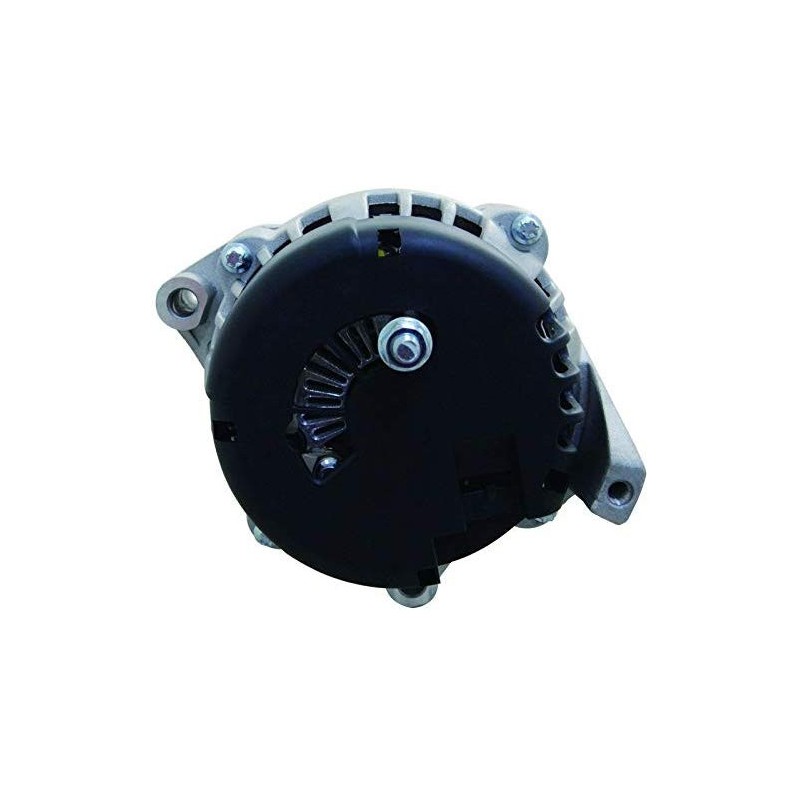

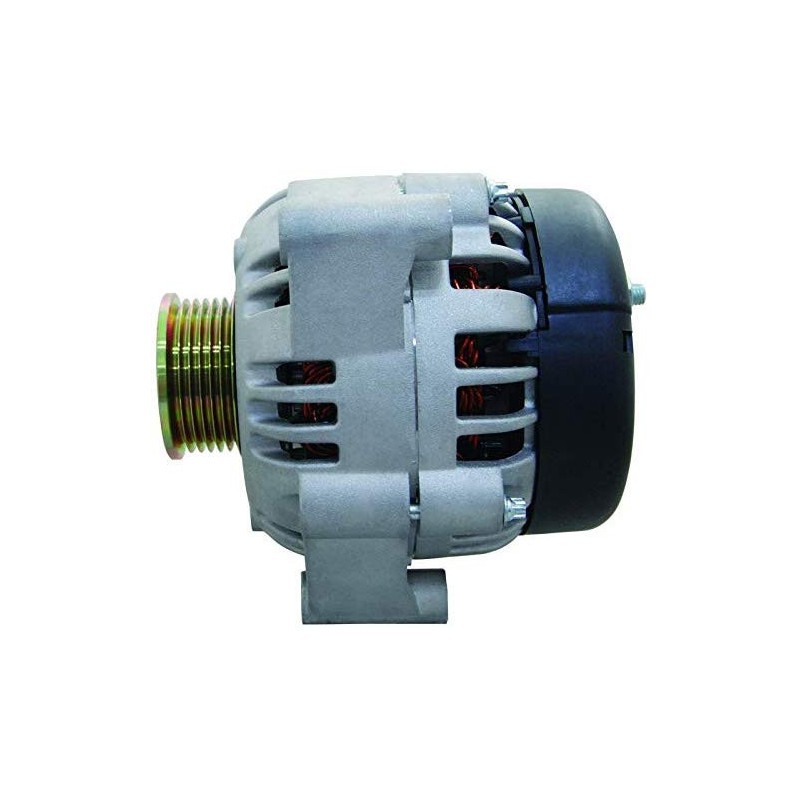

Alternator replacing 10464084 / 10480251 / 10480254 / 8231
w8231n
Alternator NEW replacing :
DELCO REMY 10464084, 10464433, 10480251, 10480254, 19244782, GM 10464084, 10464433, ISUZU 8104640840
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Features
Information:
| Voltage | 14 | |
| Amp. | 100 | |
Physical Information | ||
|---|---|---|
| A | Pulley dist. | 72.00 |
| B | Width/holder arm | 50.80 |
| D | Bracket hole | 10.30 |
| E | Belt. adj. brackethole pos. | 10 |
| G | Belt. adj. bracket hole | 10.30 |
| H | Pulley dia. | 56.50 |
| I | Grooves/pulley | 6 |
| J | Radius | 82.00 |
| J | Radius 2 | 82.00 |
| K | Position B + | M8 |
| K | B+ position en min. | 60 |
| N | Rotation | Cr |

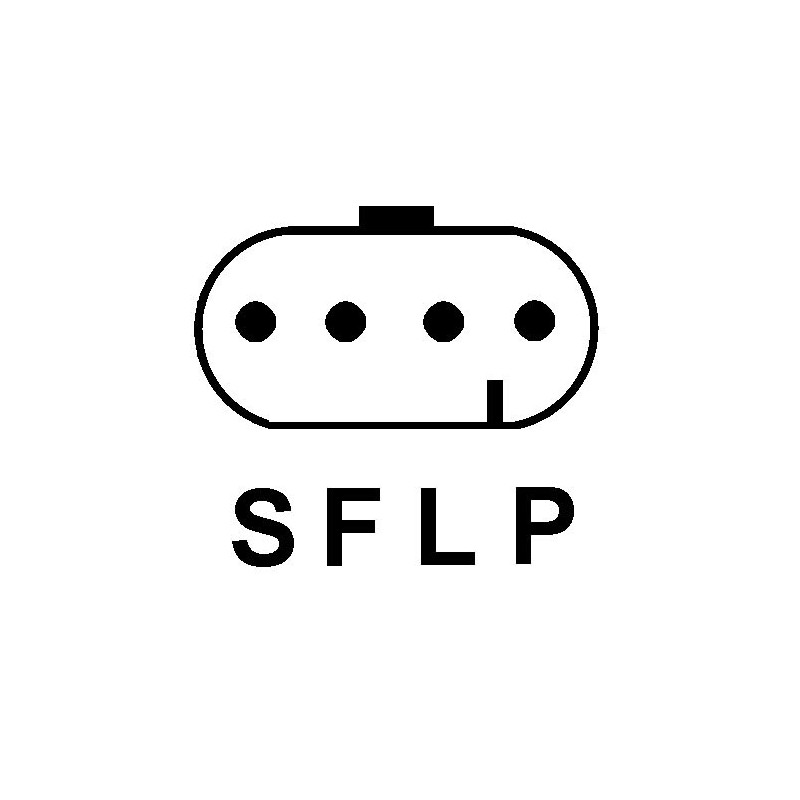

| O | Plug n° 1 | pl187 |
| Q | Tipo prise W | Plug |
| R | Total length mm | 176.00 |
generic brand
Used onon :
CHEVROLET
GMC
ISUZU
OLDSMOBILE
