Alternator replacing MITSUBISHI MD130329 / A3T03493ZC / A3T03493

Information:

Voltage 14

Amp 75

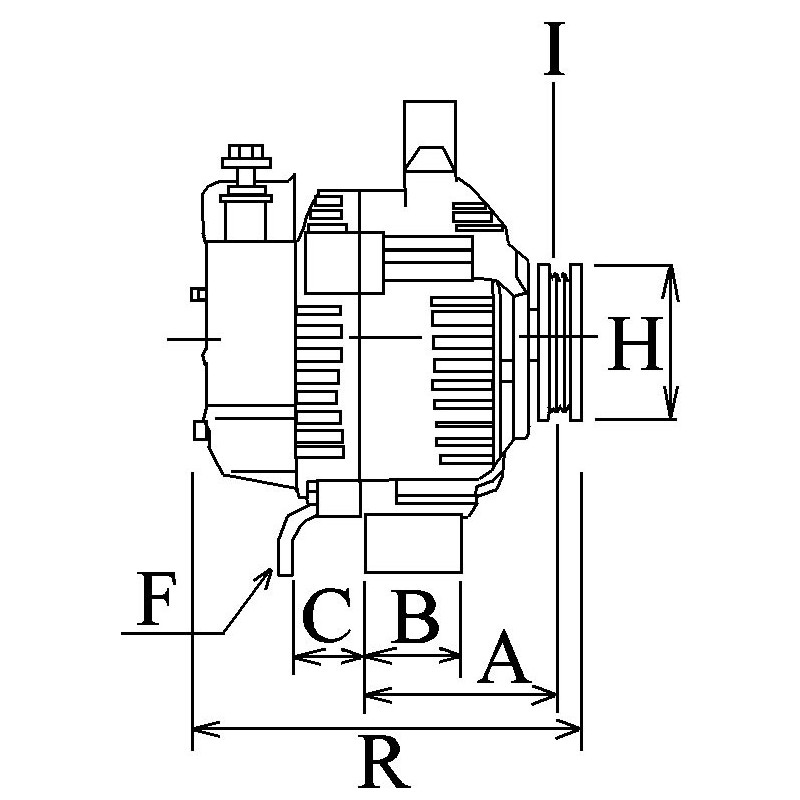

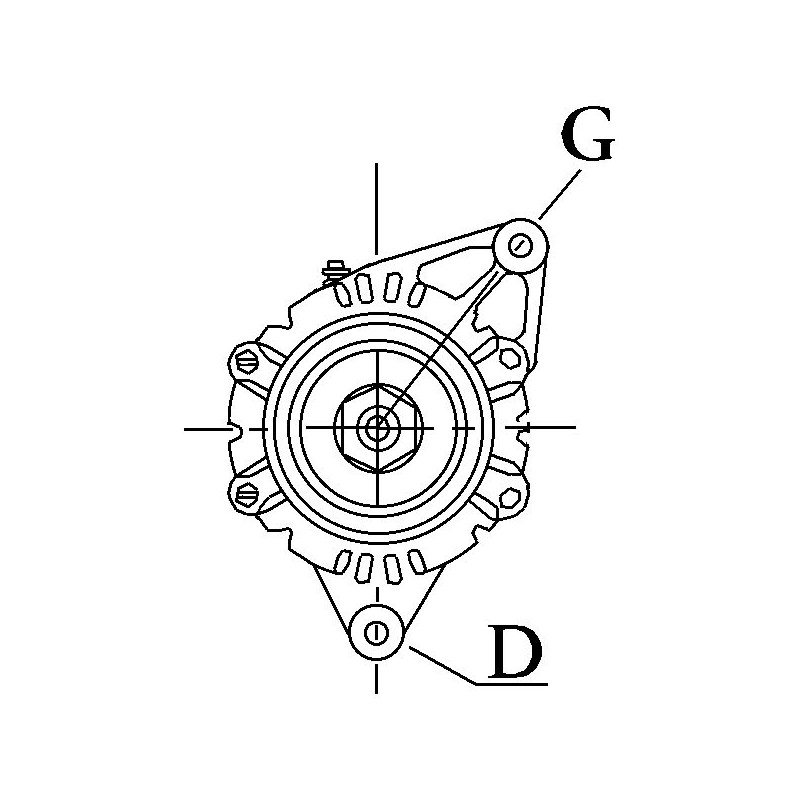

D = Bracket hole 8.50

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.25

E = Belt. adj. brackethole pos. 3

C = Mount. bracket dist 77.60

H = Pulley dia. 64.50

A = Pulley dist. 35.00

Grooves/pulley 4

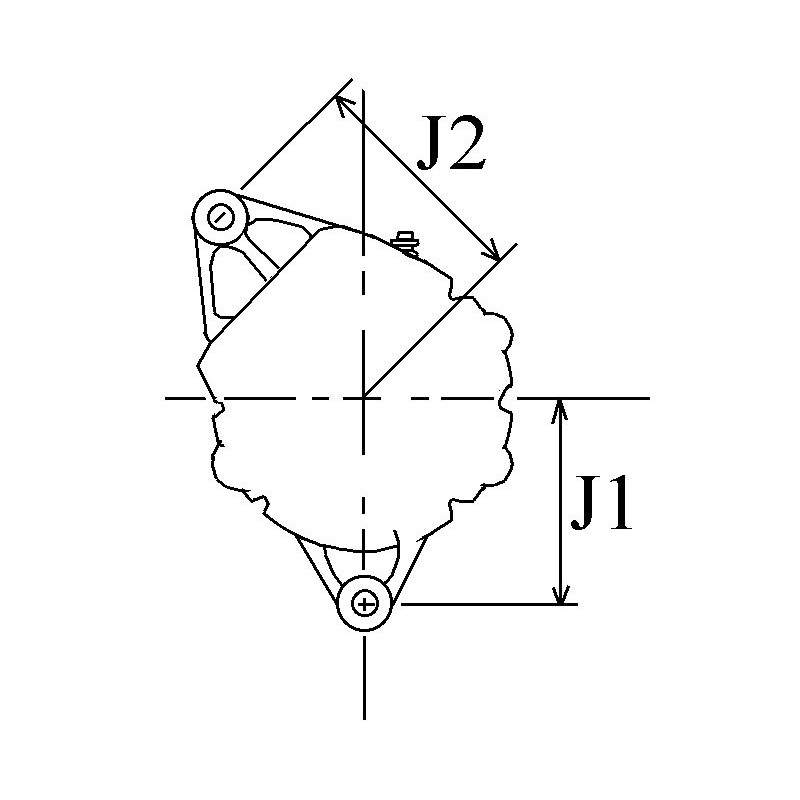

J = Radius 89.00

J = Radius 88.00

Position B + M6

Rotation Cr

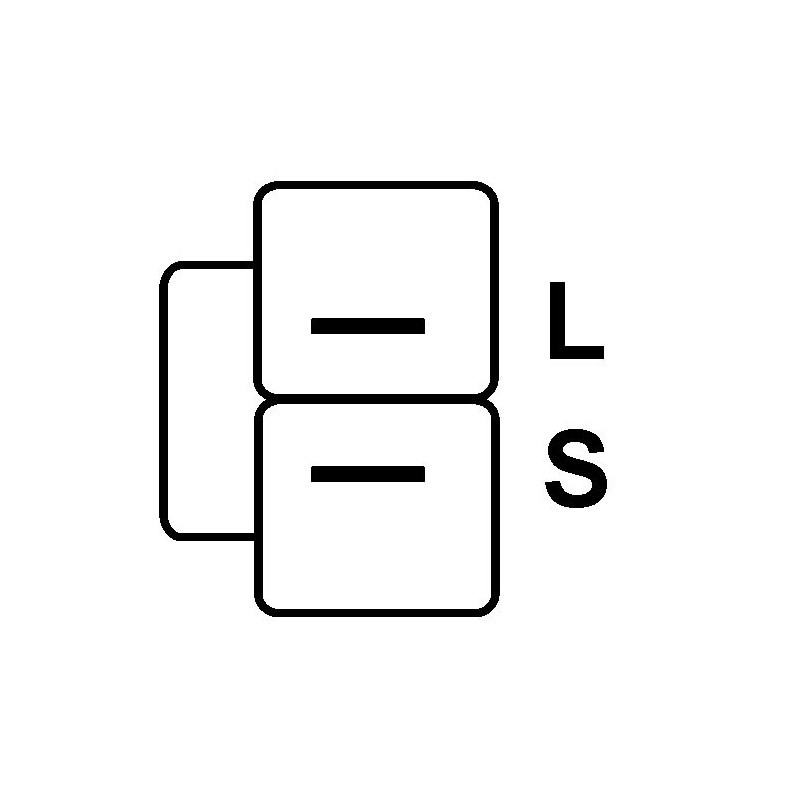

Plug no. 1 PL07

Fan If

Pulley Serpentine Pulley

R = Total length mm 159.50

= BOSCH 0986040511

= DELCO REMY DRA3146 / 10463807

= HELLA 8EL726379001

= Kia 37300-33000 / 37300-33010 / 37300-33013

37300-33030

= MITSUBISHI MD169683 / MD139839 / MD136839
MD136838 / MD133513 / MD133171 / MD130329
A3T03493ZC / A3T03493 / A003T03493ZC / MD169683 / A003T03492 A003T03471 /  A3T03492 / A3T03499 / A003T03493 / A003T03499 A3T03471

= VALEO TA000B33801 / TA000A34801 / M39589 / AB175020 / A000B0301

                           NO CORE EXCHANGE NEEDED E

                                               TWO YEARS WARRANTY
