Alternator replacing MITSUBISHI A3T45694 / A3T45693ZC / A3T45693

Information:

Voltage 14

Amp 90

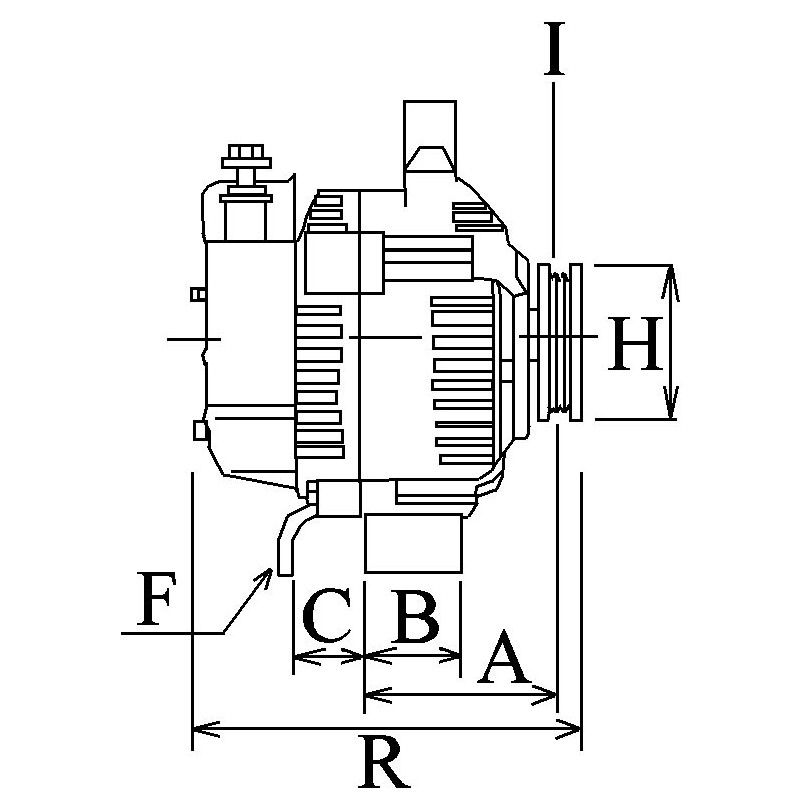

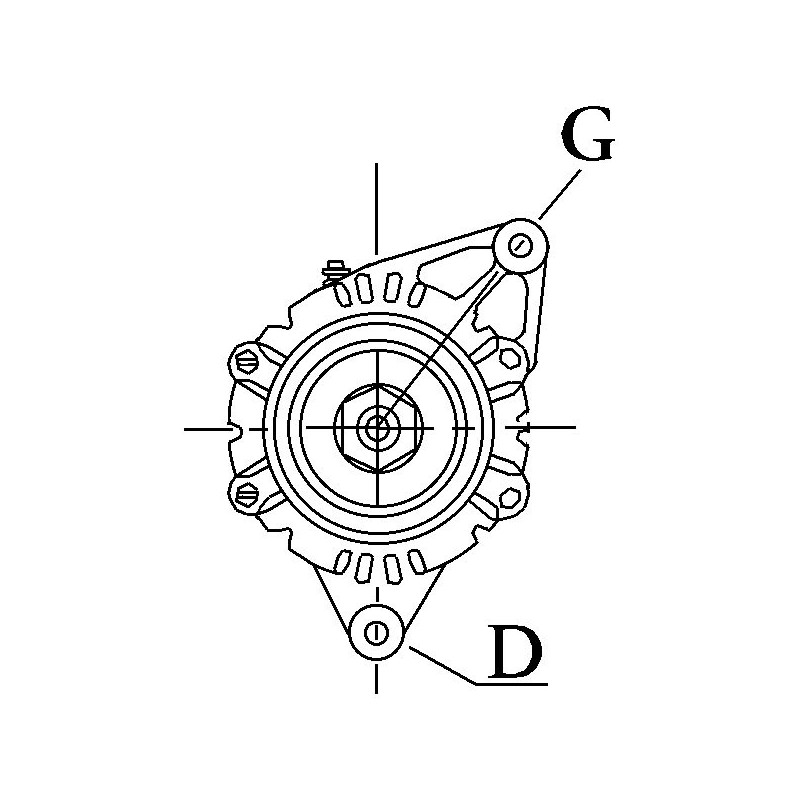

D = Bracket hole 8.50

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.40

E = Belt. adj. brackethole pos. 4

C = Mount. bracket dist 77.40

H = Pulley dia. 65.00

A = Pulley dist. 35.00

Grooves/pulley 4

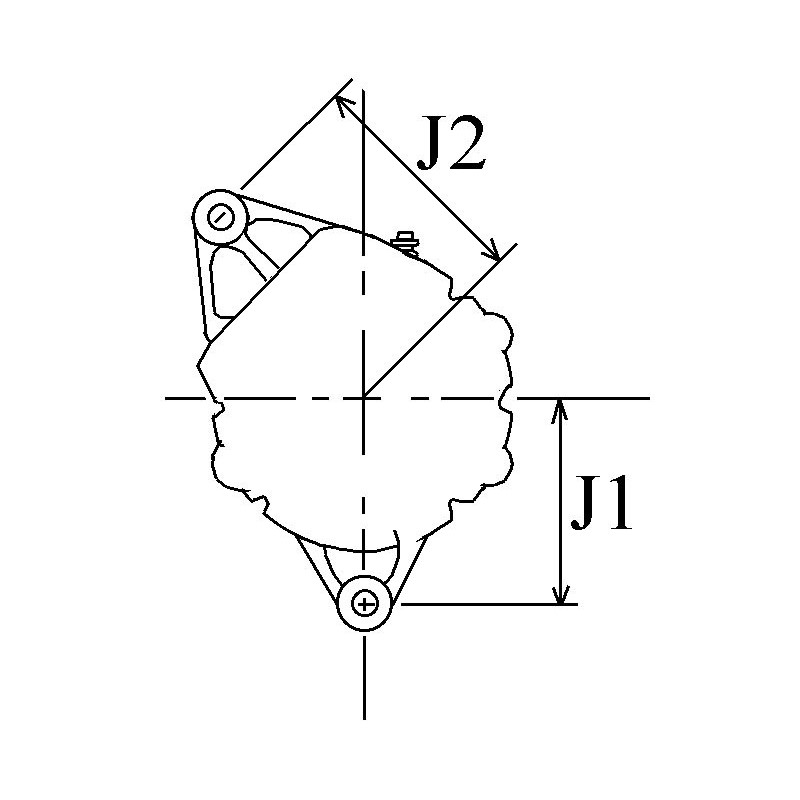

J = Radius 89.50

J = Radius 87.50

Position B + M6

Rotation Cr

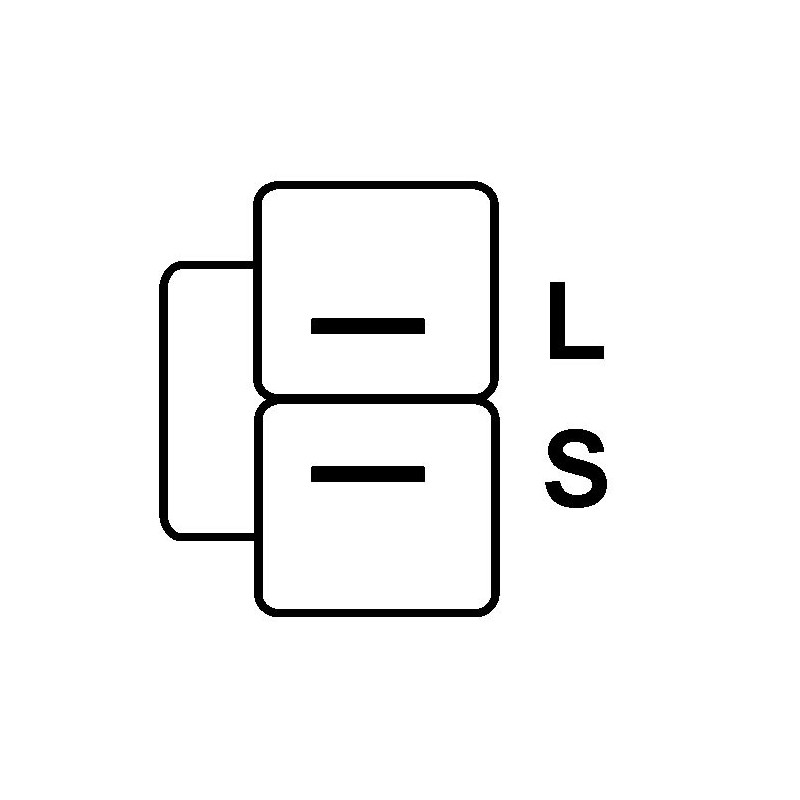

Plug no. 1 PL07

Fan If

Pulley Serpentine Pulley

R = Total length mm 160.00

= BOSCH 0986049900

= DELCO REMY DRA3185

= HELLA 8EL730067001

= HYUNDAI 37300-33100 / 37300-33101 / 37300-33103

= Kia 3730032134  / 3730032800 / 3730033100
3730033101  / 3730033102 / 3730033103
3730033110

= MITSUBISHI MD153843 / MD149750 / MD140750 / md153357
A3T45694 / A3T45693ZC / A3T45693 /  A3T45691

A003T45691  / A003T45693 / A003T45693ZC / A003T45694

= VALEO M39882 /  AB190119 / AB190072 / AB190025 / A000B0441

                           NO CORE EXCHANGE NEEDED

                                               TWO YEARS WARRANTY
