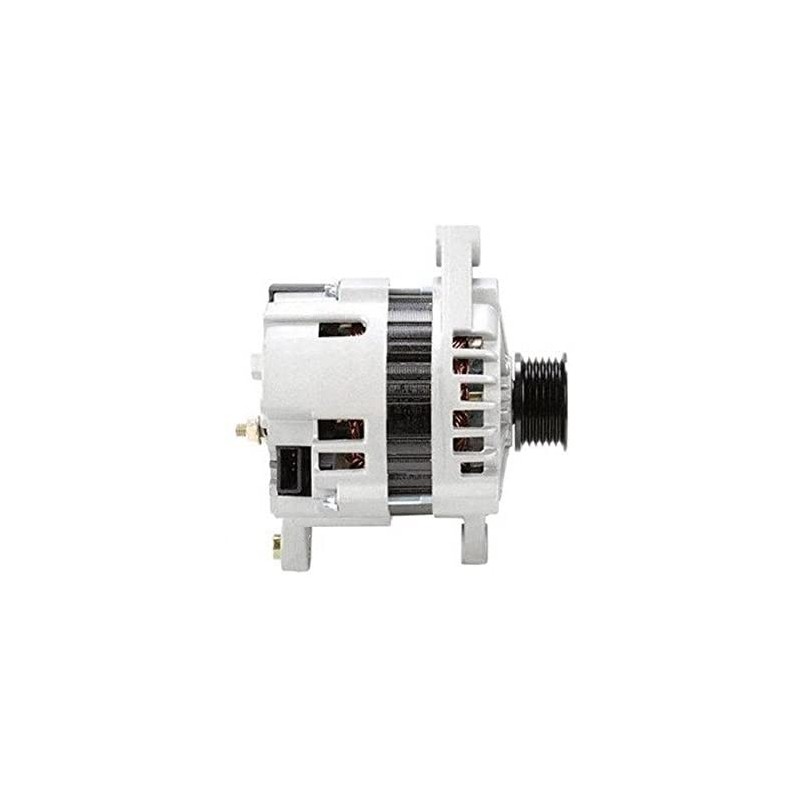

Alternator replacing 96190262 / 96258990 / 96288095 for Daewoo
Replacing | |
|---|---|
| 219138 | Remy (delco) |
| 219138 | Valeo |
| 219202 | Valeo |
| 219202 | Remy (delco) |
| 96190262 | Daewoo |
| 96258990 | Daewoo |
| 96288095 | Daewoo |
| 96404010 | Remy (delco) |
| CA1672IR | HC-PARTS |
More info

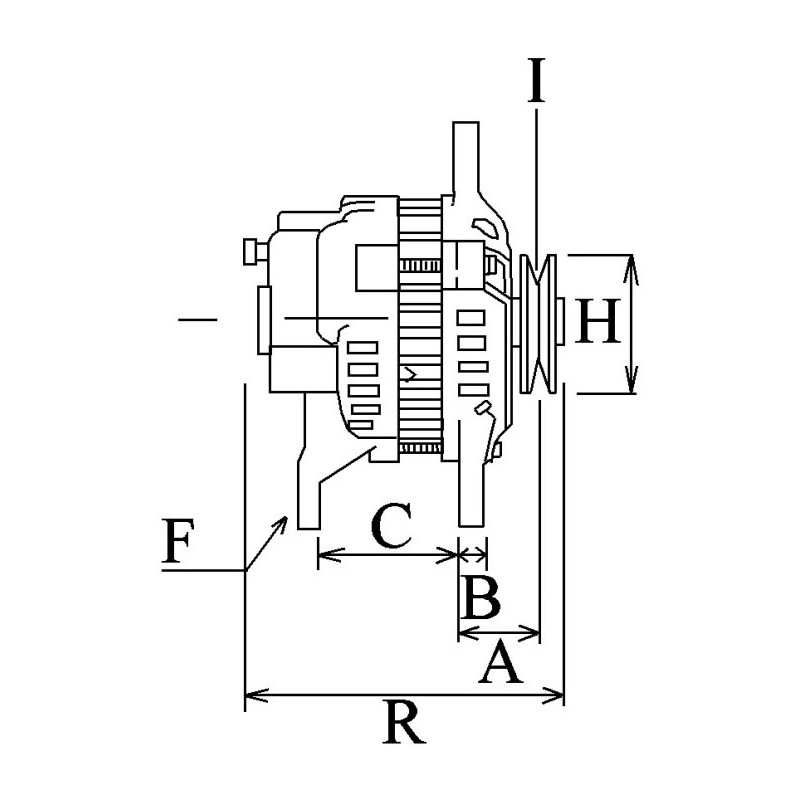

Physical information | ||
|---|---|---|
| A | Pulley dist. | 36.00 |
| B | Width/holder arm | 13.00 |
| C | Mount. bracket dist. | 81.50 |
| D | Bracket hole | 8.30 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | M8x1.25 |
| H | Pulley dia. | 50.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 78.45 |
| J | Radius 2 | 86.50 |
| K | B+ | M8 |
| K | Position/B+ in min. | 40 |
| N | Rotation | CW |

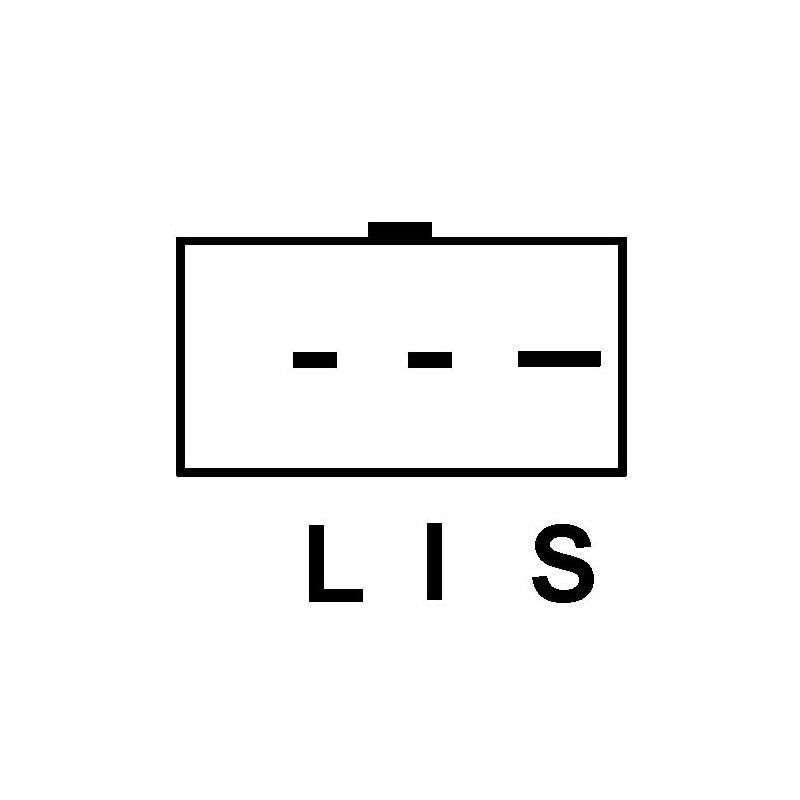

| O | Plug no. 1 | PL62 |
| R | Total length mm | 183.50 |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 85 | |
Catalogue information | ||
|---|---|---|
| Pulley | SP | |
| Regulator type | IR | |
| Vac. pump | No | |
| Servicing | Daewoo | |
generic brand
