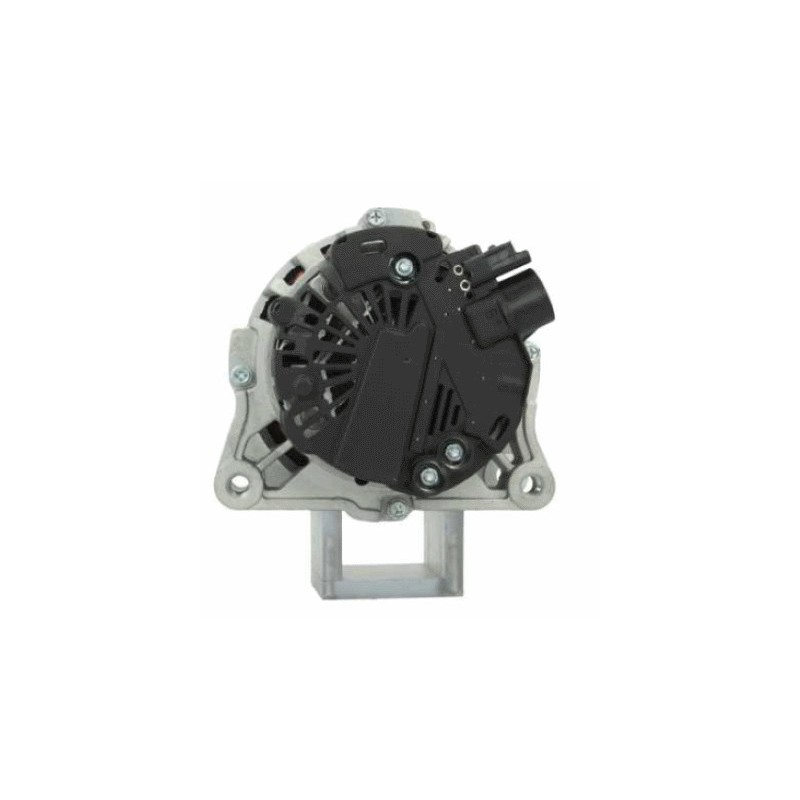

Alternator replacing VALEO TG9B066 / TG9B044 / TG9B026

Information :

Rotation Cr

Amp 90

Voltage 14

D = Bracket hole 10.50

G = Belt. adj. bracket hole 10.50

B = Width/holder arm 21.70

E = Belt. adj. brackethole pos. 10

C = Mount. bracket dist 45.90

H = Pulley dia. 54.00

A = Pulley dist. 42.50

Grooves/pulley 6

J = Radius 89.00

J = Radius 89.00

Position B + M8

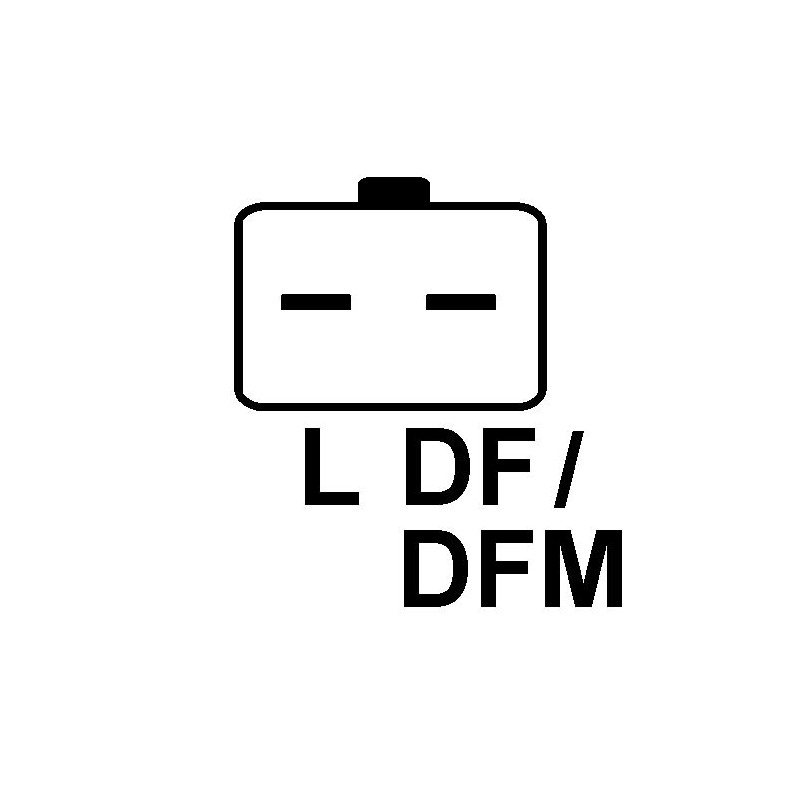

Plug no. 1 PL72

Bracket hole M10

Fan If

Pulley Serpentine Pulley/ Freewheel pulley

Belt. adj. bracket hole M10

R = Total length mm 150.40

generic brand

= BOSCH 0986080190

= DELCO REMY DRA0067 / DRA0205

= FIAT 71786195 / 9649611280

= HELLA 8EL738211561

= PEUGEOT 9649611280 / 9655296080 / 9655733780 / 9655858280

5207H0 / 5702G9 / 5702H0 / 5702HO / 5705CS

= VALEO TG9B066 / TG9B044 / TG9B026 / TG10B024 / TG10B013 /SG10B048 2607212 / 2543524A / 2543524 / 2543522A / 2543522 / 2543210A

2543210 / 2542938A / 2542938 / 2542928A / 2542928 / 437550 / 437584

fits PEUGEOT :

- 207 1,4 D

- Boxer 2,0 and 2,2 D

- Expert 1,6 D

- Partner 1,6 and 1,9 D

fits CITROEN  :

- Berlingo 1,6 D

- Jumper 2,0 and 2,2 D

fits FIAT :

- Ducato 2,0 D

                                                       NO CORE EXCHANGE NEEDED

                                                                TWO YEARS WARRANTY
