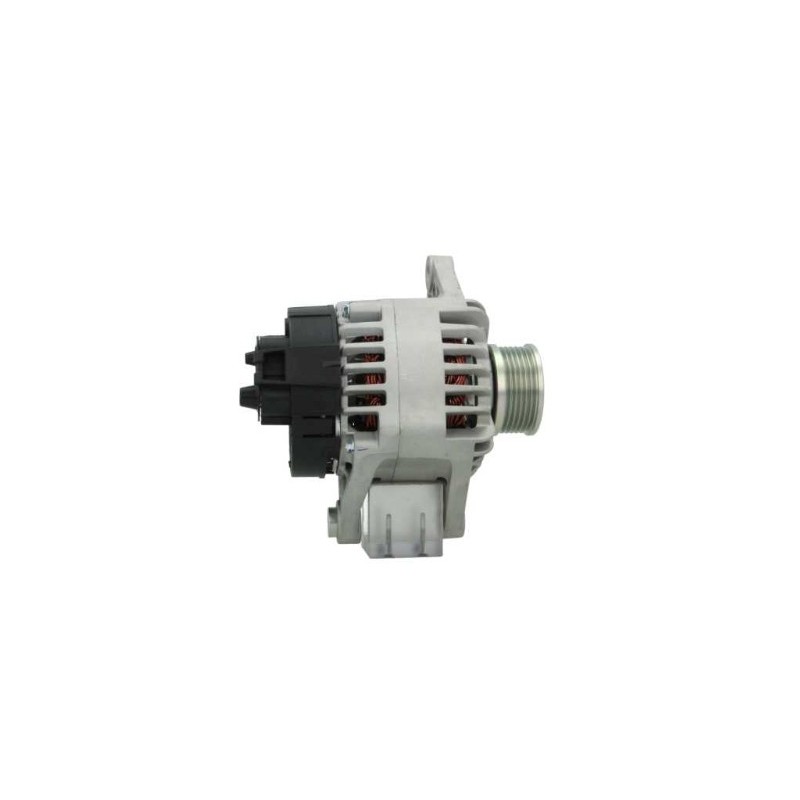

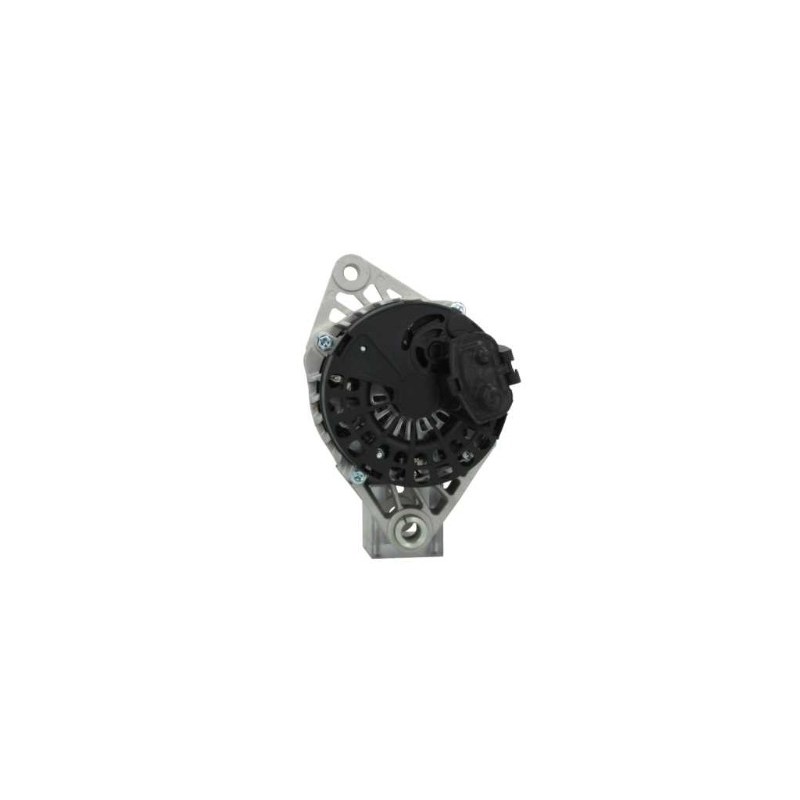

Alternator NEW replacing DENSO 101210-1510 / MAGNETI MARELLI 63321497 / 63321804
Alternator NEW replacing :
DENSO 101210-1510
ALFA ROMEO 46544329 / 46765838 / 46782213 / 60816045
= FIAT : 60816557 / 60816045 / 51859053
= MAGNETI MARELLI : 63321497 / 63321804 / 63321805 / 63321806
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 100 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 12.20 |
| G | Belt. adj. bracket hole | 10.20 |
| B | Width/holder arm | 22.20 |
| E | Belt. adj. brackethole pos. | 3 |
| C | Mount. bracket dist | 54.75 |
| H | Pulley dia. | 60.50 |
| A | Pulley dist. | 44.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |

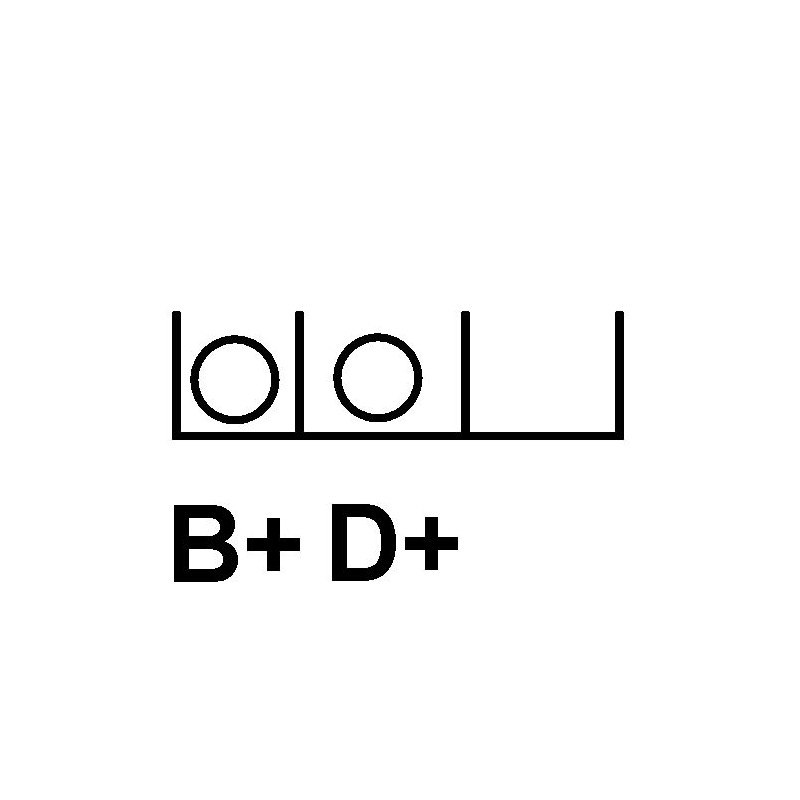

| k | Position B + | M8 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL106 |
Replacing | |
|---|---|
| 101210-1510 | DENSO |
| 46544329 | ALFA ROMEO |
| 46544329 | FIAT |
| 46763533 | FIAT |
| 46763534 | FIAT |
| 46765838 | ALFA ROMEO |
| 46765838 | FIAT |
| 46774430 | FIAT |
| 46782213 | ALFA ROMEO |
| 46782213 | FIAT |
| 51859053 | FIAT |
| 60816045 | ALFA ROMEO |
| 60816045 | FIAT |
| 60816557 | ALFA ROMEO |
| 60816557 | FIAT |
| 63321497 | MAGNETI MARELLI |
| 63321501 | MAGNETI MARELLI |
| 63321804 | MAGNETI MARELLI |
| 63321805 | MAGNETI MARELLI |
| 63321806 | MAGNETI MARELLI |
| 63321826 | MAGNETI MARELLI |
| 63321826 | MAKO |
| ca1558ir | HC-PARTS |
Generic brand
fits:
| Maker | Model | Version | Year | Engine | Informations techniques |
|---|---|---|---|---|---|
| ALFA ROMEO | Alfa 145 1.9 JTD | 930 | 1998-2000 | 1910ccm AR32302 | 100AMP |
| ALFA ROMEO | Alfa 146 1.9 JTD | 930 | 1998-2000 | 1910ccm AR32302 | 100AMP |
| ALFA ROMEO | Alfa 147 1.9 JTDM 16V | 937 | 2005- | 1910ccm 937A5000 | 100AMP |
| ALFA ROMEO | Alfa 147 1.9 JTDM 16V | 937 | 2008- | 1910ccm 937A6000 | 100AMP |
| ALFA ROMEO | Alfa 147 1.9 JTDM 16V | 937 | 2003- | 1910ccm 937A4000 | 100AMP |
| ALFA ROMEO | Alfa 147 1.9 JTDM 8V | 937 | 2005- | 1910ccm 937A3000 | 100AMP |
| ALFA ROMEO | Alfa 156 1.9 JTD 16V | 932 | 2002-2005 | 1910ccm 192A5000 | 100AMP |
| ALFA ROMEO | Alfa 156 1.9 JTD 8V | 932 | 2000-2001 | 1910ccm AR37101 | 100AMP |
| ALFA ROMEO | Alfa 156 1.9 JTD 8V | 932 | 2002-2006 | 1910ccm 937A2000 | 100AMP |
| ALFA ROMEO | Alfa GT 1.9 JTD | 937 | 2003- | 1910ccm 937A5000 | 100AMP |
| ALFA ROMEO | Alfa GT 1.9 JTD | 937 | 2008- | 1910ccm 937A6000 | 100AMP |
| FIAT | Brava 1.9 JTD | 182 | 2000-2001 | 1910ccm 182B9.000 | AC |
| FIAT | Brava 1.9 JTD 105 | 182 | 2001-2001 | 1910ccm 182B4.000 | AC |
| FIAT | Bravo I 1.9 JTD | 182 | 2000-2001 | 1910ccm 182B9.000 | 100AMP |
| FIAT | Bravo I 1.9 JTD 105 | 182 | 2001-2001 | 1910ccm 182B4.000 | AC |
| FIAT | Doblò I 1.9 JTD | 119223 | 2001-2004 | 1910ccm 182B9.000 | 100AMP |
| FIAT | Doblò I 1.9 JTD | 119223 | 2002-2005 | 1910ccm 223B1.000 223A7.000 | AC |
| FIAT | Idea 1.9 JTD | 2004- | 1910ccm 188B2.000 | 100AMP | |
| FIAT | Marea 1.9 JTD | 185 | 2000-2002 | 1910ccm 186A6.000 | 100AMP |
| FIAT | Marea 1.9 JTD | 185 | 1999-2002 | 1910ccm 182B4.000 | 100AMP |
| FIAT | Multipla 1.9 JTD | 186 | 2002-2006 | 1910ccm 186A8.000 | 100AMP |
| FIAT | Multipla 1.9 JTD | 186 | 2001-2000 | 1910ccm 182B4.000 | AC |
| FIAT | Multipla 1.9 JTD | 186 | 2000-2002 | 1910ccm 186A6.000 | AC |
| FIAT | Multipla 1.9 JTD | 186 | 2006-2010 | 1910ccm 186A9.000 | AC |
| FIAT | Punto II 1.9 JTD | 188 | 1999-2003 | 1910ccm 188A2.000 188A7.000 | AC |
| FIAT | Stilo 1.9 D Multijet | 192 | 2005- | 1910ccm 192A8.000 192A9.000 | 100AMP |
| FIAT | Stilo 1.9 JTD | 192 | 2001- | 1910ccm 192A1.000 | 100AMP |
| FIAT | Stilo 1.9 JTD | 192 | 2004- | 1910ccm 192A5.000 | 100AMP |
| FIAT | Stilo 1.9 JTD | 192 | 2001- | 1910ccm 192A3.000 | 100AMP |
| LANCIA | Lybra 1.9 JTD | 839 | 1999-2000 | 1910ccm AR32302 AR37101 937A2.000 | 100AMP |
| LANCIA | Musa 1.9 D Mulitjet | 350 | 2004- | 1910ccm 188B2.000 | 100AMP |
