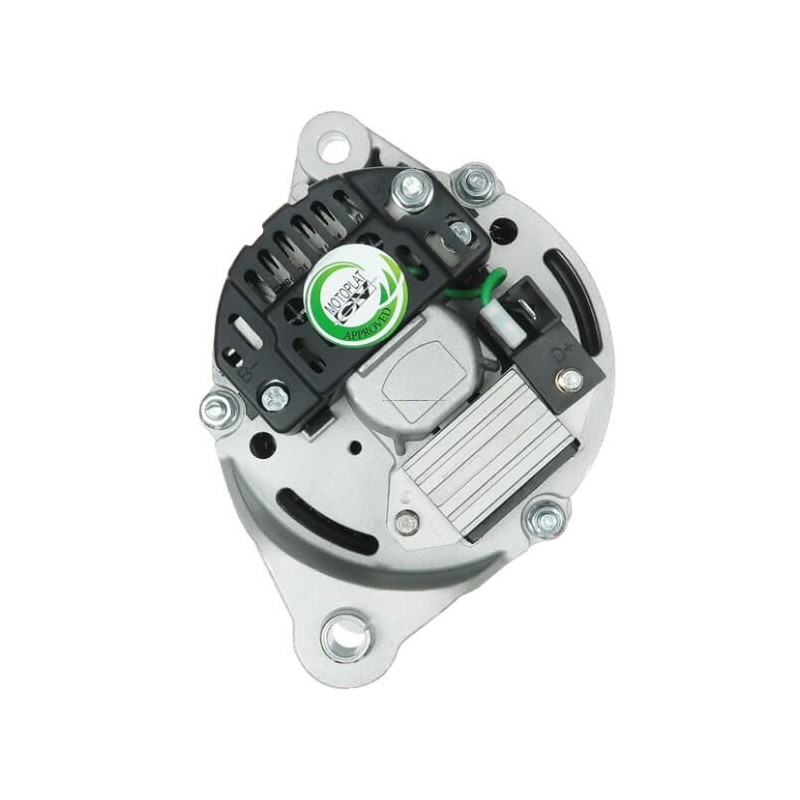

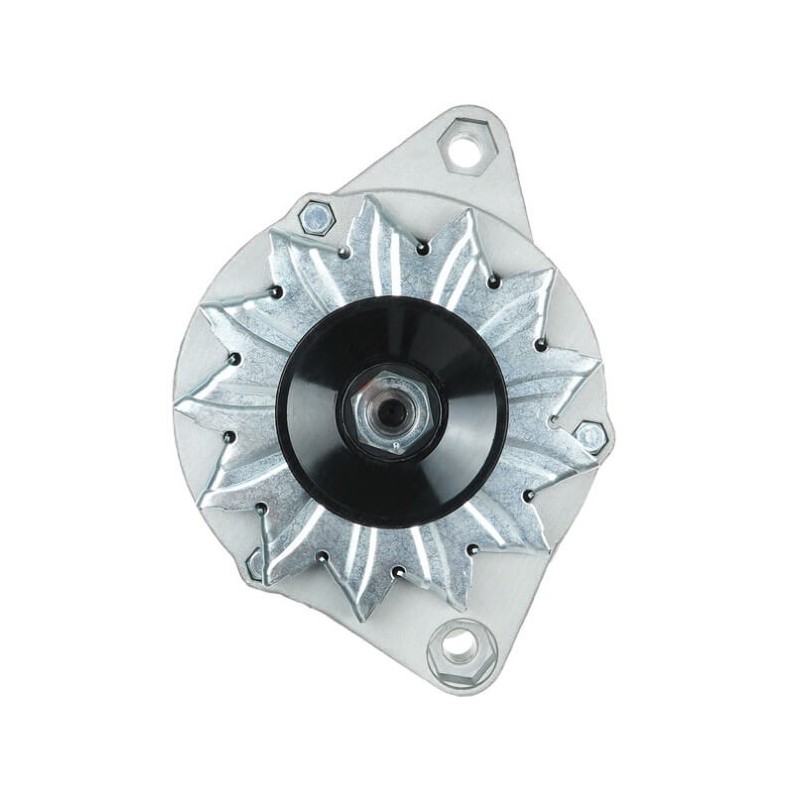

Alternator replacing 0120488140 / 0986034480 / 0986034640
Alternator replacing 0120488140 / 0986034480 / 0986034640
Alternator replacing 0120488140 / 0986034480 / 0986034640
Alternator replacing 0120488140 / 0986034480 / 0986034640
Previous
Next
Alternator replacing 0120488140 / 0986034480 / 0986034640
Alternator replacing 0120488140 / 0986034480 / 0986034640
Alternator replacing 0120488140 / 0986034480 / 0986034640
Alternator replacing 0120488140 / 0986034480 / 0986034640

Alternator replacing 0120488140 / 0986034480 / 0986034640

w111148

Replacing
0120488140 Bosch
0120488207 Bosch
0120488222 Bosch
0120488223 Bosch
0120488235 Bosch
0120488275 Bosch
0120489128 Bosch
0120489129 Bosch
0120489263 Bosch
0120489348 Bosch
0120489400 Bosch
0120489942 Bosch
0120489943 Bosch
063321068020 Mako
063321070000 Mako
Read more
€119.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Physical information
A Pulley dist. 52.00
B Width/holder arm 23.00
C Mount. bracket dist. 73.00
D Bracket hole 10.30
E Belt. adj. brackethole pos. 5
G Belt. adj. bracket hole 11.00
H Pulley dia. 68.25
I Grooves/pulley 1
J Radius 79.50
J Radius 2 87.50
K B+ M6
K Position/B+ in min. 58
L D+ Size 6.30
N Rotation CW
R Total length mm 165.50
Electrical information
Voltage 14
Amp 65

generic brand

Replacing
0120488140 Bosch
0120488207 Bosch
0120488222 Bosch
0120488223 Bosch
0120488235 Bosch
0120488275 Bosch
0120489128 Bosch
0120489129 Bosch
0120489263 Bosch
0120489348 Bosch
0120489400 Bosch
0120489942 Bosch
0120489943 Bosch
063321068020 Mako
063321070000 Mako
11.201.205 Iskra
11.201.406 Iskra
11.201.582 Iskra
283020.1 Elmot
4470266 Fiat
46231678 Fiat
46231682 Fiat
46231688 Fiat
46231689 Fiat
46231760 Fiat
54022420 lucas
5955503 Fiat
5955504 Fiat
63307604 Magneti Marelli
63307624 Magneti Marelli
63307634 Magneti Marelli
63320016 Magneti Marelli
63320035 Magneti Marelli
63320055 Magneti Marelli
63321007 Magneti Marelli
63321023 Magneti Marelli
63321068 Magneti Marelli
63321070 Magneti Marelli
63321510 Magneti Marelli
7547791 Fiat
7565559 Fiat
7580209 Fiat
7588791 Fiat
7596859 Fiat
7610362 Fiat
7651074 Fiat
7663140 Fiat
7665826 Fiat
7702247 Fiat
7715319 Fiat
77401410 Fiat
77523410 Fiat
77525410 Fiat
7810362 Fiat
9120080224 Bosch
943321023 Magneti Marelli
97054425 Fiat
A125-65B Elmot
A13E68 Valeo
CA254IR HC-PARTS
AAK1173 Iskra
AAK3530 Iskra
AAK4527 Iskra

for

Brand Model Typ Year
AUTOBIANCHI Y10 1.3 i.e. GT [146A5.046] 06.1989-10.1995
AUTOBIANCHI Y10 1.3 i.e. GT [156B.000] 06.1989-10.1995
FIAT Strada 1.1 [138C1.000] 05.1985-09.1987
FIAT Tipo 1.4 i.e. [160A1.046] 05.1989-04.1995
FIAT Tipo 1.4 i.e. [836A4.000] 05.1989-04.1995
FIAT Fiorino 1.5 i.e. [149C1.000] 05.1988-12.1993
FIAT Tipo 1.4 Selecta [160A1.000] 07.1987-12.1989
FIAT X-1/9 1.5 01.1981-01.1983
FIAT Tipo 1.4 Selecta [160A1.048] 07.1987-12.1989
FIAT Tipo 1.6 i.e. [159A3.046] 07.1990-01.1993
FIAT Elba 1.5 [149C1.000] 01.1992-12.1996
FIAT Strada 1.5 01.1981-01.1982
FIAT Strada 1.5 Custom 01.1981-01.1982
FIAT Regata 1.3 [138B2.000] 09.1983-07.1986
FIAT Regata 1.3 ES [149A3.000] 09.1983-07.1989
FIAT Regata 1.3 ES [149A7.000] 09.1983-07.1989
FIAT Regata 1.5 [138B3.000] 01.1984-04.1989
FIAT Regata 1.5 [149A5.000] 05.1985-12.1987
FIAT Regata 1.5 85 02.1984-08.1986
FIAT Regata 1.5 i.e. [138B3.048] 12.1983-07.1989
FIAT Regata 1.5 i.e. [138B3.048] 09.1984-07.1989
FIAT Regata 1.5 i.e. [138C3.048] 12.1983-07.1989
FIAT Regata 1.5 i.e. [138C3.048] 09.1984-07.1989
FIAT Tempra 1.4 i.e. [159A2.000] 03.1991-08.1996
FIAT Regata 1.5 Super [138B3.000] 09.1983-04.1985
FIAT Regata 1.6 [149A.000] 10.1983-06.1990
FIAT Tempra 1.6 [159A3.048] 04.1990-07.1996
FIAT Ritmo 1.3 [138A3.000] 01.1981-09.1982
FIAT Uno 1.3 i.e. Turbo [146A2.000] 04.1985-08.1989
FIAT Uno 1.3 i.e. Turbo [146A2.146] 01.1987-12.1987
FIAT Uno 1.3 i.e. Turbo [146A2.246] 09.1989-03.1991
FIAT Uno 1.4 i.e. Turbo [146A8.000] 12.1989-12.1996
FIAT Ritmo 1.5 [138B3.000] 01.1983-12.1987
FIAT Uno 1.4 S [160A1.048] 10.1988-06.2006
FIAT Ritmo 1.5 [149A5.000] 08.1985-05.1987
FIAT Uno 1.5 i.e. [138C2.048] 10.1985-12.1993
FIAT Uno 1.5 i.e. [149C1.000] 10.1985-12.1993
FIAT Ritmo 1.5 Bertone [138A4.000] 01.1980-07.1989
FIAT Ritmo 1.5 Bertone [138B3.000] 03.1983-12.1986
LANCIA Delta 1.5 [831A1.000] 09.1979-12.1992
LANCIA Delta 1.5 [831B1.000] 09.1979-12.1992
LANCIA Prisma 1.5 [138C2.048] 09.1985-02.1992
LANCIA Prisma 1.5 [831A1.000] 01.1983-04.1986
LANCIA Prisma 1.5 [831B1.000] 05.1986-07.1989
LANCIA Prisma 1.5 [831B1.048] 09.1985-02.1992
LANCIA Prisma 1.6 [831A4.000] 01.1983-04.1986
LANCIA Y10 1.3 i.e. Fire [146A5.046] 02.1989-12.1995
LANCIA Y10 1.3 i.e. Fire [156B.000] 02.1989-12.1995
ZASTAVA 101 1.3 1100 [128AR000] 10.1981-12.1993
ZASTAVA Yugo 1.3 [13E.3.064] 03.1991-11.2008
ZASTAVA Yugo 1.3 65 EFi [13E1.064] 07.1981-06.1995
ZASTAVA Yugo 1.4 Florida [160A1.000] 10.1988-11.2008
ZASTAVA Yugo 1.4 Florida [160A1.000] 10.1991-06.1995
ZASTAVA Yugo 1.6 Florida [149A.000] 08.1989-06.1995
