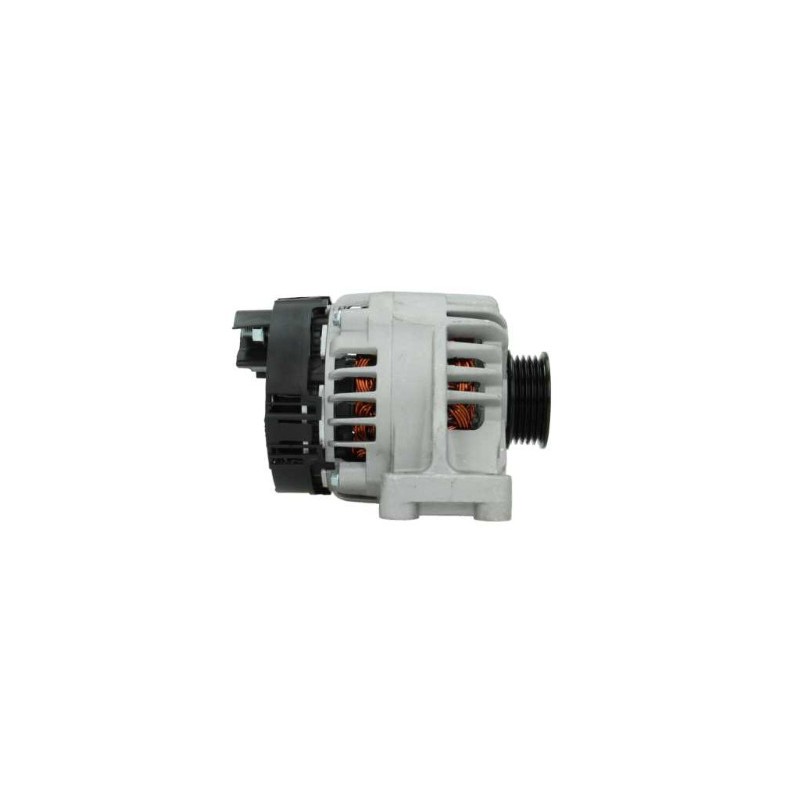

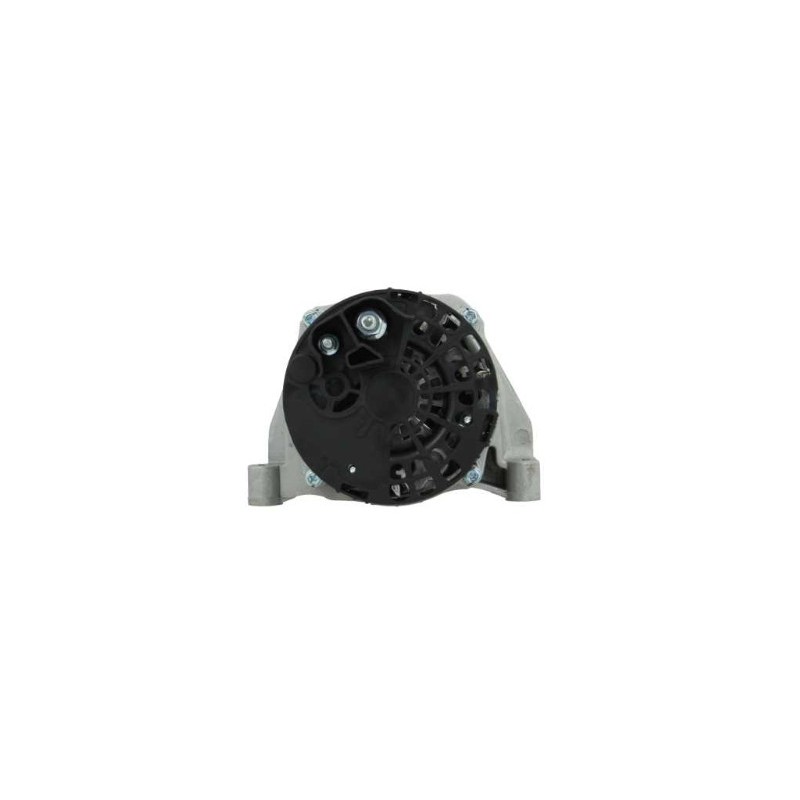

Alternator replacing DENSO 102211-8450 / 102211-8451 / 102211-8470 / 102211-8471
Alternator replacing DENSO 102211-8450 / 102211-8451 / 102211-8470 / 102211-8471 / DAN519 / DAN1039
FIAT 46554404 / 46748357 / 51709131 / 51714791 / 51859038
FORD 1535437 / 1673521
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 85 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | 8.60 |
| B | Width/holder arm | 24.20 |
| E | Belt. adj. brackethole pos. | 5 |
| C | Mount. bracket dist | 51.00 |
| H | Pulley dia. | 54.00 |
| A | Pulley dist. | 16.30 |
| i | Grooves/pulley | 5 |
| j | Radius | 96.00 |
| j | Radius 2 | 97.00 |
| k | Position B + | M8 |
| n | Rotation | CW |
| o | Plug no. 1 | PL_NA |
| R | Total length mm | 184.50 |
Replacing | |
|---|---|
| 102211-8450 | DENSO |
| 102211-8451 | DENSO |
| 102211-8470 | DENSO |
| 102211-8471 | DENSO |
| 1535437 | FORD |
| 1673521 | FORD |
| 46554404 | FIAT |
| 46748357 | FIAT |
| 51709131 | FIAT |
| 51714791 | FIAT |
| 51859038 | FIAT |
| 63321765 | MAGNETI MARELLI |
| 63321775 | MAGNETI MARELLI |
| 63377013 | MAGNETI MARELLI |
| 9s5110346ba | FORD |
| 9s5110346bb | FORD |
| ca1742ir | HC-PARTS |
| 1022118450 |
| 1022118451 |
| 1022118470 |
| 1022118471 |
| 1535437 |
| 1673521 |
| 440489 |
| 46554404 |
| 46748357 |
| 505560090 |
| 51709131 |
| 51714791 |
| 51859038 |
| 63377010 |
| 63377013 |
| 71721204 |
| 71783564 |
| 71794079 |
| 9S5110346BA |
| 9S5110346BB |
| ALT4234 |
| DAN1039 |
| DAN519 |
| F042A07028 |
| MAN7013 |
generic brand
Mounted on :
FIAT 500 / Brava / Doblo / Idea / Linea / Panda / Punto / Stilo / Tipo / Uno
LANCIA
| Ypsilon | Ypsilon | 1.2 | Unleaded | 2003 10 | - | 188A5.000 | 59 | 80 | Hayon | 1242 | 4 | |||
| Ypsilon | Ypsilon | 1.4 | Unleaded | 2003 10 | - | 843A1.000 | 70 | 95 | Hayon | 1368 | 4 | |||
| Ypsilon | Ypsilon | 1.2 | Unleaded | 2003 10 | - | 188A4.000 | 44 | 60 | Hayon | 1242 | 4 | |||
| Ypsilon | Ypsilon | 1.2 | Diesel | 2011 05 | - | 169A4.000 | 49 | 67 | Hayon | Bifuel | 1242 | 4 | 846 | |
| Ypsilon | Ypsilon | 1.2 | Bi-Fuel | 2011 05 | - | 169A4.000 | BiFuel | 51 | 69 | Hayon | 1242 | 4 | 312, 846 | |
| Y | Y | 1.2 | Unleaded | 2000 10 | 2003 09 | 188A5.000 | 16V | 59 | 80 | Hayon | 1242 | 4 | 840AG |
FIAT USA
| Siena | Siena | 1.2 | Unleaded | 2002 09 | 2004 02 | 178E8.011 | 49 | 67 | 1242 | 4 | 178_ | |||
| Siena | Siena | 1.0 | Bi-Fuel | 2000 03 | 2003 02 | 178D9.011 | 52 | 71 | 999 | 4 | 178_ |
FORD
| Ka | Ka | 1.2 | Unleaded | 2009 02 | - | FP4 (169A4.000) | 51 | 69 | Hayon | 1242 | 4 | RU8 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
