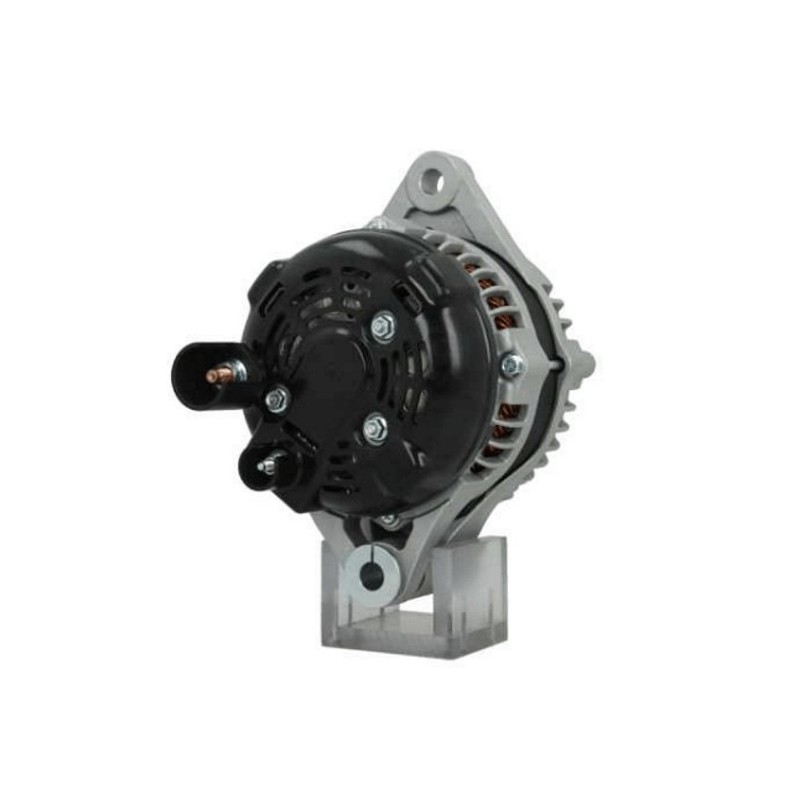

Alternator replacing 104210-1200 / 1202453 / 51808561 / 51943777
Replacing | ||
|---|---|---|
| 104210-1200 | Denso | |
| 1202453 | Opel | |
| 51808561 | Fiat | |
| 51943777 | Fiat | |
| 52003623 | Fiat | |
| 95511969 | Opel | |
| 95520425 | Opel | |
More info
Physical information | ||
|---|---|---|
| A | Pulley dist. | 51.50 |
| D | Bracket hole | 12.30 |
| E | Belt. adj. brackethole pos. | 59 |
| G | Belt. adj. bracket hole | 12.30 |
| H | Pulley dia. | 53.80 |
| I | Grooves/pulley | 6 |
| J | Radius | 90.00 |
| J | Radius 2 | 90.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 44 |
| N | Rotation | CW |
| O | Plug no. | PL_NA |
| R | Total length mm | 200.00 |
Catalogue information | ||
|---|---|---|
| Pulley | SP/FW | |
| Fan | IF | |
| Regulator type | IR | |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |
