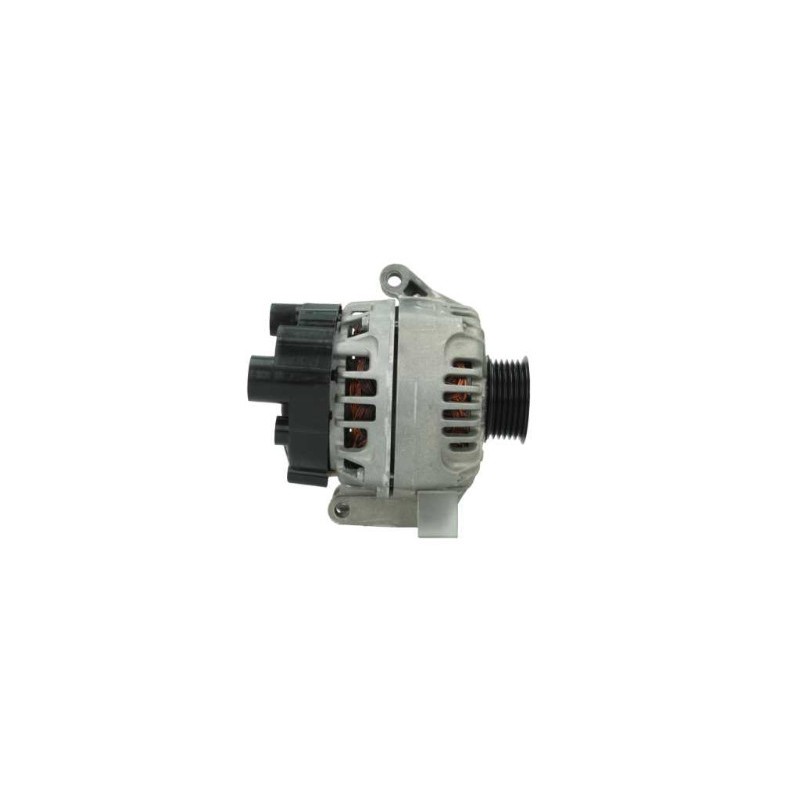

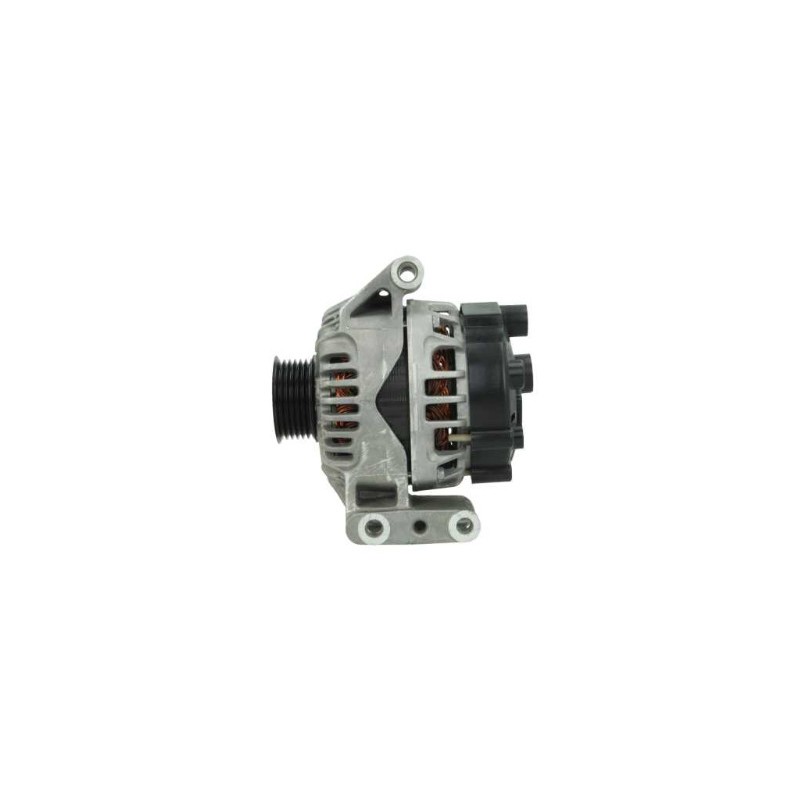

Alternator replacing VALEO TG9S014 / TG9S037 / 2543483A / 2543483 / 2543483C
Alternator NEW replacing VALEO TG9S014 / TG9S037 / 2543483A / 2543483 / 2543483C
= FIAT 51718494 / 51784848 / 51984051
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |
Generic brand

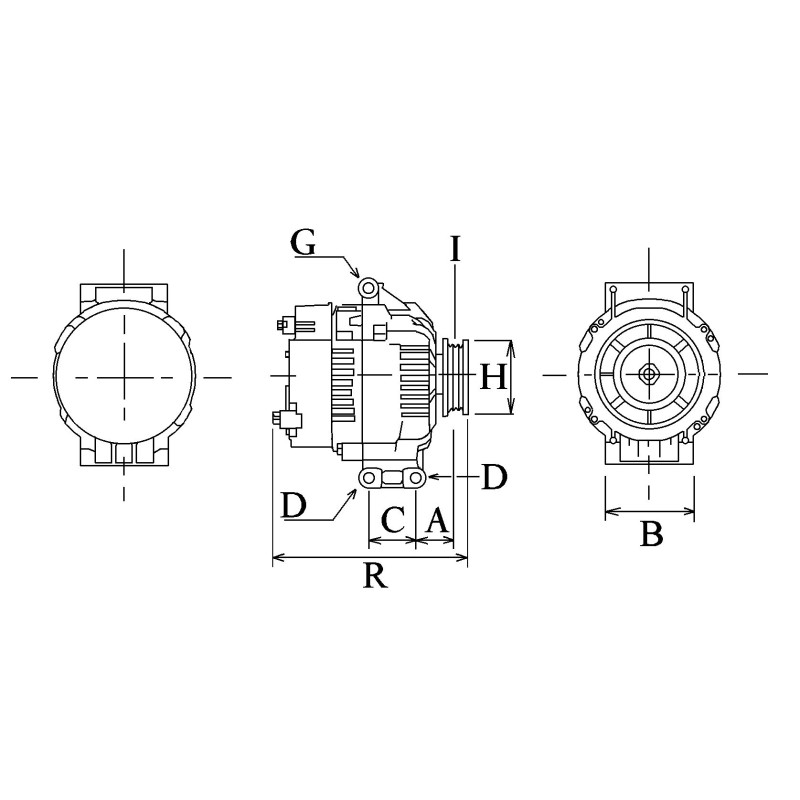

Physical Information | ||
|---|---|---|
| D | Bracket hole | 9.50 |
| G | Belt. adj. bracket hole | 9.50 |
| B | Width/holder arm | 64.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 55.50 |
| H | Pulley dia. | 55.00 |
| A | Pulley dist. | 41.00 |
| i | Grooves/pulley | 6 |
| k | Position B + | M8 |
| n | Rotation | CW |
| o | Plug no. 1 | PL_NA |
| D | Trou from fixation support 2 | 9.50 |
| R | Total length mm | 176.00 |
Replacing | |
|---|---|
| 2543483 | VALEO |
| 2543483A | VALEO |
| 2543483C | VALEO |
| 51718494 | FIAT |
| 51784848 | FIAT |
| 51984051 | FIAT |
| TG9S014 | VALEO |
| TG9S037 | VALEO |
Mounted on :
| Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Cylindres | Descrip- tion du type from | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Granfrom | Granfrom | 1.3 | Diesel | 2006 02 | 2013 06 | 199A2.000 | Multijet | 55 | 75 | Boîte/Trucksnette | 1248 | 4 | |
| Punto | Punto | 1.3 | Diesel | 2005 02 | 2009 10 | 188A9.000 | Multijet | 55 | 75 | Boîte/Trucksnette | 1248 | 4 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
