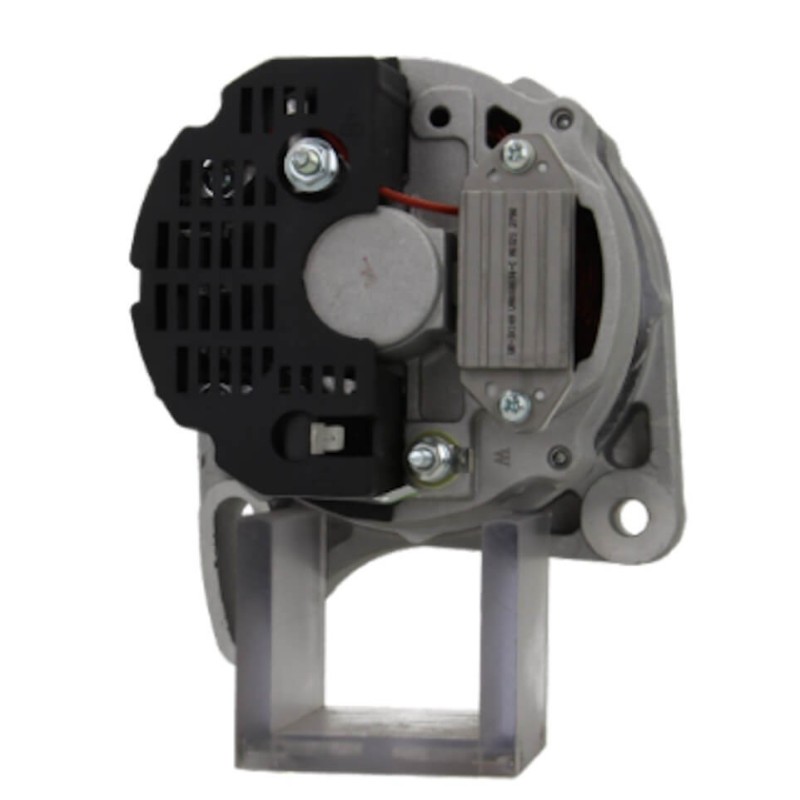

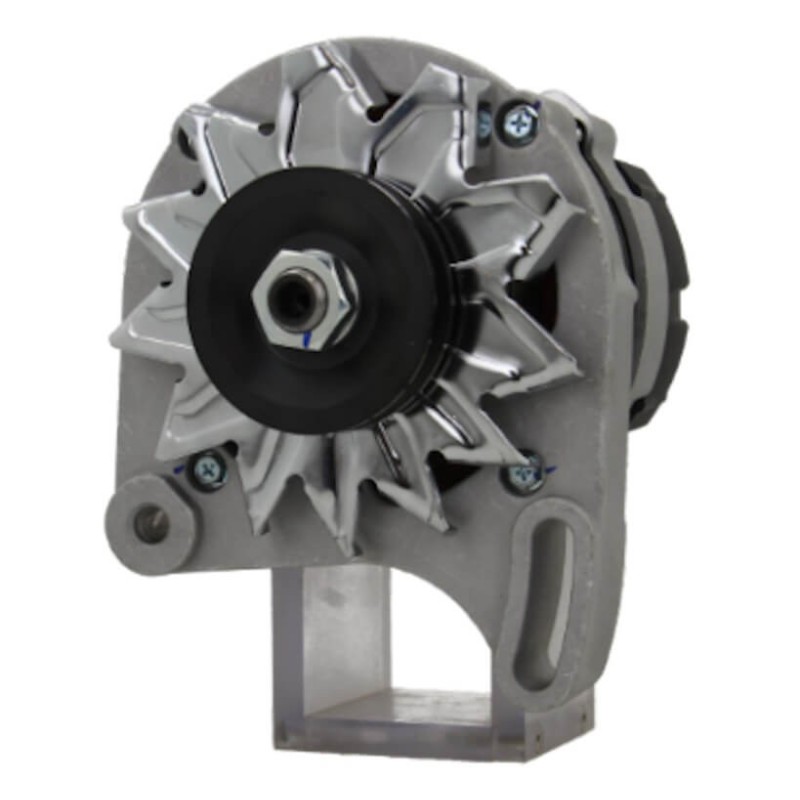

Alternator replacing ISKRA 11201711 / AAK4569 / MAGNETI MARELLI 63320111 / 63321190
Alternator replacing ISKRA 11201711 / AAK4569 / MAGNETI MARELLI 63320111 / 63321190
Alternator replacing ISKRA 11201711 / AAK4569 / MAGNETI MARELLI 63320111 / 63321190
Alternator replacing ISKRA 11201711 / AAK4569 / MAGNETI MARELLI 63320111 / 63321190
Alternator replacing ISKRA 11201711 / AAK4569 / MAGNETI MARELLI 63320111 / 63321190
Alternator replacing ISKRA 11201711 / AAK4569 / MAGNETI MARELLI 63320111 / 63321190
Previous
Next
Alternator replacing ISKRA 11201711 / AAK4569 / MAGNETI MARELLI 63320111 / 63321190
Alternator replacing ISKRA 11201711 / AAK4569 / MAGNETI MARELLI 63320111 / 63321190
Alternator replacing ISKRA 11201711 / AAK4569 / MAGNETI MARELLI 63320111 / 63321190
Alternator replacing ISKRA 11201711 / AAK4569 / MAGNETI MARELLI 63320111 / 63321190
Alternator replacing ISKRA 11201711 / AAK4569 / MAGNETI MARELLI 63320111 / 63321190
Alternator replacing ISKRA 11201711 / AAK4569 / MAGNETI MARELLI 63320111 / 63321190

Alternator replacing ISKRA 11201711 / AAK4569 / MAGNETI MARELLI 63320111 / 63321190

W113533

063320111010 MAGNETI MARELLI
063321136010 MAGNETI MARELLI
063321190010 MAGNETI MARELLI
11.201.711 ISKRA / LETRIKA
113533 CARGO
11572700 LOMBARDINI
12850977 DEUTZ
28-2716 ELSTOCK
2901239 VOLVO
554817RIM KUHNER
63320111 MAGNETI MARELLI
63321136 MAGNETI MARELLI
63321190 MAGNETI MARELLI

Read more
€118.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Références

0011572700

Lombardini

11201711

Mahle

113533

HC-Cargo

11572700

Lombardini

12850977

KHD

22579N

WAI

2901239

Volvo

63321136

Magneti Marelli

63321136010

Magneti Marelli

63321190

Magneti Marelli

72735020

Mahle

755005065

PSH

9002901239

Volvo

AAK4569

Mahle

ALT12106

Wood Auto

ALT20709

Wood Auto

DRA4076

Delco Remy

ED0011572700

Lombardini

F032113533

HC-Cargo

IA0711

Mahle

LEA1291

Lucas

LETIA0711

Wood Auto

LRA01579

Lucas

LRA1579

Lucas

MG21

Mahle

VOE9002901239

Volvo

WOOALT12106

Wood Auto

WOOALT20709

Wood Auto

Features

Information:

Electrical Information
Voltage 14
Amp 65

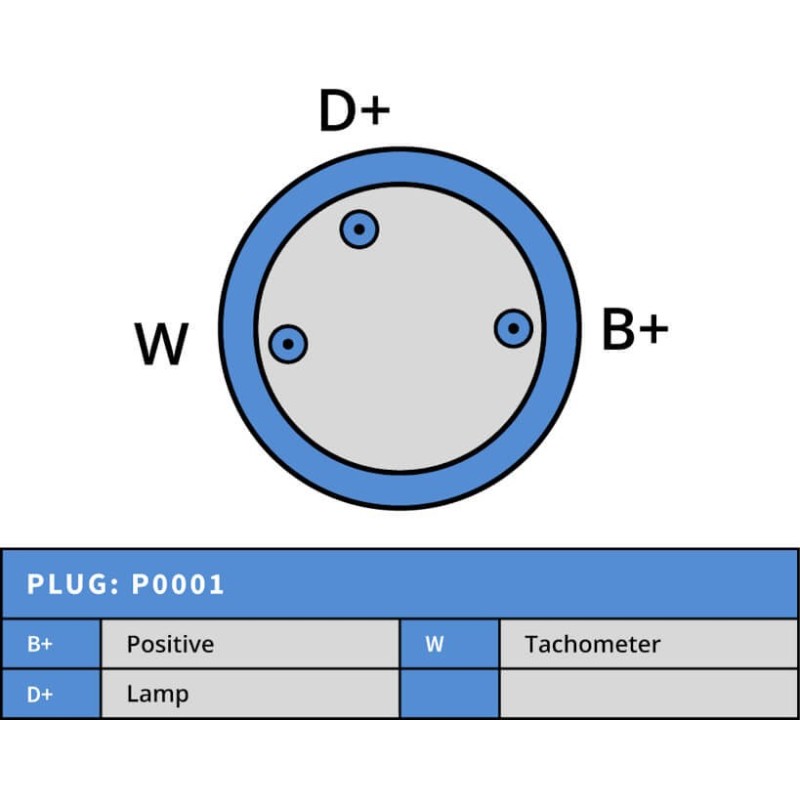

Plug type W
Physical Information
D Bracket hole 10.30
G Belt. adj. bracket hole 10.90
B Width/holder arm 31.80
E Belt. adj. brackethole pos. 17
H Pulley dia. 69.50
A Pulley dist. 52.00
i Grooves/pulley 1
j Radius 85.00
k Position B + M6
n Rotation Cr
o Plug no. 1 PL_NA
Q Typ prise W M5-6.3
R Total length mm 160.00

Replacing :

Generic brand

A-6379 DIXIE
AAK4569 ISKRA / LETRIKA
AEK1579 AUTOELECTRO
ALT12106 WOODAUTO
CAL21165AS CASCO
CAL21165GS CASCO
IA0711 ISKRA / LETRIKA
LRA01579 LUCAS
LRA1579 LUCAS
MAHMG21 WOODAUTO
MG21 MAHLE
UD13057A AS-PL
22579N WAI / TRANSPO
A9227 AS-PL
442383 LOGISTIK
ALT20709 WOODAUTO
554817RI KUHNER
755.005.065.311 PSH
755.005.065.090 PSH
72735020 MAHLE
ED0011572700 LOMBARDINI
20119561BN REAL
20119561OE REAL
2021165.0 SANDO
2021165.1 SANDO
ALT231650 SIOM
AI-90299 AINDE
CGB-82716 AINDE
DRA4076 DELCO

Used onnotamment on :

Brand Model Typ Year
BCS 300 1.0 [LDW1003]
BCS 400 1.4 [LDW1404]
BELARUS 320.4 1.6 [LDW1603] 01/01/13
BELARUS 320.5 1.6 [LDW1603] 01/01/13
BELARUS 422 2.1 [LDW2204] 01/01/13
BELARUS 622 2.1 [LDW2204T] 01/01/13
EUROMACCHINE GT 10 SE 0.7 [LDW702]
EUROMACCHINE GT 14 SE 1.0 [LDW1003]
EUROMACCHINE GT 16 SE 1.0 [LDW1003]
EUROMACCHINE GT 6 SE 0.7 [LDW702]
IVECO 4141 M48 2.1
IVECO 4241 M41 2.0
IVECO 4341 M60 2.2
IVECO 4021 M20 0.7
IVECO 4031 M30 1.0
IVECO 4041 M40 1.4
LOMBARDINI Engine 0.7 [LDW702M]
LOMBARDINI Engine 0.9 [LDW903]
LOMBARDINI Engine 1.3 [LDW1003M]
LOMBARDINI Engine 1.3 [LDW1003SD]
LOMBARDINI Engine 1.3 [LDW1303M] 01/01/93
LOMBARDINI Engine 1.4 [LDW1204]
LOMBARDINI Engine 1.4 [LDW1404M]
LOMBARDINI Engine 1.4 [LDW1404SD]
LOMBARDINI Engine 1.4 [LDW1404]
LOMBARDINI Engine 1.6 [LDW1503] 01/01/89
LOMBARDINI Engine 1.6 [LDW1603M]
LOMBARDINI Engine 1.6 [LDW1603SD]
LOMBARDINI Engine 1.6 [LDW1603]
LOMBARDINI Engine 2.0 [LDW1904M]
LOMBARDINI Engine 2.1 [LDW2004MT] 01/01/90
LOMBARDINI Engine 2.1 [LDW2004M] 01/01/90
LOMBARDINI Engine 2.1 [LDW2004] 01/01/90
LOMBARDINI Engine 2.2 [LDW2204MT]
LOMBARDINI Engine 2.2 [LDW2204M]
LOMBARDINI Engine 2.2 [LDW2204TSD]
