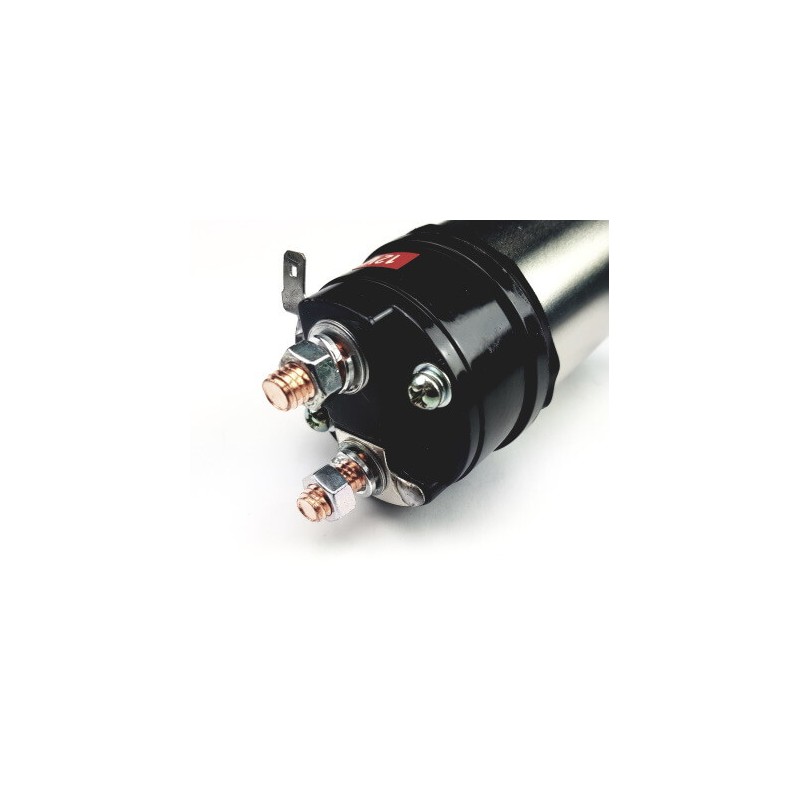

Solenoid for starter LUCAS M45G / 25593A / 25593B / 25594A
Solenoid for starter LUCAS :
LUCAS 26133, 26133A/J, 26133D, 26133K/R, 26146, 26147, 26147A/H, 26147J/M, 26151, 26152, 26152A/F, 26152H/M, 26153, 26166, 26169, 26196A ,26169E, 26169E/K, 26169J, 26173, 26173A, 26177, 26177B, 26177D, 26185, 26185D, 26187, 26187D, 26189, 26189A/F, 26189D, 26193, 26193A/D, 26193D, 26198, 26199, 26206, 26206A/B, 26206B, 26219, 26231, 26324, 26324A, 26325, 26325A
More info
Information:
Voltage 12
A = DE 55.10
B = Total length mm 172.50
Bolt Coil M8
D = DE/capot 57.65
E = DI capot 25.30
B+ M8
Height/B+ 15.75
Kl. 50/mm 6.30
Kl. 30h/mm 9.40
Height/kl. 30h 15.10
Bolt Coil l. 14.30
Height/kl. 50 12.55
No./terminals 3
generic brand
= Reference LUCAS :
76458 / 76474 / 76478 / 76490 / 76498 / 76538 / 76540 / 76712 / 76727 / 76748 / 76758 / 76759
76794 / 76808 / TOB100 / TOB151 / TOB152 / TOB153 / TOB154
= wai 66-9203 / 66-9203-5
= wood SND1412
for starter LUCAS :
25590
25593
25594
25597
26133
26133K / 26133R
26145
26145H / 26145N
26146
26146H / 26146N
26147
26147J / 26147M
26148
26148H / 26148N
26149
26149H / 26149M
26150
26150H / 26150M
26151
26151H / 26151N
26152
26152H / 26152M
26153
26153J / 26153N
26154
26154J / 26154N
26157
26157H / 26157M
26158
26158E / 26158K
26159
26159 / 26159J
26166
26166 / 26166L
26167
26167 / 26167L
26169
26169 / 26169K
26170
26170 / 26170M
26173
26173B / 26173F
26177
26178
26185
26186
26187
26189
26190
26192
26193
26196
26197
26198
26199
26200
26201
26206
26212
26219
26220
26231
26232
26244
26251
26255
26324
26325
26326
26391
