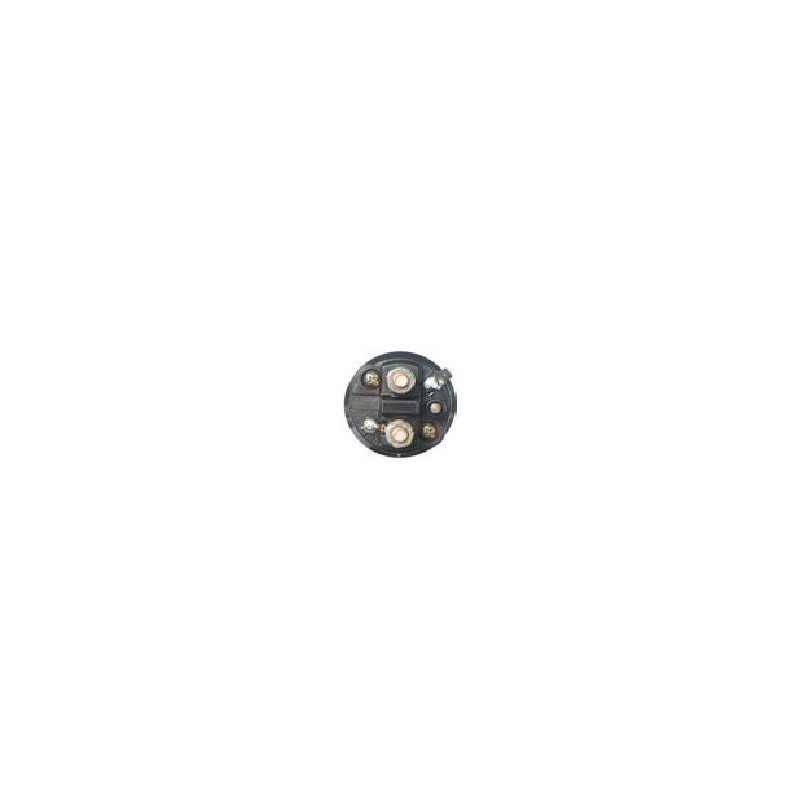

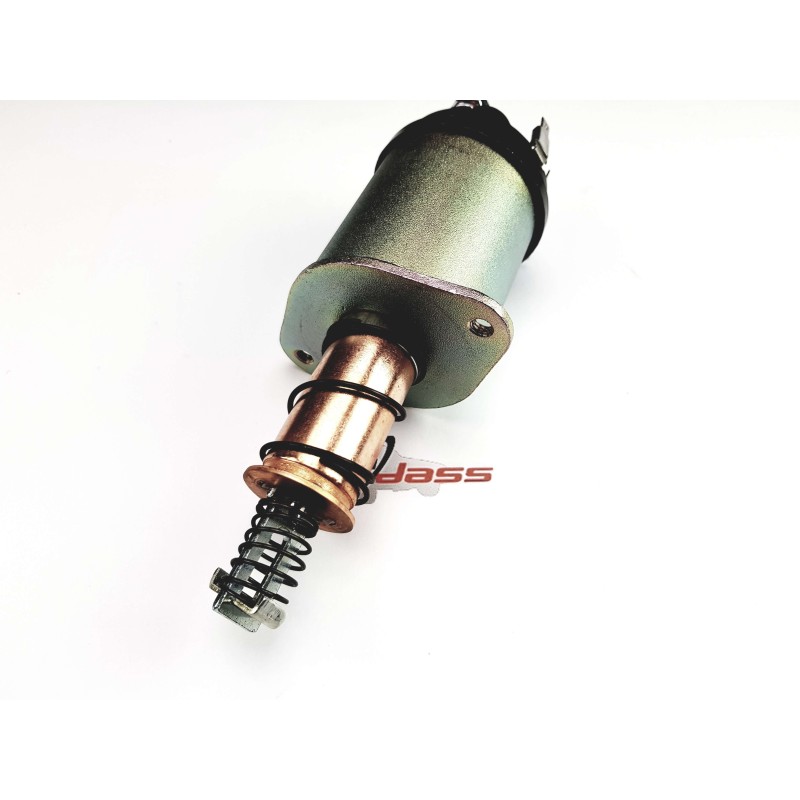

Solenoid for starter LUCAS M100 / 25372 / 25372A / 25374
Contacteur for starter LUCAS :
M100 / 25372 / 25372A / 25374 / 25374A / 25380 / 25380A / 25382 / 25382A
25410 / 25410A / 25629 / 25629A / 25629E / 25634 / 25634A
More info
Information:
Voltage 12
A = DE 53.75
B = Total length mm 171.25
Bolt Coil M8
D = DE/capot 60.10
E = DI capot 26.35
B+ M8
Height/B+ 20.85
Kl. 50/mm 6.30
Bolt Coil l. 20.85
For M100
Height/kl. 50 13.00
No./terminals 4

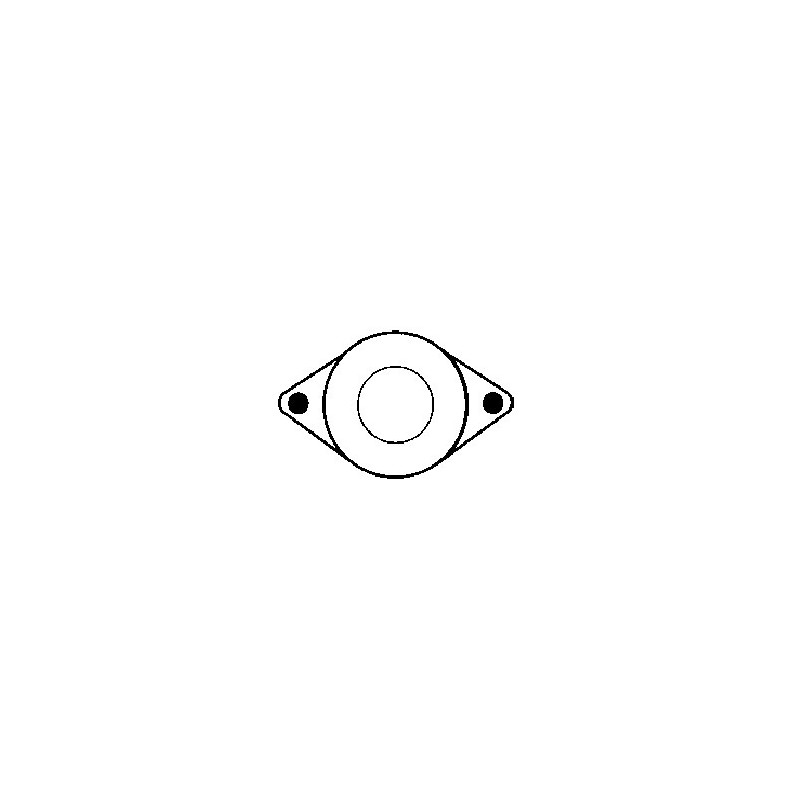

Distance between mounting holes : 69 mm
= Reference LUCAS :
tpb109 / tob198 / tob169 / tob167 / tob164 / tob159 / tob147 / tob142 / tob138
tob124 / tob117 / tob116 / 76875 / 76876 / 76877 / 76878 / 76879 / 76879e / 76880
76884 / 76919 / 76922 / 76923 / 76924 / 76929 / 76931 / 76933 / 76935 / 76939 / 76945
76963 / 76970 / 76978 / 76993 / 76998 / 77012 / 77016 / 77017 / 77059 / 77107
77111 / 77158 / 77160 / 96403 / 96405
fits starter :
| LUCAS | 24649A/24249L | 25372A | 25374A | 25380A |
| 25382A | 25410A | 25626A/D | 25626D | |
| 25629A/E | 25634A/E | 25638A/E | 25639A/E | |
| 25642A/F | 25643A/J | 25644A/K | 25647A/L | |
| 25648A/K | 25650A/E | 25651A/B | 25652A/E | |
| 25653A/E | 25654A/H | 25657A/E | 25662A/E | |
| 25666A/D | 25667A/D | 25674A/E | 25675A/D | |
| 25683A/D | 25684A/J | 25685A/E | 25686 | |
| 25686A/H | 25687A/L | 25688A/E | 25691A/K | |
| 25692A/J | 25693A/F | 25696 | 25696A/L | |
| 25698A/K | 25700A/D | 25701 | 25701A/D | |
| 25703A/E | 25704A/D | 25705A/D | 25707A/D | |
| 25709A/D | 25710A/D | 25711A/D | 25712A/H | |
| 25714A/D | 25716A/H | 25717A/D | 25718A/D | |
| 25719A/D | 25720A/D | 25721A/D | 25722A/D | |
| 25724A/E | 25728A/D | 25729A/D | 25730A/D | |
| 25731A/D | 25732A/E | 25734A/D | 25735A/E | |
| 25739A/D | 25742A | 25743AD | 25745A | |
| 25748A | 25751A | 25754A | 25755A |
