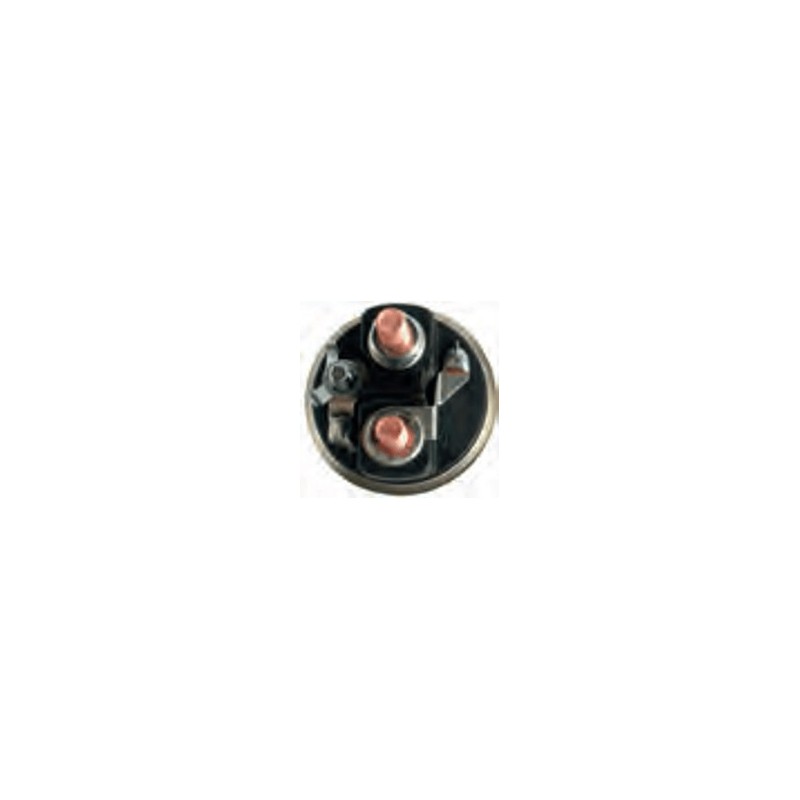

Solenoid for starter Magneti Marelli 63101000 / 63101002 / 63101008
for Magneti Marelli
| 63101015 |
| 63101018 |
| 63101021 |
| 63101022 |
| 63101023 |
| 63102004 |
| 63102007 |
| 63102014 |
| 63102018 |
| 63102020 |
| 63102021 |
| 63103015 |
| 63103024 |
| 63111027 |
More info

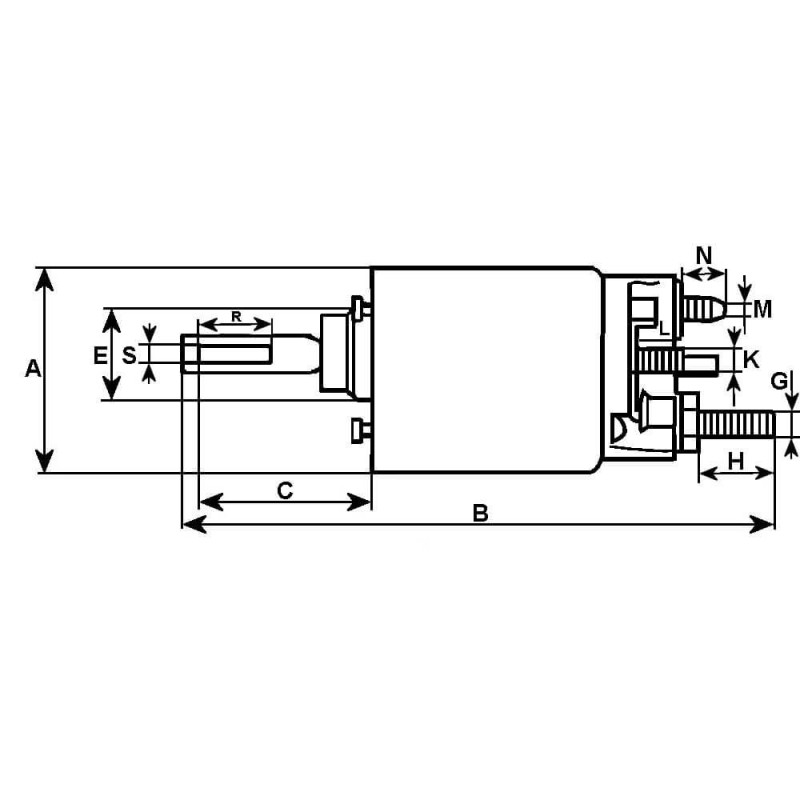

Physical information | ||
|---|---|---|
| A | OD mm | 54.00 |
| B | Total length mm | 125.30 |
| No./mount. holes | 3 | |
| E | ID/cover mm | 25.00 |
Plunger information | ||
|---|---|---|
| Q | Length mm | 54.50 |
| Fork Lever | w/o | |
Bracket information | ||
|---|---|---|
| D | OD/cover mm | 49.45 |
| G | B+ | M8 |
| Height/B+ | 22.90 | |
| M | Coil bolt | M8 |
| N | Coil bolt l. | 10.10 |
| No./terminals | 3 | |
null | ||
|---|---|---|
| M6 | Terminal 50/mm | |
Electrical information | ||
|---|---|---|
| Voltage | 12 | |
generic brand
Replacing | ||
|---|---|---|
| 085541360010 | lucas | |
| 85541360 | Magneti Marelli | |
| 85541770 | Magneti Marelli | |
| ZM-4395 | Zm | |
for starter
| S4028 | AS-PL |
| 063101015010 | LUCAS |
| 063101018010 | LUCAS |
| 063101023010 | LUCAS |
| 063102018010 | LUCAS |
| 063102021010 | LUCAS |
| 063111033010 | LUCAS |
| 063111037010 | LUCAS |
| 63101000 | MAGNETI MARELLI |
| 63101002 | MAGNETI MARELLI |
| 63101004 | MAGNETI MARELLI |
| 63101008 | MAGNETI MARELLI |
| 63101015 | MAGNETI MARELLI |
| 63101018 | MAGNETI MARELLI |
| 63101021 | MAGNETI MARELLI |
| 63101022 | MAGNETI MARELLI |
| 63101023 | MAGNETI MARELLI |
| 63102004 | MAGNETI MARELLI |
| 63102007 | MAGNETI MARELLI |
| 63102014 | MAGNETI MARELLI |
| 63102018 | MAGNETI MARELLI |
| 63102020 | MAGNETI MARELLI |
| 63102021 | MAGNETI MARELLI |
| 63103015 | MAGNETI MARELLI |
| 63103024 | MAGNETI MARELLI |
| 63111027 | MAGNETI MARELLI |
| 63111033 | MAGNETI MARELLI |
| 63111037 | MAGNETI MARELLI |
