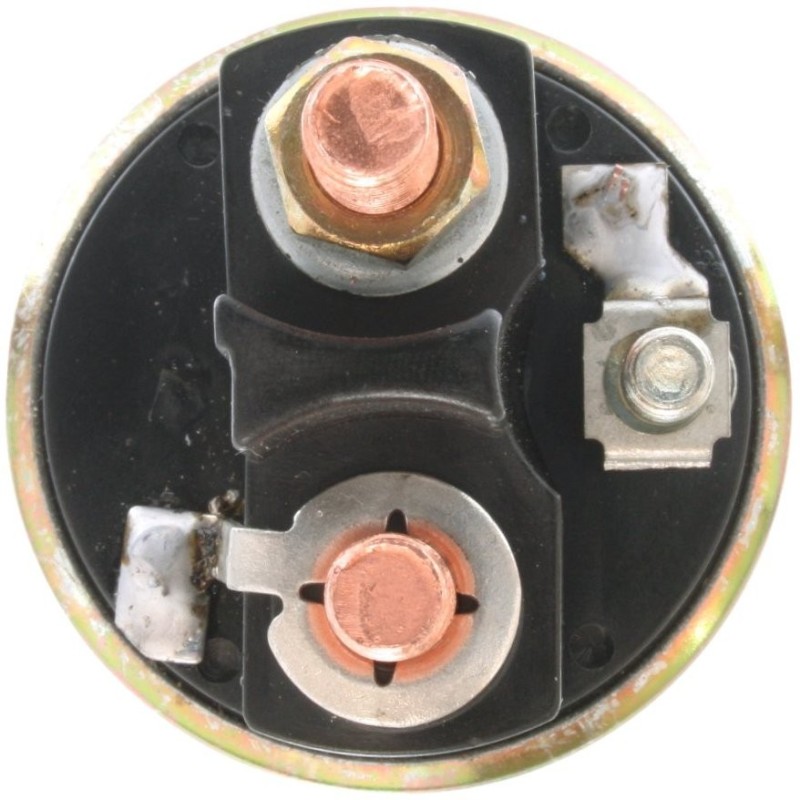

Solenoid for starter 63103026 / 63111010 / 63111016

Information:

Voltage 12

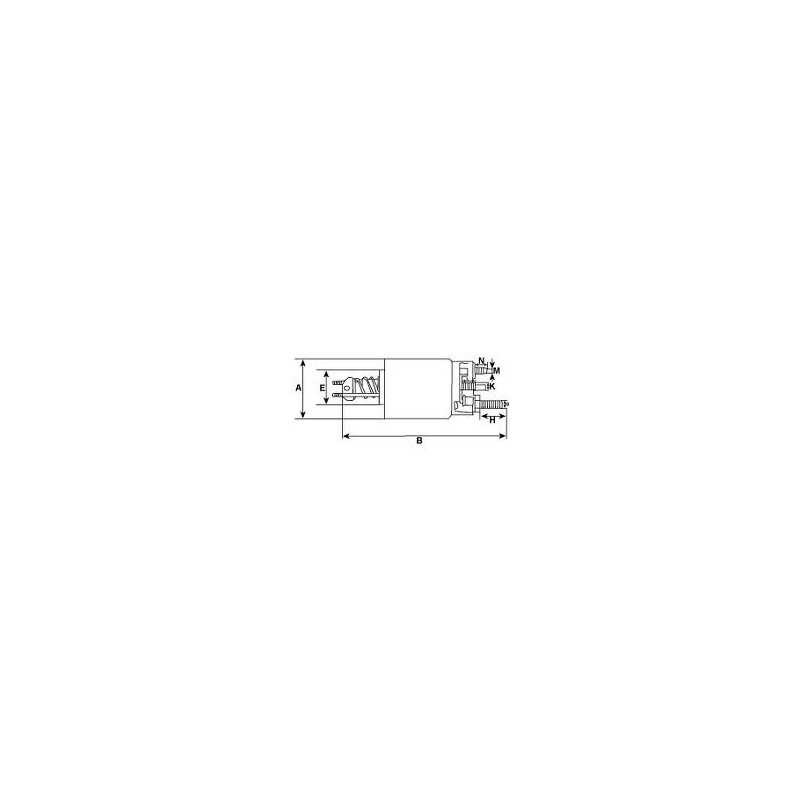

A = DE mm 54.00

B = Total length mm 122.85

M Bolt Coil M8

D = OD/cover mm 47.55

E = DI capot mm 25.70

B+ M8

H = Height/B+ 23.30

K = Kl. 50/mm M6

N Bolt Coil l. 9.75

L = Height/kl. 50 10.00

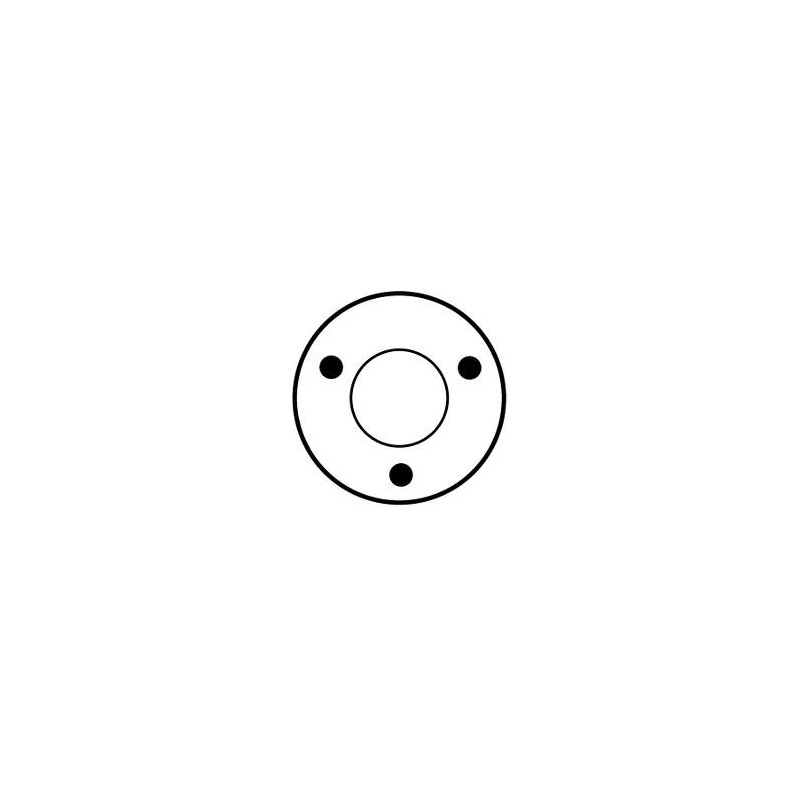

No./terminals 3

for starter LUCAS :

063103026010

063111016010

063111017010

063111036010

for starter MAGNETI MARELLI :

63103026

63111010

63111016

63111017

63111036
