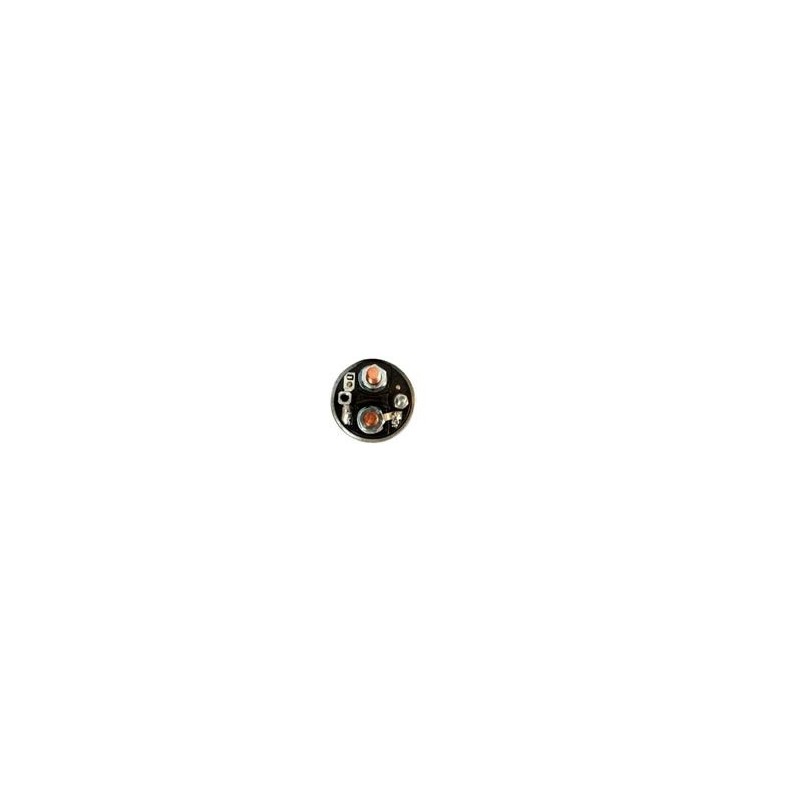

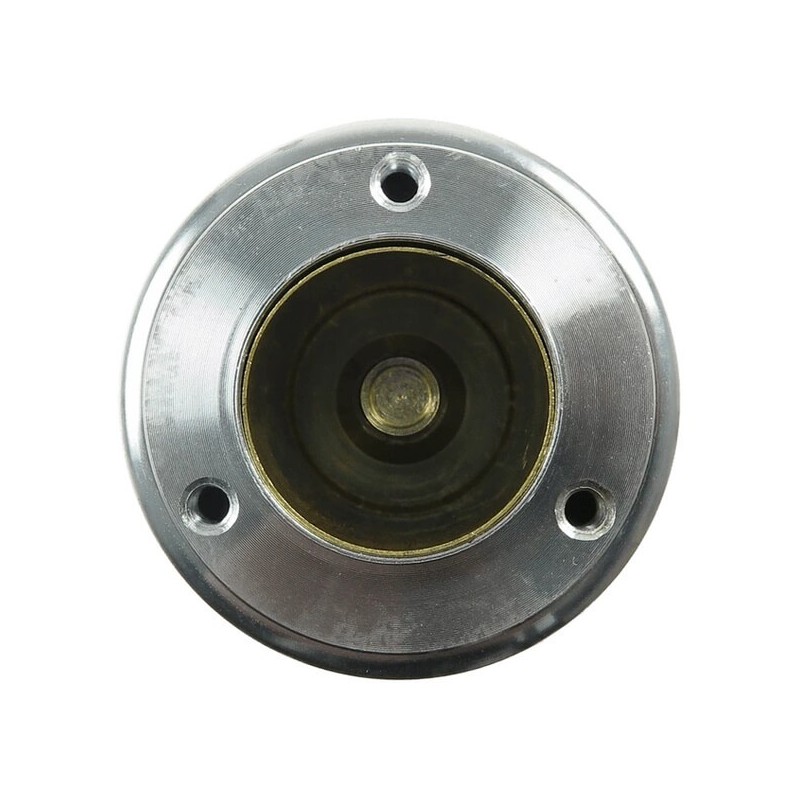

Solenoid for starter BOSCH 0001231002 / 0001231032 / B001260015
Solenoid for starter BOSCH
= BOSCH 2339402180 / 2339402156 / 2339402117
le relay en BOSCH under the reference w335158
More info
Electrical information | ||
|---|---|---|
| Voltage | 24 | |

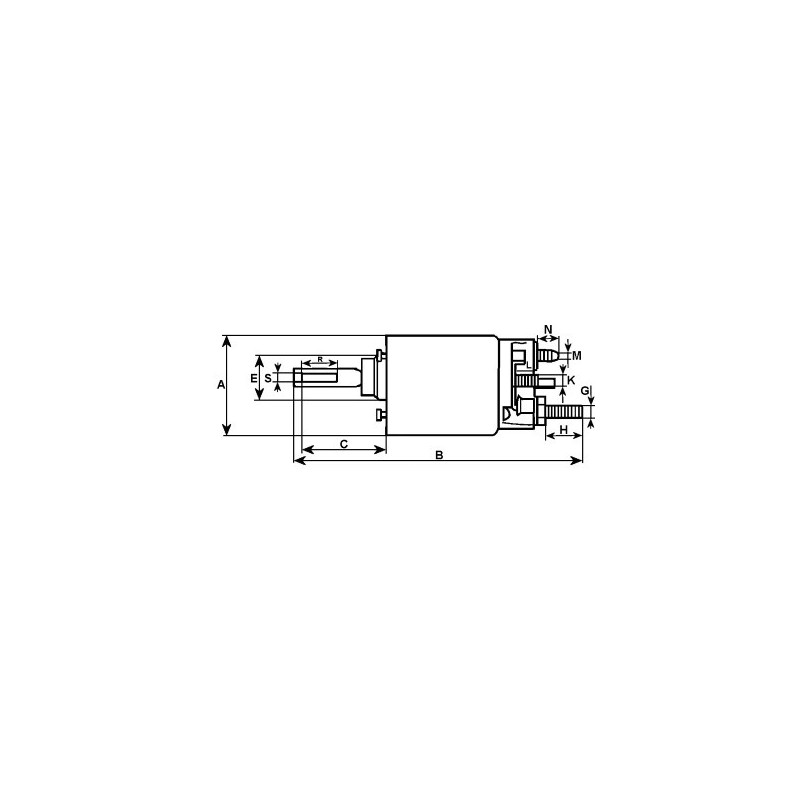

Physical Information | ||
|---|---|---|
| A | DE mm | 61.60 |
| B | Total length mm | 148.50 |
| No./mount. holes | 3 | |
| H | Mounting holes 2 | 30 |
| H | Mounting holes 3 | 50 |
InformationPlunger | ||
|---|---|---|
| Q | Length mm | 82.50 |
| Lever | w/o | |
InformationBrackets | ||
|---|---|---|
| G | B+ | M10 |
| Height/B+ | 17.50 | |
| M | Bolt Coil | M10 |
| N | Bolt Coil l. | 12.00 |
| No./terminals | 4 | |
= BOSCH 2339402180 / 2339402156 / 2339402117
fits:
BOSCH 0 001 231 002, 0 001 231 033, 1724; DAF 1516660R; LETRIKA (ISKRA) Tech. AZF4507, AZF4507; MAN 36-26201-6003, 36-26201-6003; MAGNETI MARELLI 063522310330, MSN2049; MERCEDES-BENZ 004 151 84 01 80, 004-151-84-01, 005 151 20 01 80, 005-151-20-01, 006 151 22 01 80, 006 151 22 03 80, 006-151-22-01, 006-151-22-03, 006151220180, A 004 151 84 01 80, A 005 151 20 01 80, A 006 151 22 01 80, A 006 151 22 03 80, A-004-151-84-01, A-005-151-20-01, A006-151-22-01, A006-151-22-03; PRESTOLITE 860321, 860321; Talbot 551503093
