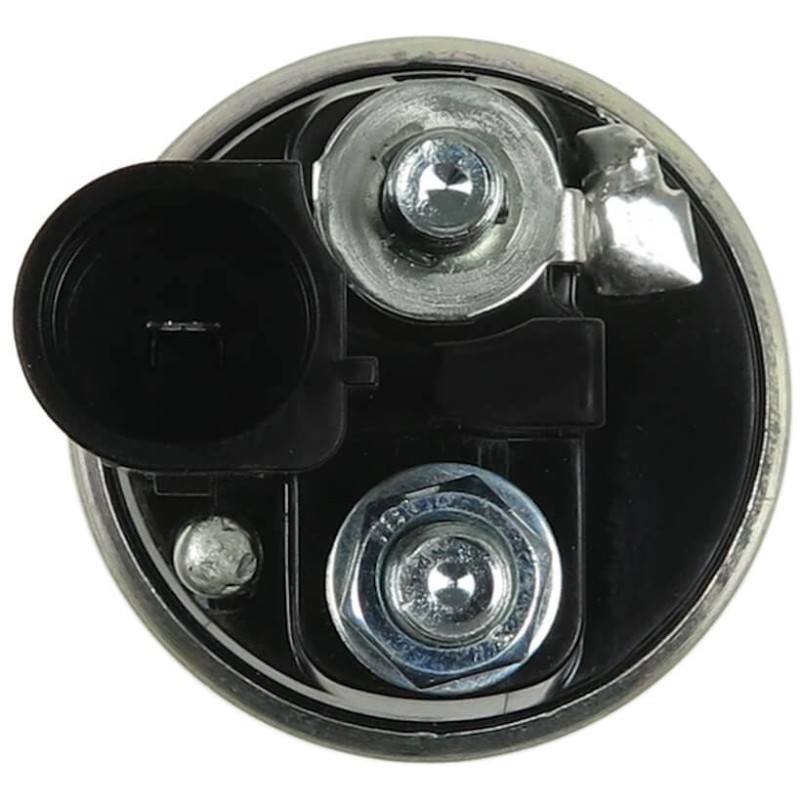

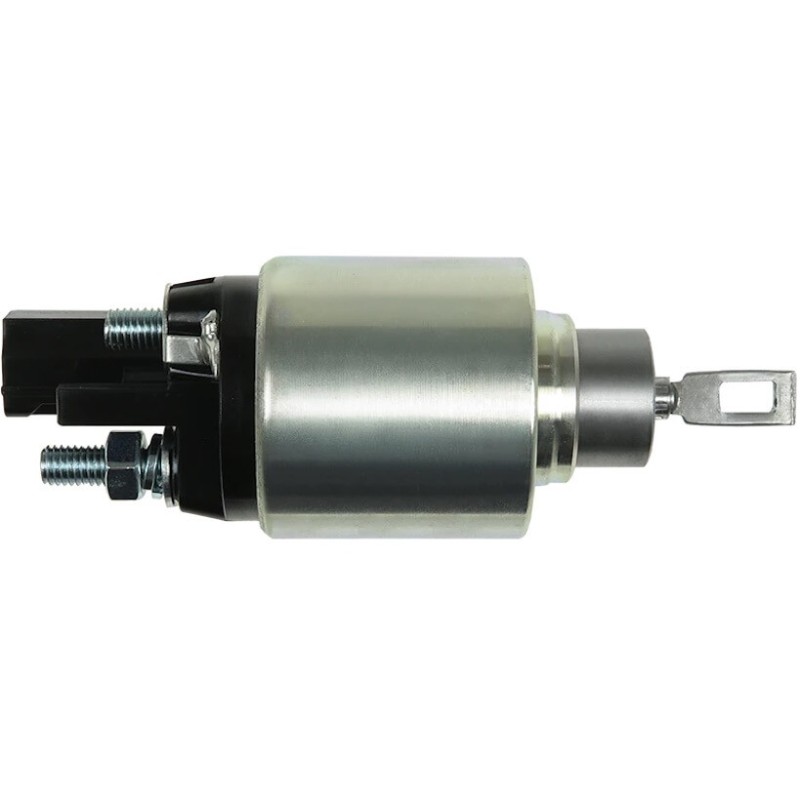

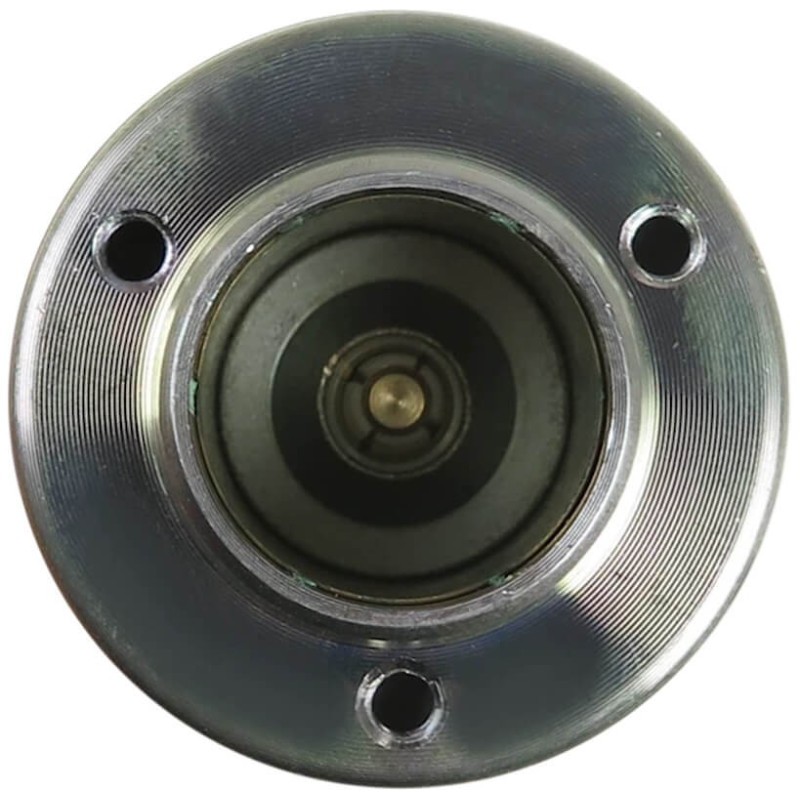

Solenoid for starter BOSCH 0001123015 / 0001123016 / 0001123017 / 0001123018 / 0001123019

Display all pictures

Solenoid for starter BOSCH 0001123015 / 0001123016 / 0001123017 / 0001123018 / 0001123019

Reference: w333994

Condition: New product

1 Item Items

Solenoid for starter BOSCH 0001121032 / 0001121033 / 0001123012 / 0001123013 / 0001123014 /
0001123015 / 0001123017 / 0001123018 / 0001123019

= BOSCH 2339305077 / 2339305055 / 2339305040 / 2339305324

modèle adaptable

la version BOSCH under the reference w235060

More info

More info

Information:

Electrical Information
Voltage		12

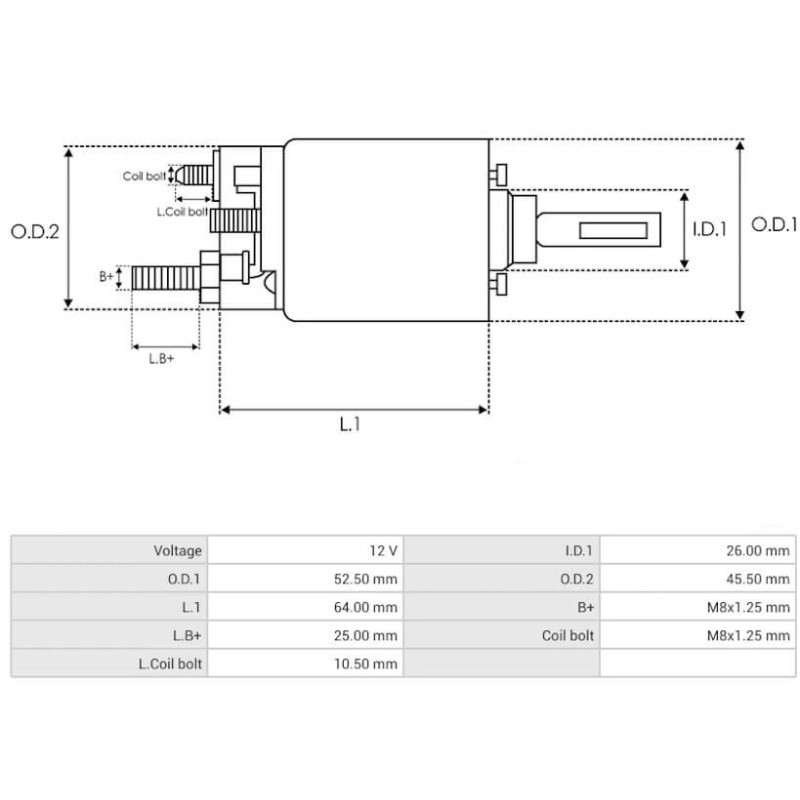

Physical Information
A	DE mm	52.25
B	Total length mm	153.20

Support
M	Bolt Coil	M8
D	OD/cover mm	45.50
E	DI capot mm	26.00
G	B+	M8
H	Height/B+	18.20
K	Kl. 50/mm	4.70
N	Bolt Coil l.	8.55

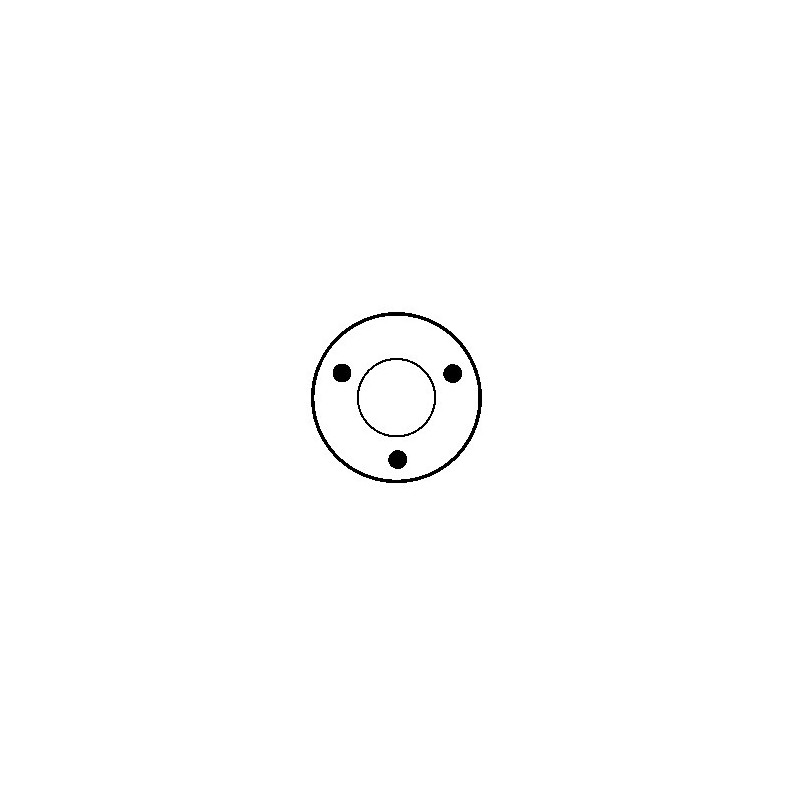

No./terminals		3

Replacing
2339305040	BOSCH
2339305055	BOSCH
2339305077	BOSCH
2339305324	BOSCH
236369	CARGO

for starter BOSCH :

0001123012 / 0001123013 / 0001123014 / 0001123015 / 0001123017 / 0001123018 / 0001123019 / 0001123020 / 0001123021
