Freewheel pulley for alternator BOSCH 0121715003 / 0121715047 / 0121715071 / 0121715103
Freewheel pulley for alternator :
VALEO 437689, 437689, 439734, 440324, FG18T033, FGN18T033, SG12B015, SG12B015 SP, SG12B090, SG8B013, SG8B027, SG9B015, SG9B015 SP, SG9B078, SG9B078 SP, TG11C017, TG14C011, TG14C015, TG14C016, TG14C026, TG14C031, TG14C036, TG14C057, TG17C019, TG17C024, TG17C024 SP, TG17C054
Pulley en brand INA under the reference w230293
More info
Combi Tool to extract pulley available here w210843
Information:

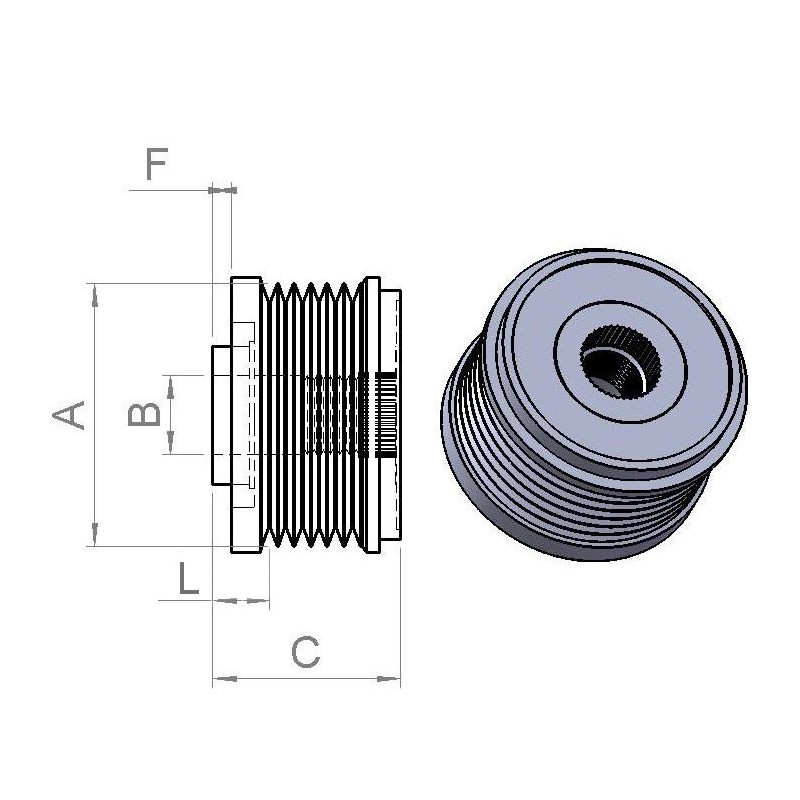

Physical Information | ||
|---|---|---|
| A | DE mm | 56.20 |
| E | Depth mm | 11.10 |
| C | Height mm | 42.80 |
| Pulley type | Serpentine Pulley/ Freewheel pulley | |
| Grooves | 6 | |
| Belt type | Multi Belt | |
| Fan | Without | |
| Free run | With | |
| B | Bore dia. | 17.00 |
| F | Distance / Back | 1.00 |
| Thread size | M16-1.50 | |
| Rotation | Clockwise | |
| L | Measurement 1. groove | 15.25 |
Replacing | |
|---|---|
| 0138600 | MAGNETON (PAL/SKODA) |
| 0138601 | MAGNETON (PAL/SKODA) |
| 022903119c | VOLKSWAGEN |
| 028903119am | VOLKSWAGEN |
| 038903119a | VOLKSWAGEN |
| 038903119t | VOLKSWAGEN |
| 2536778 | VALEO |
| 2546778 | VALEO |
| 2602911 | VALEO |
| 2604504 | VALEO |
| 335201 | IKA |
| 535001210 | LUK |
| 5378 | ZEN |
| 593491 | VALEO |
| 593600 | VALEO |
| 593999 | VALEO |
| 85-42-06 | VISNOVA |
| F00M147600 | BOSCH |
| F00M147737 | BOSCH |
| F00M147801 | BOSCH |
| f00m591131 | BOSCH |
| f00m599534 | BOSCH |
| f00m991002 | BOSCH |
| f00m991122 | BOSCH |
| f00m991206 | BOSCH |
| f00m991284 | BOSCH |
| F-227628 | INA |
| F-227628.04 | INA |
| F-227628.05 | INA |
| F-227628.06 | INA |
| F-227628.07 | INA |
| f-227628.10 | INA |
| F-227628.11 | INA |
| F-227628.12 | INA |
| f-227628.4 | INA |
| f-227628.5 | INA |
| f-227628.6 | INA |
| f-227628.7 | INA |
| f-227628.8 | INA |
| F-553470.01 | INA |
| f-553470.02 | INA |
| F-553470.07 | INA |
| GD214998 | HITACHI |
| GD214998-1 | HITACHI |
24-94256
Generic Brand
For Alternator :
AUDI / VOLKSWAGEN 021-903-026A, 021-903-026G, 021-903-026GX, 021-903-026L, 021-903-026LX, 022-903-028A, 022-903-028B, 022-903-028BX, 028-903-028E, 028-903-029G, 028-903-029GX, 028-903-030, 028-903-030A, 037-903-018DX, 038-903-018Q, 038-903-018QX, 038-903-023K, 038-903-023L, 038-903-023Q, 038-903-023R, 038-903-023S, 038-903-023SX, 038-903-024A, 038-903-024B, 038-903-024C, 038-903-024D, 038-903-024E, 038-903-024F, 038-903-024G, 038-903-024GX, 038-903-029GX, 03G-903-016A, 03G-903-016AX, 03G-903-016B, 03G-903-016BX, 03G-903-016E, 03G-903-016EX, 03G-903-016G, 03G-903-023, 03G-903-023, 03G-903-023X, 03G-903-023X, 03L 903 024 F, 03L 903 024 FX, 03L-903-023A, 03L-903-023AX, 03L-903-023D, 03L-903-023DX, 03L-903-023F, 03L-903-023FX, 03L-903-024M, 03L-903-024MX, 03P-903-023C, 03P903023CX, 045-903-023, 045-903-023A, 045-903-023AX, 045-903-023B, 045-903-023E, 045-903-023EX, 045-903-023F, 045-903-023FX, 045-903-023G, 045-903-023GX, 045-903-025B, 045-903-025G, 04L-903-023L, 04L-903-023LX, 06B-903-018G, 06B-903-018H, 06B-903-018HX, 06F-903-023-C, 06F-903-023A, 06F-903-023AX, 06F-903-023C, 06F-903-023CX, 06F-903-023D, 06F-903-023DX, 06F-903-023E, 06F-903-023EX, 06F-903-023F, 06F-903-023FX, 06F-903-023H, 06F-903-023HX, 06F-903-023J, 06F903023JX
BOSCH 0121715003, 0121715047, 0121715071, 0121715103, 0121715171, 0124315001, 0124315013, 0124315032, 0124325001, 0124325012, 0124325047, 0124325073, 0124325083, 0124325101, 0124325130, 0124325131, 0124325166, 0124325178, 0124515010, 0124515022, 0124515101, 0124515117, 0124515121, 0124515124, 0124515125, 0124525027, 0124525039, 0124525050, 0124525066, 0124525067, 0124525090, 0124525091, 0124525092, 0124525098, 0124525114, 0124525525, 0124525530, 0124615017, 0124615038, 0124625010, 0124625028, 0125811027, 0125811028, F002G10862
CHRYSLER 04801715AA, 4801715AA; FORD 1100711, 1100712, 1118206, 1512890, 1514150, 1757737, 98VW-10300-CA, RE98VW-10300-CA, RM98VW-10300-EA, RMYM21-10300-AA, YM21-10300-CA
FORD ENGINEERING 98VW 10300 EA, YM21-CA
HITACHI LR1120-701
JOHN DEERE AL166645, SE 50 182 9
MAGNETON 9-517-103, 9-517-103, 9-517-103, 9-517-103, 9-517-103, 9-517-213, 9-517-213, 9-517-213, 9-517-213, 9-517-403, 9-517-403, 9-517-403, 9-517-413, 9-517-413, 9-517-413, 9-517-413, 9-517-464, 9-517-464
MAGNETI MARELLI 063533150130, 063533250010, 063533250830, 063535150220, 063535250920, 063535255250, 063537151710, 943355059010, 943355059010, 943355139010, 943355139010, 943355139010, 944390414800, 944390414900, 944390418600
MERCEDES-BENZ 000-154-02-02, HVW 000 154 01 02, HVW 000 154 02 02, HVW-000-154-02-02
MITSUBISHI 1800A066
SKODA 03G-903-023
VALEO 437689, 437689, 439734, 440324, FG18T033, FGN18T033, SG12B015, SG12B015 SP, SG12B090, SG8B013, SG8B027, SG9B015, SG9B015 SP, SG9B078, SG9B078 SP, TG11C017, TG14C011, TG14C015, TG14C016, TG14C026, TG14C031, TG14C036, TG14C057, TG17C019, TG17C024, TG17C024 SP, TG17C054
VM Motori 38 52 2321F
Mounted on :
Audi (2000-2013)
VOLKSWAGEN (1999-2016)
