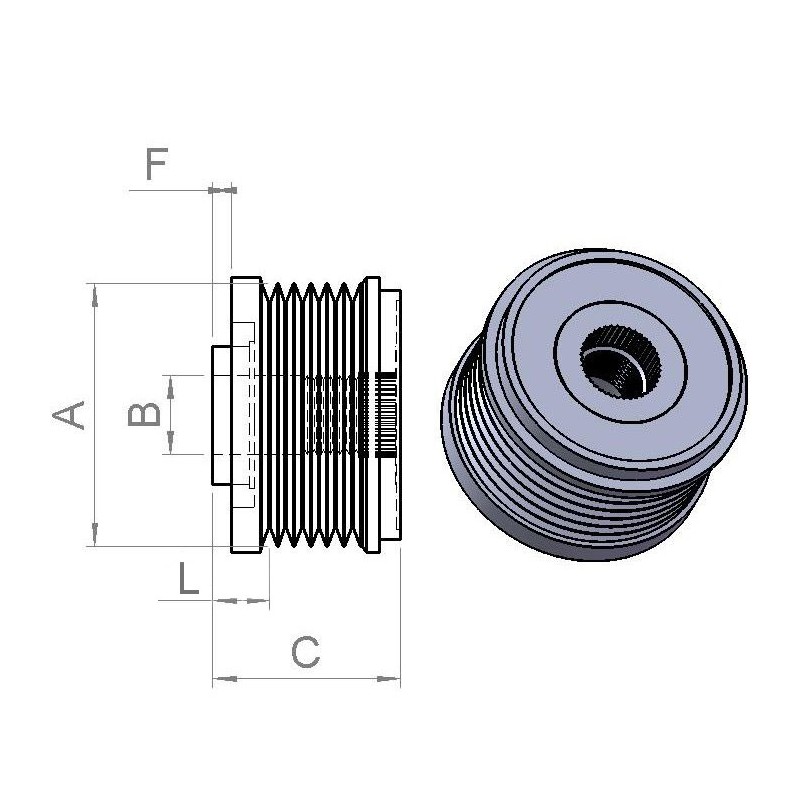

Pulley for alternator DENSO 100213-2940 / 100213-2950 / 100213-2980

Information:

B = Bore dia. 15.00

A = DE mm 59.40

E = Depth mm 10.10

C = Height mm 37.50

Pulley type Pulley serpentine/ Freewheel pulley

Grooves 6

Belt type Multi Belt

Fan Without

Free run With

F = Distance / Back 2.50

Thread size M14-1.50

Rotation Dans le sens froms aiguilles du montre

L = Measurement 1. groove 12.70

= DENSO 081020-0010

= Luk 535004310 / 535011010

= INA F-233106.01 / F-233106.03 / f-233106.04 / f-233106.05 / f-233106.1

for alternator DENSO :

100213-2940

100213-2950

100213-2980

100213-2990

100213-2991

100213-2993

102213-2993
