Pulley for alternator BOSCH 0124315011 / 0124325018 / 0124325049

Information:

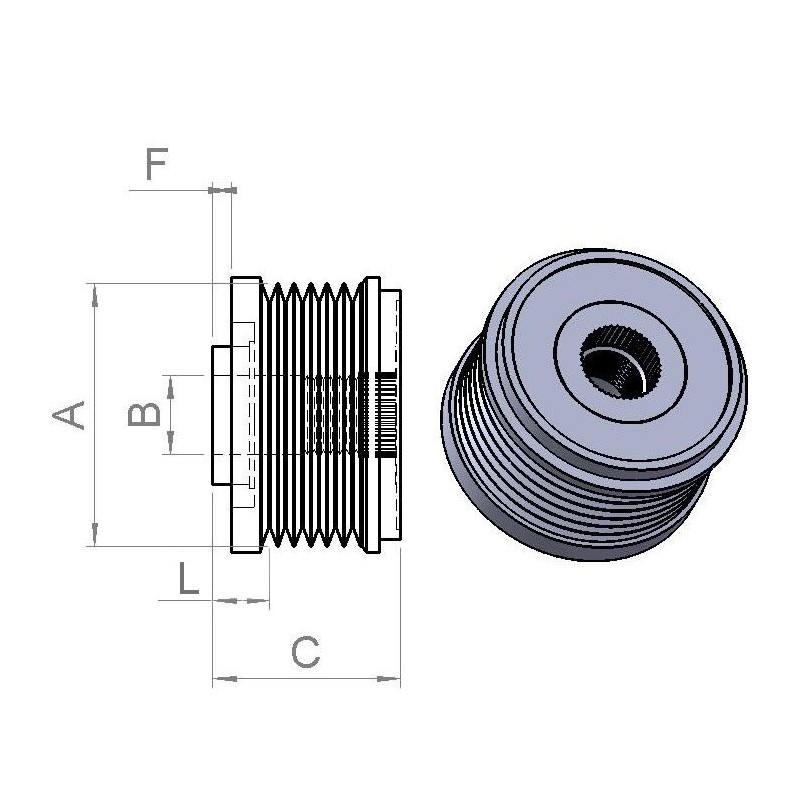

A = DE mm 55.80

E = Depth mm 11.10

C = Height mm 36.50

Pulley type Serpentine Pulley/ Freewheel pulley

Grooves 5

Belt type Multi Belt

Fan Without

Free run With

B = Bore dia. 17.00

F = Distance / Back 1.00

Thread size M16-1.50

Rotation Clockwise

L = Measurement 1. groove 5.70

= BOSCH f00m991378 / f00m991045 / f00m991043 / F00M147724

= INA

F-225653.06 / F-225653.07 / F-225653.10 / f-225653.11 / f-225653.6 / f-225653.7 / f-225653-11

 f-532699 / f-552699.02

= LUK 5350005000 / 535000510

for alternator BOSCH :

0124325018
0124325049
0124515026
0124515083
0124525010
0124525089
0124615021

for alternator VALEO :

2542232
2542234
2542239
2542496
2542507
2542508
2542680
2574347
SG12B010
SG12B012
SG12B049
SG12B074
SG14B011
SG9B017
SG9B042
