Pulley
Freewheel pulley for alternator INA F-2388822.01 / F-238822.02
€45.90
Features
for alternator :
| A003TX1881ZE | MITSUBISHI | 231002543R | RENAULT |
| A003TX2681ZE | MITSUBISHI | 231003784R | RENAULT |
| A004TJ0482 | MITSUBISHI | 231009036R | RENAULT |
| A004TJ0581 | MITSUBISHI | 7711368727 | RENAULT |
| A004TJ0581ZE | MITSUBISHI | 8200404638 | RENAULT |
| A004TJ0582 | MITSUBISHI | 8200660057 | RENAULT |
| A004TJ0582ZE | MITSUBISHI | 8200960533 | RENAULT |
| A3TX1881ZE | MITSUBISHI | ||
| A3TX2681ZE | MITSUBISHI | ||
| A4TJ0482 | MITSUBISHI | ||
| A4TJ0581 | MITSUBISHI | ||
| A4TJ0581ZE | MITSUBISHI | ||
| A4TJ0582 | MITSUBISHI | ||
| A4TJ0582ZE | MITSUBISHI | ||
| ARK30601 | MITSUBISHI |

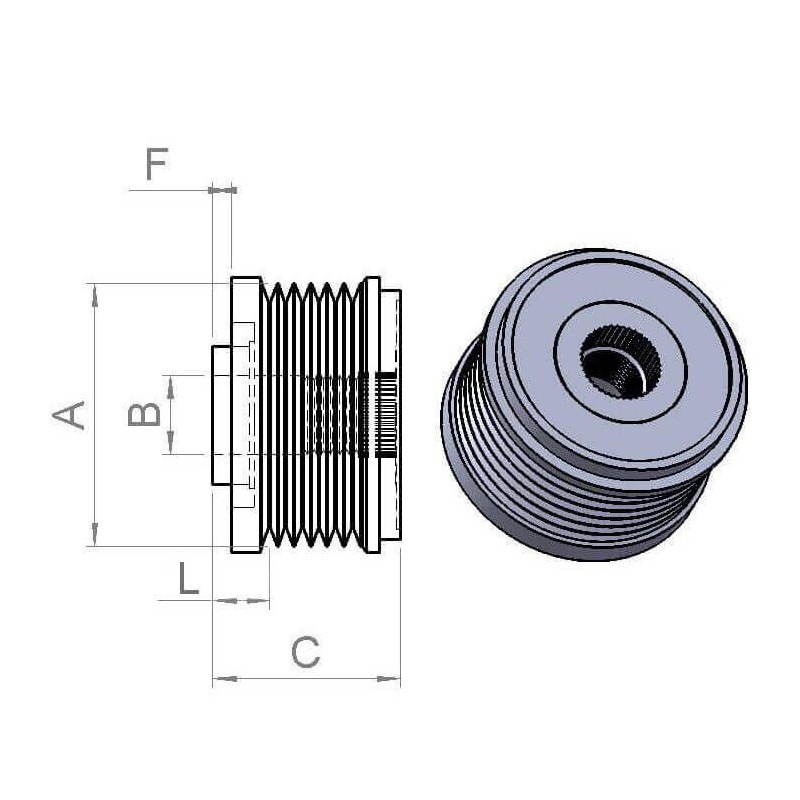

Physical information | ||
|---|---|---|
| A | OD mm | 55.00 |
| C | Width mm | 42.30 |
| B | Bore dia. | 17.00 |
| Thread size | M17-1.50 | |
| E | Depth mm | 17.00 |
| F | Dist./back | 4.40 |
| Pulley type | SP/FW | |
| Grooves | 6 | |
| Belt type | Multi Belt | |
| Free run | w/ | |
| L | Measurement 1. groove | 15.70 |
