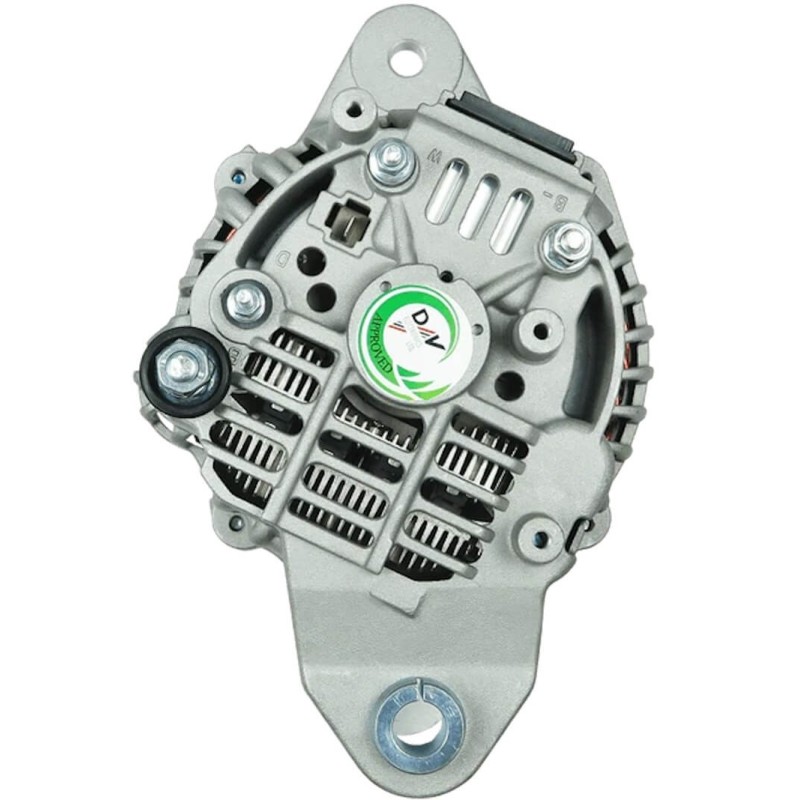

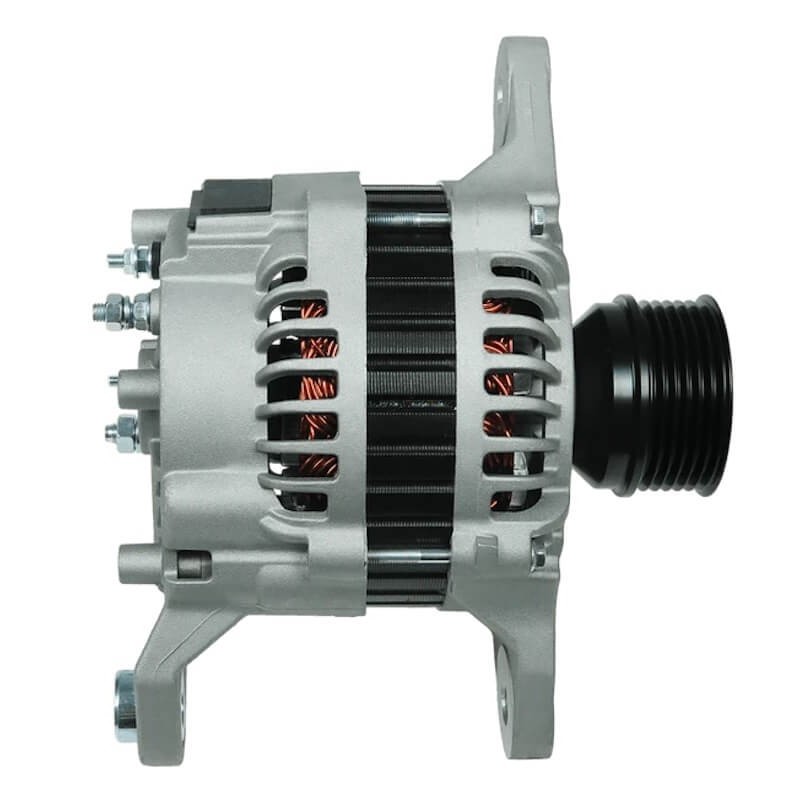

Alternator NEW replacing VOLVO 3587216 / 3817662 / 3840181 / 874502
= MITSUBISHI A003TR0091 / A003TR0091ZT / a3tr0091 / A3TR0091ZT / A3TR0093 / A3TR0093ZT / A3TR0094
PULLEY DIAMETER 62 MM
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 115 | |

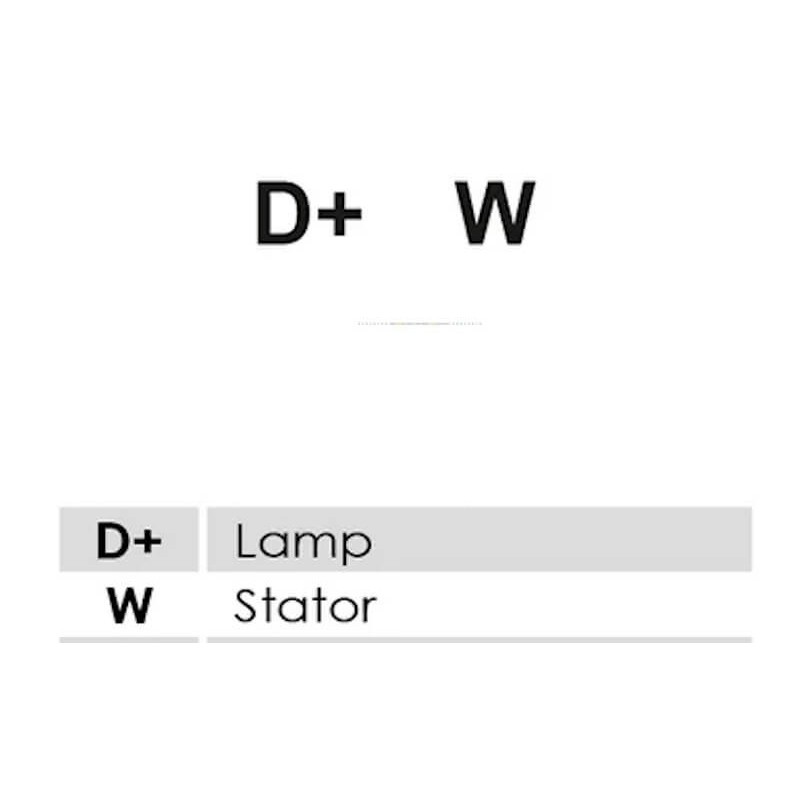

| Plug type | W | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 14.00 |
| G | Belt. adj. bracket hole | 11.00 |
| B | Width/holder arm | 14.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 104.00 |
| H | Pulley dia. | 62.00 |
| A | Pulley dist. | 44.50 |
| i | Grooves/pulley | 6 |
| j | Radius | 99.00 |
| j | Radius 2 | 99.00 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL_NA |
| Q | Tipo prise W | M5 |
| R | Total length mm | 204.00 |
Replacing | |
|---|---|
| 3817662 | VOLVO |
| 3840181 | VOLVO |
| 874502 | VOLVO |
| A003TR0091 | MITSUBISHI |
| A003TR0091ZT | MITSUBISHI |
| a3tr0091 | MITSUBISHI |
| A3TR0091ZT | MITSUBISHI |
| A3TR0093 | MITSUBISHI |
| A3TR0093ZT | MITSUBISHI |
| A3TR0094 | MITSUBISHI |
| 020093 |
| 285535 |
| 3587216 |
| 3819662 |
| 3840181 |
| 815524115 |
| 815524115130 |
| 815524115370 |
| 815524115370001 |
| 815524115370002 |
| 874502 |
| 930684 |
| A003TR0091 |
| A003TR0091ZT |
| A003TR0093 |
| A003TR0093ZT |
| A003TR0094 |
| A3TR0091ZT |
| A3TR0091ZTCO |
| A3TR0092 |
| A3TR0093ZT |
| A3TR0093ZT+ |
| A3TR0093ZTCO |
| A3TR0094ZT |
| DRA0684 |
| LRA02921 |
Generic Brand
Mounted on :
| Brand | Model | Tipo | Year |
| VOLVO PENTA | Engine | [D1-13] | |
| VOLVO PENTA | Engine | [D1-20] | |
| VOLVO PENTA | Engine | [D1-30] | 01/01/05 |
| VOLVO PENTA | Engine | [D2-40] | |
| VOLVO PENTA | Engine | [D2-55] | 01/01/05 |
| VOLVO PENTA | Engine | [D2-75] | 01/01/05 |
| VOLVO PENTA | Engine | [D4-180] | 01/01/10 |
| VOLVO PENTA | Engine | [D4-210] | 01/01/05 |
| VOLVO PENTA | Engine | [D4-225] | 01/01/10 |
| VOLVO PENTA | Engine | [D4-260] | 01/01/10 |
| VOLVO PENTA | Engine | [D4-300] | 01/01/10 |
| VOLVO PENTA | Engine | [D6-310] | |
| VOLVO PENTA | Engine | [D6-350] | 01/01/05 |
| VOLVO PENTA | Engine | [D6-370] | 01/01/05 |
| VOLVO PENTA | Engine | [D6-435] | |
| VOLVO PENTA | Engine | [D9-500] | 01/01/07 |
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
