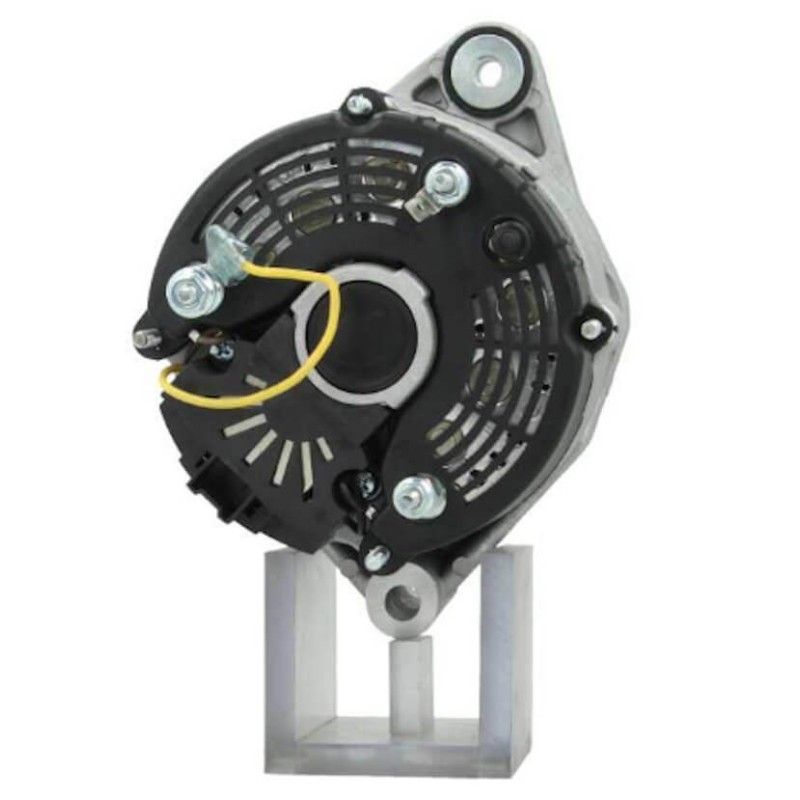

Alternator replacing VALEO A13N35M / A13N2M / A13N259M / A13N234
for BUKH / VOLVO PENTA
VALEO A13N234 / A13N35M / A13N2M / A13N259M / A13N259 / A13N234 A13N2 / A13N1M / A13N186M / A13N149M / A13N148M / A13N147M / A13N147 / A13N285 / 2518039 / 2518039C / 2541191 / 2541191B / 2541663 / 436378 / 436638 / 436676 / 439067 / 439181 / 439185
VOLVO 841765 / 858838 / 873770 / API MARINE 20020-OE
the 120 AH model is under the reference w815019100
More info
Information:

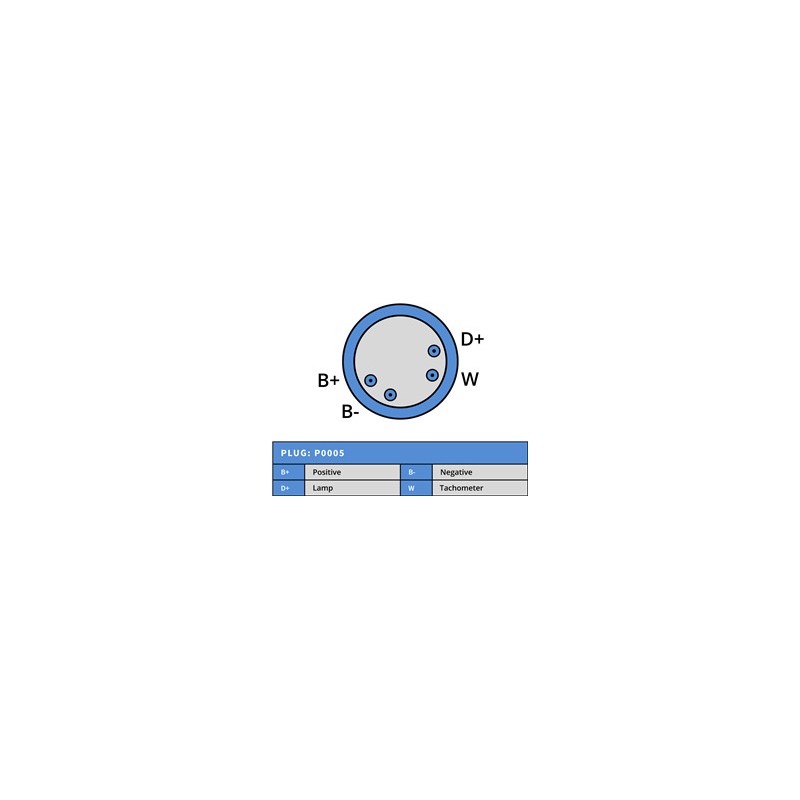

Voltage 14 - Amp 60 - Isolant Masse isolatede - Plug type W
the 100 AH model is under the reference w815019100

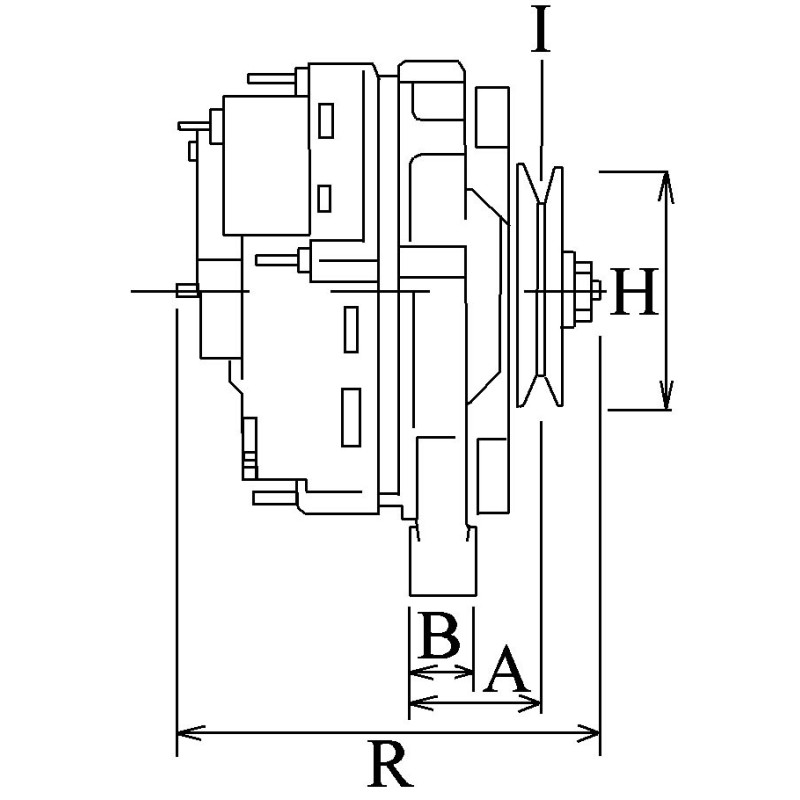

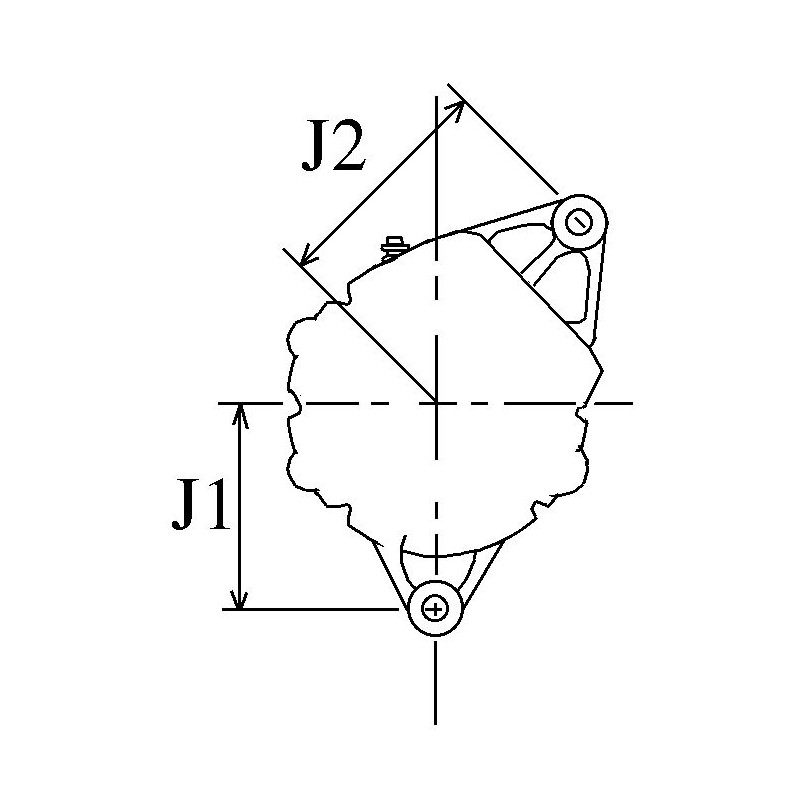

Physical Information | ||
|---|---|---|
| D | Bracket hole | 11.40 |
| G | Belt. adj. bracket hole | 8.20 |
| B | Width/holder arm | 50.70 |
| E | Belt. adj. brackethole pos. | 57 |
| H | Pulley dia. | 77.40 |
| A | Pulley dist. | 74.20 |
| i | Grooves/pulley | 1 |
| j | Radius | 84.50 |
| j | Radius 2 | 83.80 |
| k | Position B + | M6 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL_NA |
| R | Total length mm | 167.00 |
generic brand
replacing
| 0120400778 | BOSCH |
| 0120489779 | BOSCH |
| 110048 | Cargo |
| 12090050 | EuroTec |
| 12090221 | EuroTec |
| 12411N | WAI |
| 12411R | WAI |
| 13059N | WAI |
| 13068N | WAI |
| 2518039 | VALEO |
| 2541191 | VALEO |
| 2541451 | VALEO |
| 2541663 | VALEO |
| 2541827 | VALEO |
| 280683 | Elstock |
| 282865 | Elstock |
| 436378 | VALEO |
| 436638 | VALEO |
| 436676 | VALEO |
| 439067 | VALEO |
| 439181 | VALEO |
| 439185 | VALEO |
| 510819 | VALEO |
| 518039 | VALEO |
| 541451 | VALEO |
| 541663 | VALEO |
| 541827 | VALEO |
| 5623SP | Spidan |
| 66021151MS | PRESTOLITE |
| 70229002 | MARCHAL |
| 70229102 | MARCHAL |
| 70229402 | MARCHAL |
| 70229502 | MARCHAL |
| 70229602 | MARCHAL |
| 70229612 | MARCHAL |
| 70229702 | MARCHAL |
| 70229802 | MARCHAL |
| 70230002 | MARCHAL |
| 70230102 | MARCHAL |
| 70230202 | MARCHAL |
| 70230302 | MARCHAL |
| 70230402 | MARCHAL |
| 712190030 | STEYR |
| 75785 | EAI |
| 815019055 | PSH |
| 834610 | VOLVO |
| 834965 | VOLVO |
| 841765 | VOLVO |
| 858838 | PRESTOLITE |
| 90203546 | WILSON |
| 90214507 | WILSON |
| 9090673F | Friesen |
| 933623 | EDR |
| 9AR2738P | MOTOROLA |
| A13N147M | VALEO |
| A13N148M | VALEO |
| A13N149M | VALEO |
| A13N186M | VALEO |
| A13N1M | VALEO |
| A13N234 | VALEO |
| A13N259 | VALEO |
| A13N259M | VALEO |
| A13N285 | VALEO |
| A13N285M | VALEO |
| A13N2M | VALEO |
| A13N35M | VALEO |
| CA1192IR | HC |
| DRA3623 | DELCO REMY |
| HCA1192IR | HC |
| KTR1630038110 | KTR |
| L81350 | ATL |
| LRA01192 | LUCAS |
| LRA01246 | LUCAS |
| LRA01656 | LUCAS |
| MA910 | Dixie |
Bukh Marine Diesel 612H0240,
PARIS-RHONE 100605, 100606, 103141, A13N147M, A13N148M, A13N1M, A13N2M, A13N35M, A13N57M,
PRESTOLITE 66021151M
VOLVO-PENTA 3803227.2, 834625-6, 841378-3, 841380, 841762, 841763, 841765, 841766, 841766-9, 842765, 858838, 858838-6, 858839, 858839-4, 872018-7, 872926-1
HELLA 8EL737212001 / Nanni Diesel 970307522
Mounted on :
Volvo Penta MD2030B
1987-78 BMW Various Models
All Bukh 2G105
All Bukh 3G105
1975-On Bukh 4K105
1975-On Bukh 6K105
All Bukh DV10
All Bukh DV10ME
All Bukh DV10SME
All Bukh DV20
All Bukh DV20ME
All Bukh DV20SME
All Bukh DV36
All Bukh DV36ME
All Bukh DV36SME
All Bukh DV48ME
All Bukh DV48SME
1975-On VALEO Various Models
1993-83 VOLVO PENTA 2002
1993-83 VOLVO PENTA 2003,T
1992-89 VOLVO PENTA 431A,B
1998-92 VOLVO PENTA 432A,B
1997-92 VOLVO PENTA 434A,B
1993-89 VOLVO PENTA 500A,B
1993-89 VOLVO PENTA 501A,B
1993-89 VOLVO PENTA 570A
1998-91 VOLVO PENTA 572A,B
1993-89 VOLVO PENTA 740A,B
All VOLVO PENTA AD290
1980-66 VOLVO PENTA AQ120
1985-81 VOLVO PENTA AQ125,A,B
1989-85 VOLVO PENTA AQ131A,B,C,D
1979-75 VOLVO PENTA AQ140,A
1985-79 VOLVO PENTA AQ145
1985-79 VOLVO PENTA AQ145A
1985-79 VOLVO PENTA AQ145B
All VOLVO PENTA AQ171A
1985-81 VOLVO PENTA AQ175A
All VOLVO PENTA AQ200D
1989-88 VOLVO PENTA AQ205A
1986-73 VOLVO PENTA AQ225A,B,C,D,F
1989-86 VOLVO PENTA AQ231A,B
1985-78 VOLVO PENTA AQ260A,B
1989-86 VOLVO PENTA AQ271,A,B,C
All VOLVO PENTA AQ290
1985-79 VOLVO PENTA AQ290A
1986-80 VOLVO PENTA AQAD40A,B
1994-86 VOLVO PENTA AQAD41A,B,D
1977-69 VOLVO PENTA AQD32A
All VOLVO PENTA B21
All VOLVO PENTA B23
All VOLVO PENTA MD11
1981-75 VOLVO PENTA MD11C
1981-75 VOLVO PENTA MD17
1984-75 VOLVO PENTA MD17C
1984-75 VOLVO PENTA MD17D
All VOLVO PENTA MD18
1979-68 VOLVO PENTA MD21
1979-68 VOLVO PENTA MD21A
1975-64 VOLVO PENTA MD2B
1975-64 VOLVO PENTA MD2BHY
1986-83 VOLVO PENTA MD30
1977-69 VOLVO PENTA MD32A
1975-71 VOLVO PENTA MD3B
All VOLVO PENTA MD5
1982-75 VOLVO PENTA MD5A,B,C
All VOLVO PENTA MD7
1983-76 VOLVO PENTA MD7A
1986-83 VOLVO PENTA TAMD30,A,B,C
1989-86 VOLVO PENTA TAMD41A
1987-83 VOLVO PENTA TAMD70E
1986-83 VOLVO PENTA TMD30A,B
All VOLVO PENTA TMD40
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
