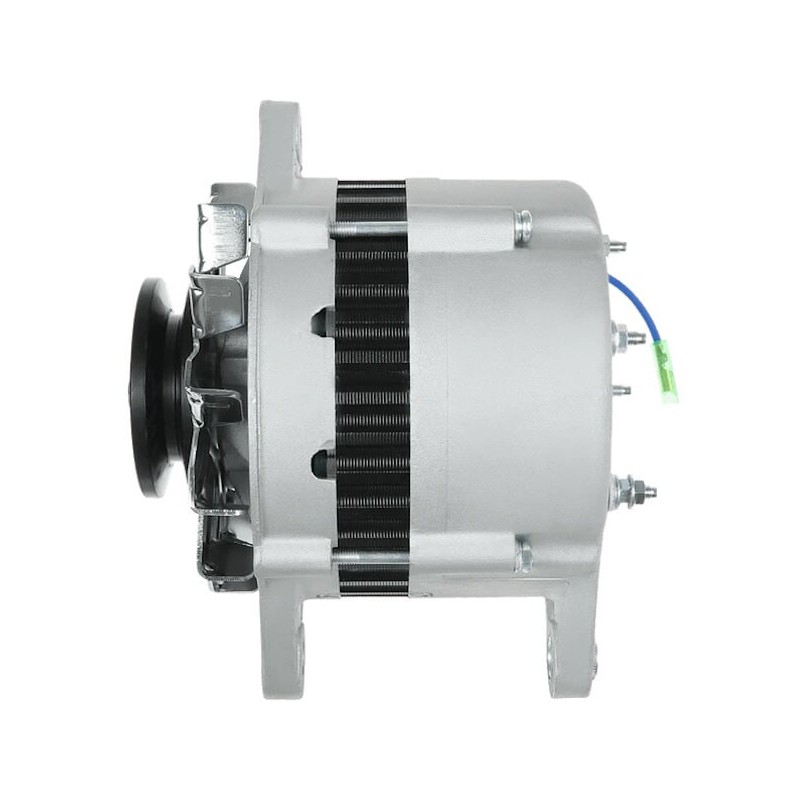

Alternator NEW for YANMAR
= HITACHI LR180-03 / LR180-03B / LR180-03A / LR180-03C / YANMAR 119573-77200 / 119573-77201 / 129470-77200
= 0241548
for motor :
3JH2 BE-E (91-99)
3JH3 E (99-03)
3JH4E (03&+)
4JH2 CE-DTE-E-HTE-TE-UTE (88&+)
4JH3 CE-DTE-HTE-TCE-TE (94-03)
4LH DTE-STE-HTE (87&+)
6LY (92&+)
NO CORE EXCHANGE NEEDED
Information:
Voltage 14
Amp 80
Isolant
Earth-isolated
, Plug type W

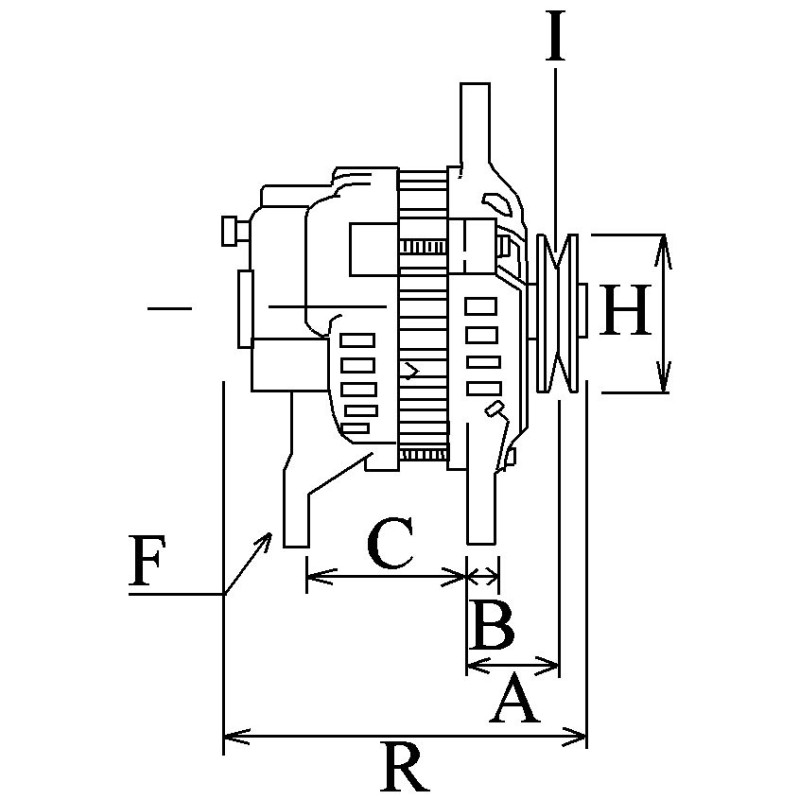

Physical Information |
||
|---|---|---|
| D | Bracket hole | 10.40 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 13.15 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 82.00 |
| H | Pulley dia. | 73.65 |
| A | Pulley dist. | 42.50 |
| i | Grooves/pulley | 1 |

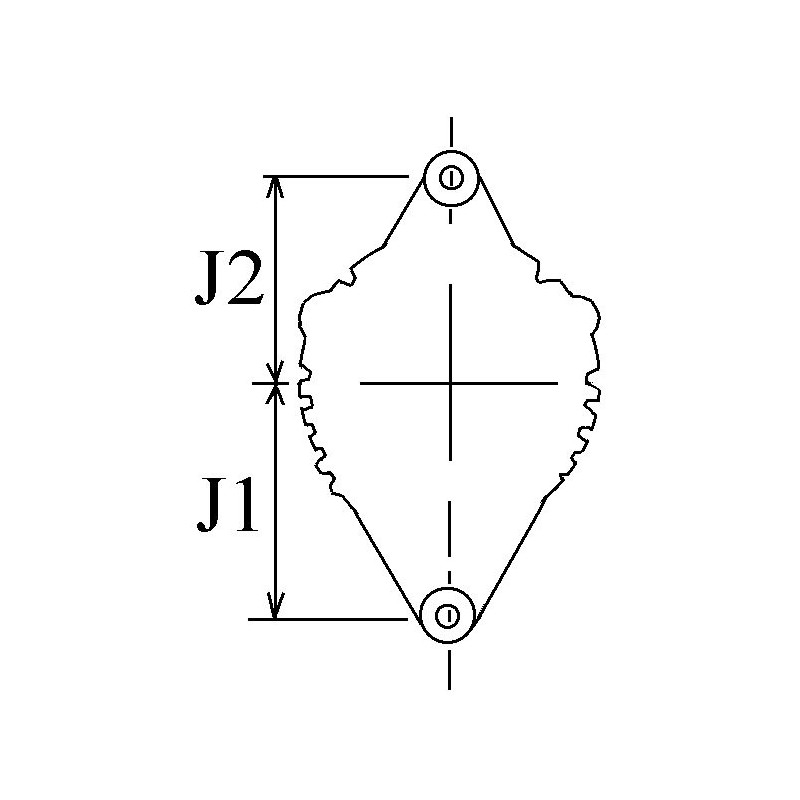

| j | Radius | 89.00 |
| j | Radius 2 | 85.00 |
| k | Position B + | M5 |
| n | Rotation | CW |

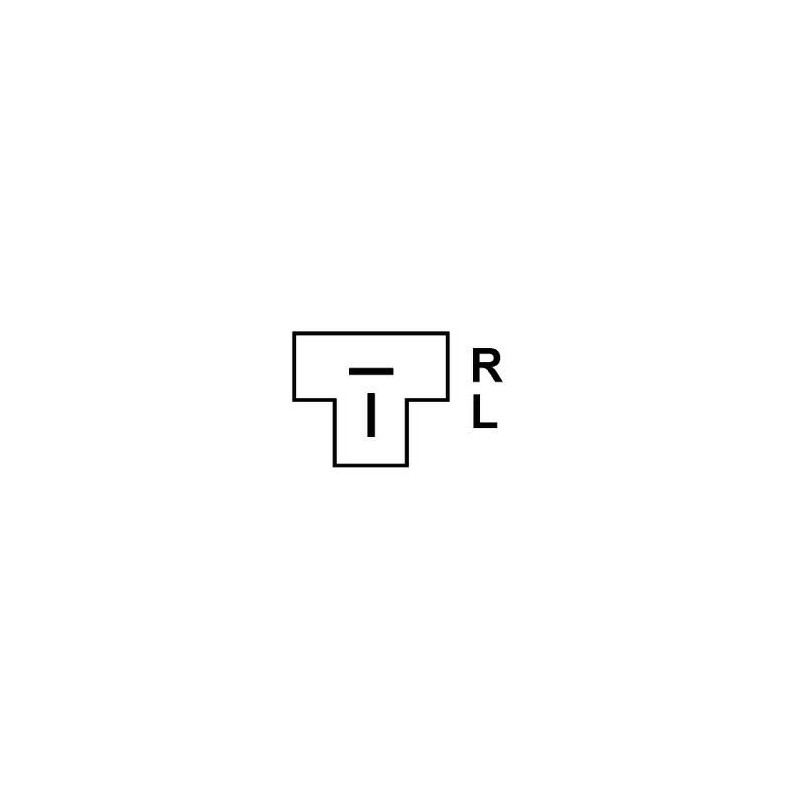

| o | Plug no. 1 | PL09 |
| Q | Tipo prise W | Plug |
| R | Total length mm | 167.00 |

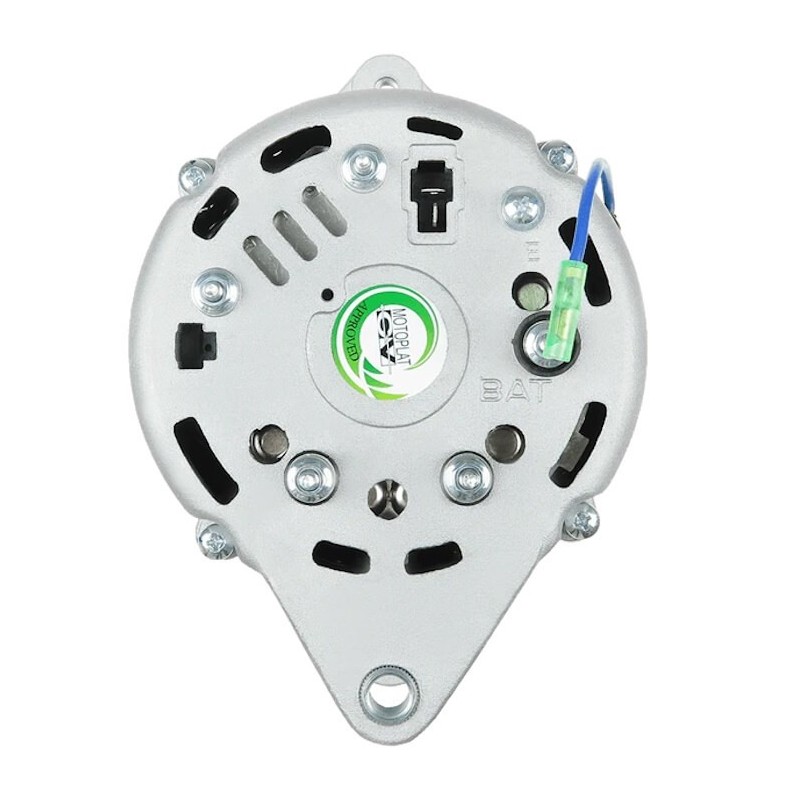

Earth-isolated alternator .
You must fix the negative battery terminal on one of the two M5 insulated screws / studs, located near the mounting foot / fixing point.
= HITACHI LR180-03, LR180-03A, LR180-03B, LR180 -03C
= YANMAR 119573-77200 / 119573-77201 / 129470-77200
PRESTOLITE 20150112
generic brand
| 3JH2 | AHI0059 | 1991 | YANMAR | 3cyl Diesel |
| 3JH2 | AHI0059 | 1992 | YANMAR | 3cyl Diesel |
| 3JH2 | AHI0059 | 1993 | YANMAR | 3cyl Diesel |
| 3JH2 | AHI0059 | 1994 | YANMAR | 3cyl Diesel |
| 3JH2 | AHI0059 | 1995 | YANMAR | 3cyl Diesel |
| 3JH2 | AHI0059 | 1996 | YANMAR | 3cyl Diesel |
| 3JH2 | AHI0059 | 1997 | YANMAR | 3cyl Diesel |
| 3JH2 | AHI0059 | 1998 | YANMAR | 3cyl Diesel |
| 3JH2 | AHI0059 | 1999 | YANMAR | 3cyl Diesel |
| 3JH2BE | AHI0059 | 1991 | YANMAR | 3cyl Diesel |
| 3JH2BE | AHI0059 | 1992 | YANMAR | 3cyl Diesel |
| 3JH2BE | AHI0059 | 1993 | YANMAR | 3cyl Diesel |
| 3JH2BE | AHI0059 | 1994 | YANMAR | 3cyl Diesel |
| 3JH2BE | AHI0059 | 1995 | YANMAR | 3cyl Diesel |
| 3JH2BE | AHI0059 | 1996 | YANMAR | 3cyl Diesel |
| 3JH2BE | AHI0059 | 1997 | YANMAR | 3cyl Diesel |
| 3JH2BE | AHI0059 | 1998 | YANMAR | 3cyl Diesel |
| 3JH2BE | AHI0059 | 1999 | YANMAR | 3cyl Diesel |
| 3JH2E | AHI0059 | 1991 | YANMAR | 3cyl Diesel |
| 3JH2E | AHI0059 | 1992 | YANMAR | 3cyl Diesel |
| 3JH2E | AHI0059 | 1993 | YANMAR | 3cyl Diesel |
| 3JH2E | AHI0059 | 1994 | YANMAR | 3cyl Diesel |
| 3JH2E | AHI0059 | 1995 | YANMAR | 3cyl Diesel |
| 3JH2E | AHI0059 | 1996 | YANMAR | 3cyl Diesel |
| 3JH2E | AHI0059 | 1997 | YANMAR | 3cyl Diesel |
| 3JH2E | AHI0059 | 1998 | YANMAR | 3cyl Diesel |
| 3JH2E | AHI0059 | 1999 | YANMAR | 3cyl Diesel |
| 3JH3 | AHI0059 | 1999 | YANMAR | 3cyl Diesel |
| 3JH3 | AHI0059 | 2000 | YANMAR | 3cyl Diesel |
| 3JH3 | AHI0059 | 2001 | YANMAR | 3cyl Diesel |
| 3JH3 | AHI0059 | 2002 | YANMAR | 3cyl Diesel |
| 3JH3 | AHI0059 | 2003 | YANMAR | 3cyl Diesel |
| 3JH3E | AHI0059 | 0 | YANMAR | 3cyl Diesel |
| 3JH3E-YEU | AHI0059 | 0 | YANMAR | 3cyl Diesel |
| 3JH4E | AHI0059 | 0 | YANMAR | 3cyl 100ci 1.64L |
| 3JH4E | AHI0059 | 3 | YANMAR | 3cyl 100ci 1.64L |
| 3YM20 | AHI0059 | 0 | YANMAR | 3cyl Diesel |
| 3YM20 | AHI0059 | 4 | YANMAR | 3cyl Diesel |
| 3YM30 | AHI0059 | 0 | YANMAR | 3cyl 68ci 1.116L |
| 3YM30 | AHI0059 | 4 | YANMAR | 3cyl 68ci 1.116L |
| 4JH-TE | AHI0059 | 0 | YANMAR | 4cyl Diesel |
| 4JH-TE | AHI0059 | 82 | YANMAR | 4cyl Diesel |
| 4JH2-CE | AHI0059 | 0 | YANMAR | 4cyl Diesel |
| 4JH2-CE | AHI0059 | 88 | YANMAR | 4cyl Diesel |
| 4JH2-DTE | AHI0059 | 0 | YANMAR | 4cyl Diesel |
| 4JH2-DTE | AHI0059 | 88 | YANMAR | 4cyl Diesel |
| 4JH2-E | AHI0059 | 0 | YANMAR | 4cyl Diesel |
| 4JH2-E | AHI0059 | 88 | YANMAR | 4cyl Diesel |
| 4JH2-HTE | AHI0059 | 0 | YANMAR | 4cyl Diesel |
| 4JH2-HTE | AHI0059 | 88 | YANMAR | 4cyl Diesel |
| 4JH2-TE | AHI0059 | 0 | YANMAR | 4cyl Diesel |
| 4JH2-TE | AHI0059 | 88 | YANMAR | 4cyl Diesel |
| 4JH2-UTE | AHI0059 | 0 | YANMAR | 4cyl Diesel |
| 4JH2-UTE | AHI0059 | 88 | YANMAR | 4cyl Diesel |
| 4JH3-CE | AHI0059 | 1994 | YANMAR | 4cyl Diesel |
| 4JH3-CE | AHI0059 | 1995 | YANMAR | 4cyl Diesel |
| 4JH3-CE | AHI0059 | 1996 | YANMAR | 4cyl Diesel |
| 4JH3-CE | AHI0059 | 1997 | YANMAR | 4cyl Diesel |
| 4JH3-CE | AHI0059 | 1998 | YANMAR | 4cyl Diesel |
| 4JH3-CE | AHI0059 | 1999 | YANMAR | 4cyl Diesel |
| 4JH3-CE | AHI0059 | 2000 | YANMAR | 4cyl Diesel |
| 4JH3-CE | AHI0059 | 2001 | YANMAR | 4cyl Diesel |
| 4JH3-CE | AHI0059 | 2002 | YANMAR | 4cyl Diesel |
| 4JH3-CE | AHI0059 | 2003 | YANMAR | 4cyl Diesel |
| 4JH3-DTE | AHI0059 | 1994 | YANMAR | 4cyl Diesel |
| 4JH3-DTE | AHI0059 | 1995 | YANMAR | 4cyl Diesel |
| 4JH3-DTE | AHI0059 | 1996 | YANMAR | 4cyl Diesel |
| 4JH3-DTE | AHI0059 | 1997 | YANMAR | 4cyl Diesel |
| 4JH3-DTE | AHI0059 | 1998 | YANMAR | 4cyl Diesel |
| 4JH3-DTE | AHI0059 | 1999 | YANMAR | 4cyl Diesel |
| 4JH3-DTE | AHI0059 | 2000 | YANMAR | 4cyl Diesel |
| 4JH3-DTE | AHI0059 | 2001 | YANMAR | 4cyl Diesel |
| 4JH3-DTE | AHI0059 | 2002 | YANMAR | 4cyl Diesel |
| 4JH3-DTE | AHI0059 | 2003 | YANMAR | 4cyl Diesel |
| 4JH3-HTE | AHI0059 | 1994 | YANMAR | 4cyl Diesel |
| 4JH3-HTE | AHI0059 | 1995 | YANMAR | 4cyl Diesel |
| 4JH3-HTE | AHI0059 | 1996 | YANMAR | 4cyl Diesel |
| 4JH3-HTE | AHI0059 | 1997 | YANMAR | 4cyl Diesel |
| 4JH3-HTE | AHI0059 | 1998 | YANMAR | 4cyl Diesel |
| 4JH3-HTE | AHI0059 | 1999 | YANMAR | 4cyl Diesel |
| 4JH3-HTE | AHI0059 | 2000 | YANMAR | 4cyl Diesel |
| 4JH3-HTE | AHI0059 | 2001 | YANMAR | 4cyl Diesel |
| 4JH3-HTE | AHI0059 | 2002 | YANMAR | 4cyl Diesel |
| 4JH3-HTE | AHI0059 | 2003 | YANMAR | 4cyl Diesel |
| 4JH3-TCE | AHI0059 | 1994 | YANMAR | 4cyl Diesel |
| 4JH3-TCE | AHI0059 | 1995 | YANMAR | 4cyl Diesel |
| 4JH3-TCE | AHI0059 | 1996 | YANMAR | 4cyl Diesel |
| 4JH3-TCE | AHI0059 | 1997 | YANMAR | 4cyl Diesel |
| 4JH3-TCE | AHI0059 | 1998 | YANMAR | 4cyl Diesel |
| 4JH3-TCE | AHI0059 | 1999 | YANMAR | 4cyl Diesel |
| 4JH3-TCE | AHI0059 | 2000 | YANMAR | 4cyl Diesel |
| 4JH3-TCE | AHI0059 | 2001 | YANMAR | 4cyl Diesel |
| 4JH3-TCE | AHI0059 | 2002 | YANMAR | 4cyl Diesel |
| 4JH3-TCE | AHI0059 | 2003 | YANMAR | 4cyl Diesel |
| 4JH3-TE | AHI0059 | 1994 | YANMAR | 4cyl Diesel |
| 4JH3-TE | AHI0059 | 1995 | YANMAR | 4cyl Diesel |
| 4JH3-TE | AHI0059 | 1996 | YANMAR | 4cyl Diesel |
| 4JH3-TE | AHI0059 | 1997 | YANMAR | 4cyl Diesel |
| 4JH3-TE | AHI0059 | 1998 | YANMAR | 4cyl Diesel |
| 4JH3-TE | AHI0059 | 1999 | YANMAR | 4cyl Diesel |
| 4JH3-TE | AHI0059 | 2000 | YANMAR | 4cyl Diesel |
| 4JH3-TE | AHI0059 | 2001 | YANMAR | 4cyl Diesel |
| 4JH3-TE | AHI0059 | 2002 | YANMAR | 4cyl Diesel |
| 4JH3-TE | AHI0059 | 2003 | YANMAR | 4cyl Diesel |
| 4JH3E | AHI0059 | 1994 | YANMAR | 4cyl Diesel |
| 4JH3E | AHI0059 | 1995 | YANMAR | 4cyl Diesel |
| 4JH3E | AHI0059 | 1996 | YANMAR | 4cyl Diesel |
| 4JH3E | AHI0059 | 1997 | YANMAR | 4cyl Diesel |
| 4JH3E | AHI0059 | 1998 | YANMAR | 4cyl Diesel |
| 4JH3E | AHI0059 | 1999 | YANMAR | 4cyl Diesel |
| 4JH3E | AHI0059 | 2000 | YANMAR | 4cyl Diesel |
| 4JH3E | AHI0059 | 2001 | YANMAR | 4cyl Diesel |
| 4JH3E | AHI0059 | 2002 | YANMAR | 4cyl Diesel |
| 4JH3E | AHI0059 | 2003 | YANMAR | 4cyl Diesel |
| 4JHE | AHI0059 | 0 | YANMAR | 4cyl Diesel |
| 4LH-DTE | AHI0059 | 0 | YANMAR | 4cyl Diesel |
| 4LH-DTE | AHI0059 | 87 | YANMAR | 4cyl Diesel |
| 4LH-HTE | AHI0059 | 0 | YANMAR | 4cyl Diesel |
| 4LH-HTE | AHI0059 | 87 | YANMAR | 4cyl Diesel |
| 4LH-STE | AHI0059 | 0 | YANMAR | 4cyl Diesel |
| 4LH-STE | AHI0059 | 87 | YANMAR | 4cyl Diesel |
| 4LH-TE | AHI0059 | 0 | YANMAR | 4cyl Diesel |
| 4LHA-DTE | AHI0059 | 0 | YANMAR | 4cyl Diesel |
| 4LHA-DTZ | AHI0059 | 0 | YANMAR | 4cyl Diesel |
| 4LHA-HTE | AHI0059 | 0 | YANMAR | 4cyl Diesel |
| 4LHA-HTZE | AHI0059 | 0 | YANMAR | 4cyl Diesel |
| 4LHA-STE | AHI0059 | 0 | YANMAR | 4cyl Diesel |
| 4LHA-STZE | AHI0059 | 0 | YANMAR | 4cyl Diesel |
| 6LY-ST | AHI0059 | 0 | YANMAR | 6cyl Diesel |
| 6LY-ST | AHI0059 | 92 | YANMAR | 6cyl Diesel |
| 6LY-STE | AHI0059 | 0 | YANMAR | 6cyl Diesel |
| 6LY-STE | AHI0059 | 92 | YANMAR | 6cyl Diesel |
| 6LY-STM | AHI0059 | 0 | YANMAR | 6cyl Diesel |
| 6LY-STM | AHI0059 | 92 | YANMAR | 6cyl Diesel |
| 6LY-STZY | AHI0059 | 0 | YANMAR | 6cyl Diesel |
| 6LY-STZY | AHI0059 | 92 | YANMAR | 6cyl Diesel |
| 6LY-UT | AHI0059 | 0 | YANMAR | 6cyl Diesel |
| 6LY-UT | AHI0059 | 92 | YANMAR | 6cyl Diesel |
| 6LY-UTE | AHI0059 | 0 | YANMAR | 6cyl Diesel |
| 6LY-UTE | AHI0059 | 92 | YANMAR | 6cyl Diesel |
| 6LY-UTM | AHI0059 | 0 | YANMAR | 6cyl Diesel |
| 6LY-UTM | AHI0059 | 92 | YANMAR | 6cyl Diesel |
| 6LY-UTZY | AHI0059 | 0 | YANMAR | 6cyl Diesel |
| 6LY-UTZY | AHI0059 | 92 | YANMAR | 6cyl Diesel |
| 6LY2-STE | AHI0059 | 0 | YANMAR | 6cyl Diesel |
| 6LY2-STE | AHI0059 | 92 | YANMAR | 6cyl Diesel |
| 6LYA-STE | AHI0059 | 0 | YANMAR | 6cyl Diesel |
| 6LYA-STE | AHI0059 | 92 | YANMAR | 6cyl Diesel |
| 6LYA-UTE | AHI0059 | 0 | YANMAR | 6cyl Diesel |
| 6LYA-UTE | AHI0059 | 92 | YANMAR | 6cyl Diesel |
| 6LYM-STE | AHI0059 | 0 | YANMAR | 6cyl Diesel |
| 6LYM-STE | AHI0059 | 92 | YANMAR | 6cyl Diesel |
| 6LYM-UTE | AHI0059 | 0 | YANMAR | 6cyl Diesel |
| 6LYM-UTE | AHI0059 | 92 | YANMAR | 6cyl Diesel |
| KBW-20 | AHI0059 | 0 | YANMAR | |
| KBW-21 | AHI0059 | 0 | YANMAR | |
| KM3A | AHI0059 | 0 | YANMAR | |
| KM5A | AHI0059 | 0 | YANMAR | |
| UJH2E | AHI0059 | 0 | YANMAR |
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
