Alternator NEW replacing VALEO a000b0341 / M39590

Display all pictures

Alternator NEW replacing VALEO a000b0341 / M39590

Reference: w113633

Condition: New product

1 Item Items

Crusader Marine 39200, MANDO A000B0341, TA000B0341, MOTOROLA 8MR2199K, 8MR2199KS, NEW HOLLAND 86536918, PRESTOLITE 110-656, YAMAHA 19-1400-10

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

More info
Data sheet

More info

Information:

Electrical Information
Voltage		14
Amp		55

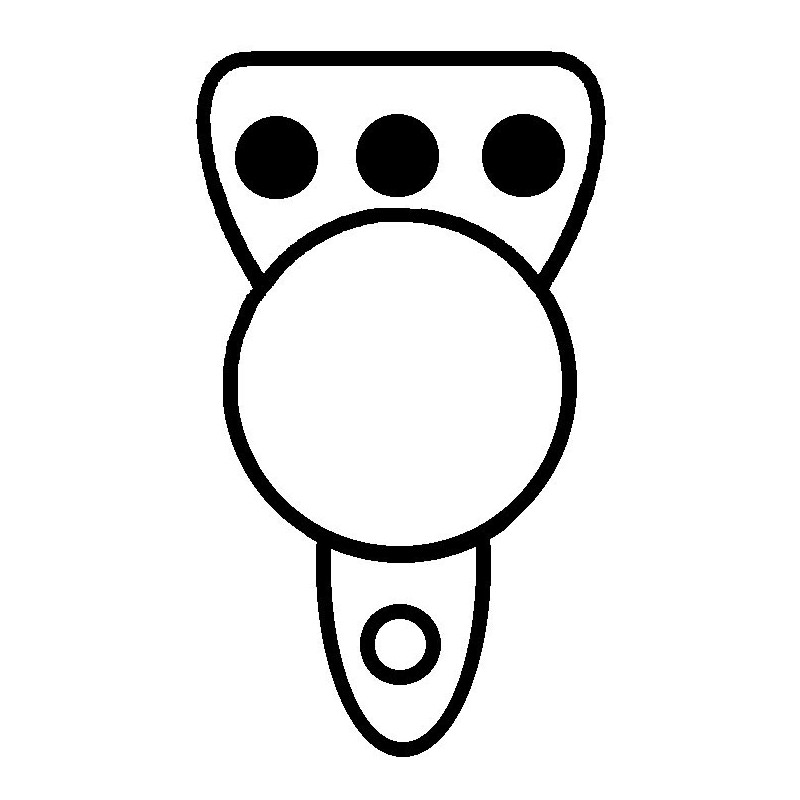

Physical Information
D	Bracket hole	12.90
G	Belt. adj. bracket hole	5/16"
B	Width/holder arm	27.40
E	Belt. adj. brackethole pos.	55
E	Ceinture from soutien réglable/ pos. 2	60
H	Pulley dia.	73.25
A	Pulley dist.	56.00
i	Grooves/pulley	1
j	Radius	83.00
j	Radius 2	83.00
j	Radius 3	83.00
j	Radius 4	83.00
k	Position B +	1/4" UNC
n	Rotation	COUNTER CLOCKWISE
o	Plug no. 1	PL_NA
G	Belt. adj. bracket hole 2 2	5/16"
R	Total length mm	168.00
E	Belt. adj. brackethole pos. 3	5
G	Belt. adj. bracket hole 3	5/16"

Replacing
a000b0341	VALEO
M39590	VALEO

generic Brand

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

Data sheet

Poulie	serpentine
Connecteur régulateur	PL6
Ampérage	140
Voltage	14
