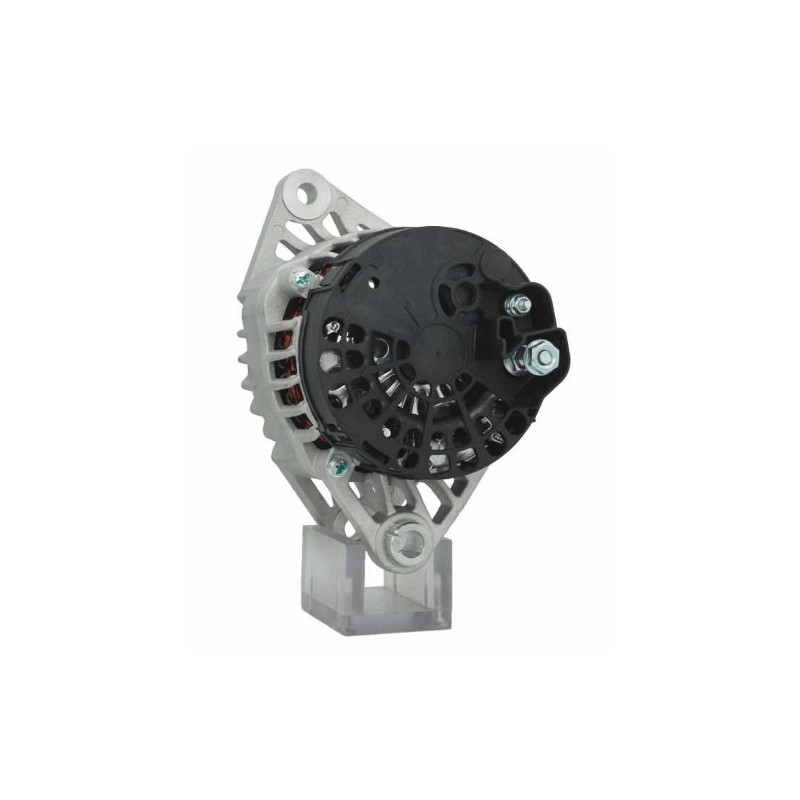

Alternator replacing 101210-0870 / 101210-0871 / DAN1365 / 51727338 / 51859058
w114494
Alternato replacing DENSO101210-0870 / 101210-0871 / DAN1365 / FIAT 51727338 / 51859058
DELCO REMY DRA0713 / LUCAS LRA03264
NO CORE EXCHANGE NEEDED
Features
Electrical information | ||
---|---|---|
Voltage | 14 | |
Amp | 90 |
Pulley | SP/FW | |
Regulator type | IR |
Physical information | ||
---|---|---|
A | Pulley dist. | 45.00 |
B | Width/holder arm | 17.00 |
C | Mount. bracket dist. | 54.50 |
D | Bracket hole | 12.20 |
E | Belt. adj. brackethole pos. | 3 |
G | Belt. adj. bracket hole | 11.00 |
H | Pulley dia. | 52.00 |
J | Radius | 90.00 |
J | Radius 2 | 90.00 |
K | B+ position | M8 |
K | Position/B+ in min. | 15 |
N | Rotation | CW |
O | Plug no. 1 | PL_NA |
R | Total length mm | 201.00 |
generic brand
replacing
1012100870 | DENSO | |
1012100871 | DENSO | |
105513090 | PSH | |
114494 | Cargo | |
12049230 | EuroTec | |
285876 | Elstock | |
51727338 | FIAT | |
51859058 | FIAT | |
57299 | EAI | |
63377016 | MAGNETI MARELLI | |
CA2048IR | HC | |
DAN1365 | DENSO | |
DRA0713 | DELCO REMY | |
LRA03264 | LUCAS | |
MAN7016 | MAGNETI MARELLI |
