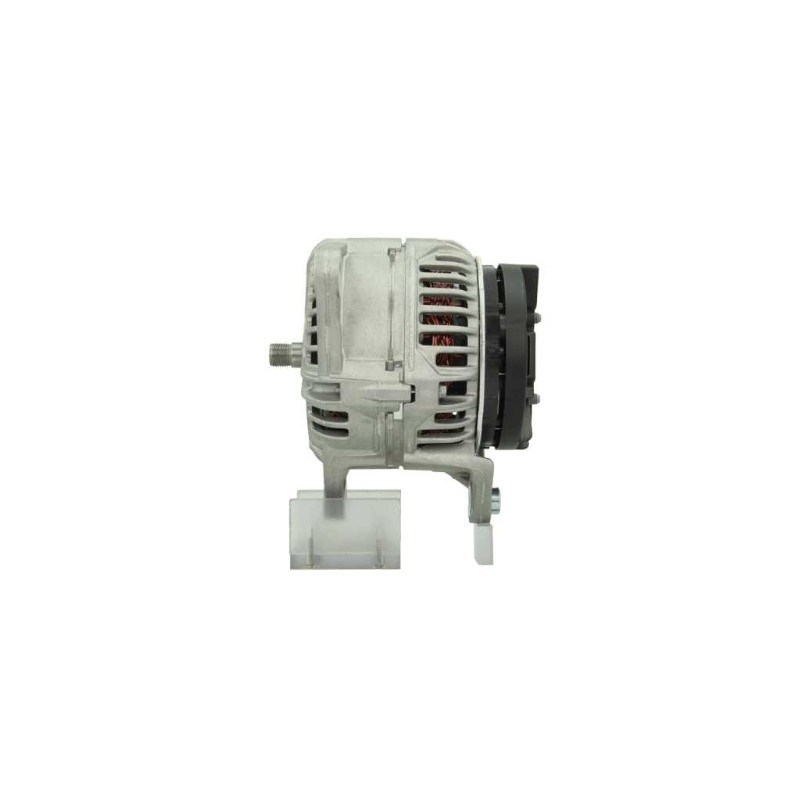

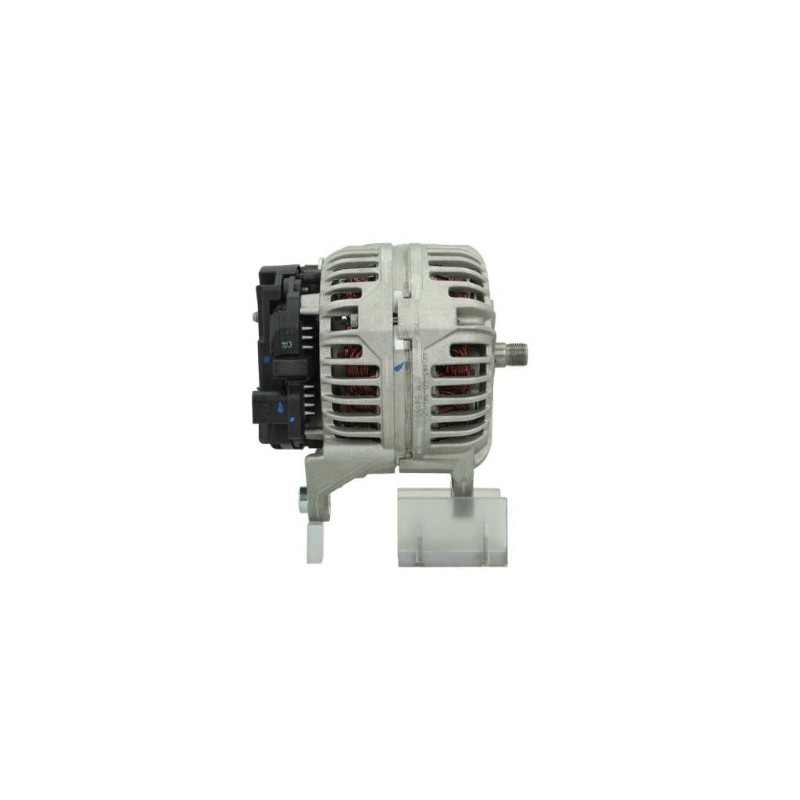

Alternator NEW replacing BOSCH 0124525125 / 504204173 / LRA03060
| 20101653OE | REAL |
| 2010356 | SANDO |
| 28-5672 | ELSTOCK |
| 504204173 | FIAT |
| 554031RIB | KUHNER |
| 57147 | EAI |
| 89215620 | POWERMAX |
| AEK3060 | AUTOELECTRO |
| ALT123560 | SIOM |
| ALTL502 | 3EFFE |
| ALTL502RR | 3EFFE |
| BOS0124525125 | WOODAUTO |
| CAL10356GS | CASCO |
| DRA0245 | DELCO |
| LRA03060 | LUCAS |
| LRA3060 | LUCAS |
WITHOUT PULLEY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | 11.00 |
| B | Width/holder arm | 14.00 |
| E | Belt. adj. brackethole pos. | 10 |
| C | Mount. bracket dist | 82.00 |
| H | Pulley dia. | 55.00 |
| A | Pulley dist. | 38.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 94.00 |
| j | Radius 2 | 96.00 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL61 |
Replacing | |
|---|---|
| 0124525125 | BOSCH |
| 504204173 | FIAT |
| 0124525125 |
| 2205643 |
| 23836 |
| 285672 |
| 504204173 |
| 505546150 |
| 9090518F |
| 930245 |
| DRA0245 |
| LRA03060 |
Generic Brand
for
| Brand | Model | Typ | Year |
| CITROEN | Jumper 3.0 HDi | [F1CE0481D] | 01.2006-12.2011 |
| FIAT | Ducato 15 160 3.0 JTD | [F1CE0481D] | 01/01/06 |
| FIAT | Ducato 20 150 3.0 JTD | [F1CE3481N] | 01/01/10 |
| FIAT | Ducato 17 150 3.0 JTD | [F1CE3481N] | 01/01/10 |
| FIAT | Ducato 20 160 3.0 JTD | [F1CE3481M] | 01/01/10 |
| FIAT | Ducato 17 160 3.0 JTD | [F1CE0481D] | 01/01/06 |
| FIAT | Ducato 11 160 3.0 JTD | [F1CE0481D] | 01/01/06 |
| PEUGEOT | Boxer 3.0 HDi | [F1CE0481D] | 01/01/06 |
