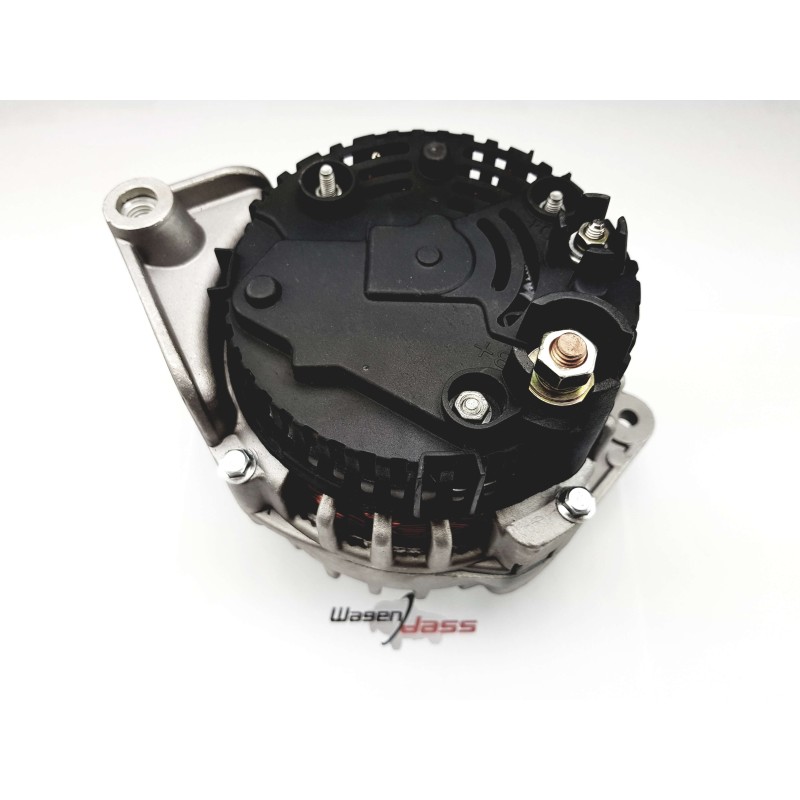

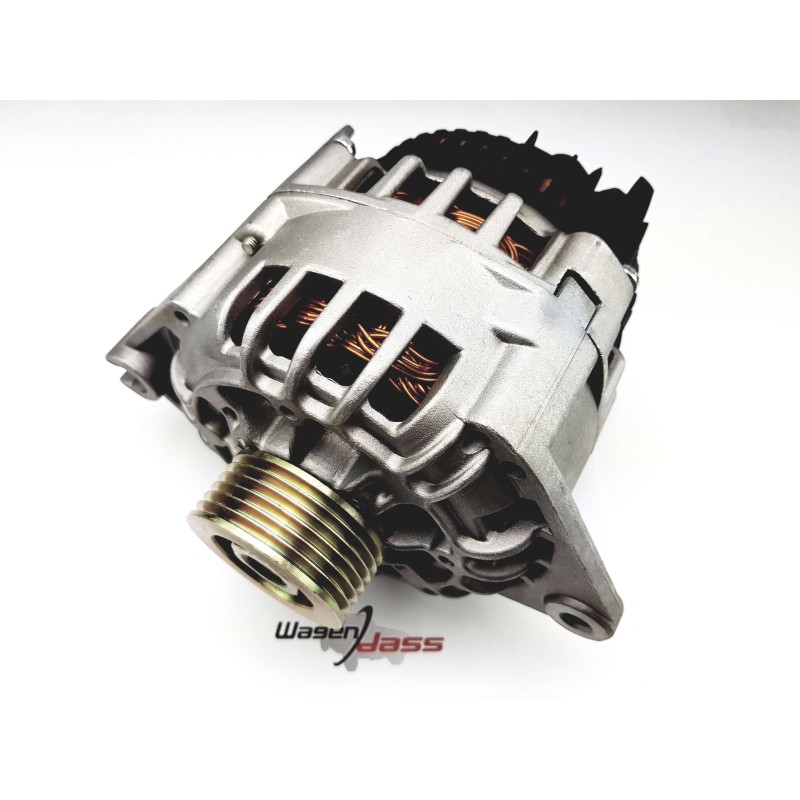

Alternator replacing VALEO SG9B077 / A13VI81 / A13VI280

Information:

Voltage 14

Amp 80

D = Bracket hole 10.30

G = Belt. adj. bracket hole 8.40

B = Width/holder arm 26.10

E = Belt. adj. brackethole pos. 5

C = Mount. bracket dist 66.70

H = Pulley dia. 56.00

A = Pulley dist. 42.00

Grooves/pulley 6

J = Radius 90.00

J = Radius 90.00

Position B + M8

Rotation Cr

Plug no. 1 PL_NA

Fan If

Pulley Serpentine Pulley

R = Total length mm 179.00

Generic Brand

= BOSCH 098603993

= DELCO REMY DRA3385

= VALEO SG9B077 / A13VI81 / A13VI280 / A13VI189 / 2542880 / 2542417 / 2541950 / 2541703B / 2541703 / 439023 / 436476

= MITSUBISHI A2TA0291F / A2TA0291D / A2TA0291C / A2TA0291B / A2TA0291 / A2T37691A / A2T37691

= ISKRA AAK5360 / 11.203.094 / 11.201.094 / IA1021

= FORD F6PU10346SA / F6PU10300SA

= MOTOROLA 2541950B

= PEUGEOT 9607641280 / 9611365980 / 96113668 / 9611366880 / 9611369580 / 9612257180 / 9631318580 / 9655249280

= FIAT 9611366880 / 9611369580 / 9612257180 / 9631318580 / 9655249280

                            NO CORE EXCHANGE NEEDED

                                                  TWO YEARS WARRANTY
