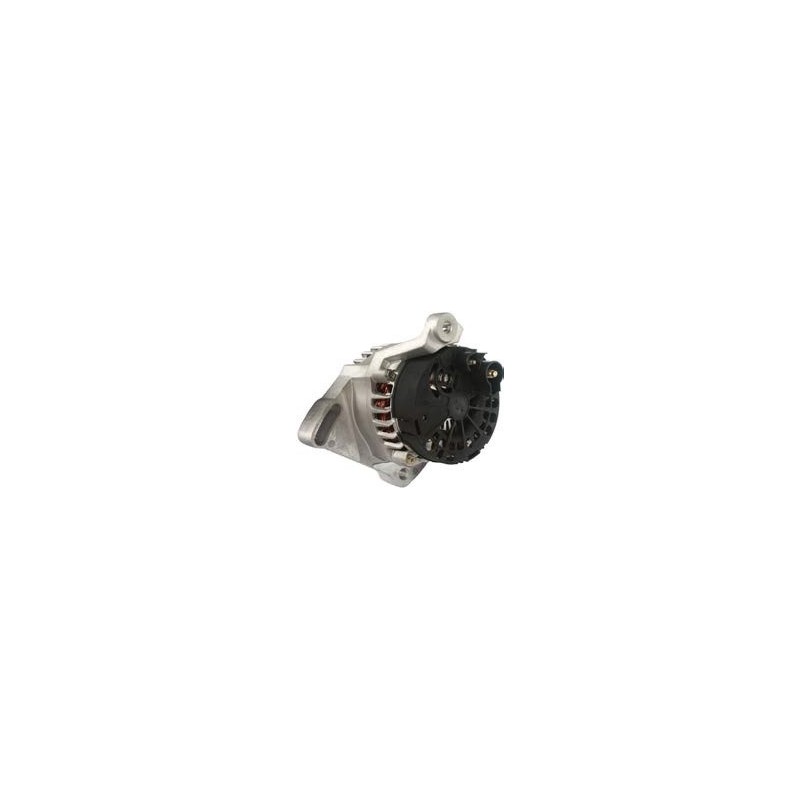

Alternator replacing MAGNETI MARELLI 63321712 / 63321848 / 63321600
Alternator replacing MAGNETI MARELLI 63321712 / 63321848 / 63321600
Alternator replacing MAGNETI MARELLI 63321712 / 63321848 / 63321600
Alternator replacing MAGNETI MARELLI 63321712 / 63321848 / 63321600
Alternator replacing MAGNETI MARELLI 63321712 / 63321848 / 63321600
Previous
Next
Alternator replacing MAGNETI MARELLI 63321712 / 63321848 / 63321600
Alternator replacing MAGNETI MARELLI 63321712 / 63321848 / 63321600
Alternator replacing MAGNETI MARELLI 63321712 / 63321848 / 63321600
Alternator replacing MAGNETI MARELLI 63321712 / 63321848 / 63321600
Alternator replacing MAGNETI MARELLI 63321712 / 63321848 / 63321600

Alternator replacing MAGNETI MARELLI 63321712 / 63321848 / 63321600

W505513065

Alternator NEW for CITROEN, FIAT, FORD, LANCIA,
PEUGEOT

= FIAT 43420960 / 46407644 / 46407647 / 46419297 / 46420960 / 46530060 / 46758244 / 46800158 / 5895028 / 46800157

= VALEO 2541728 / 2541728A / a11vi46

= MAKO 063321600020

NO CORE EXCHANGE NEEDED

Read more
€109.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Information:

Rotation Cr

Amp 65

Voltage 14

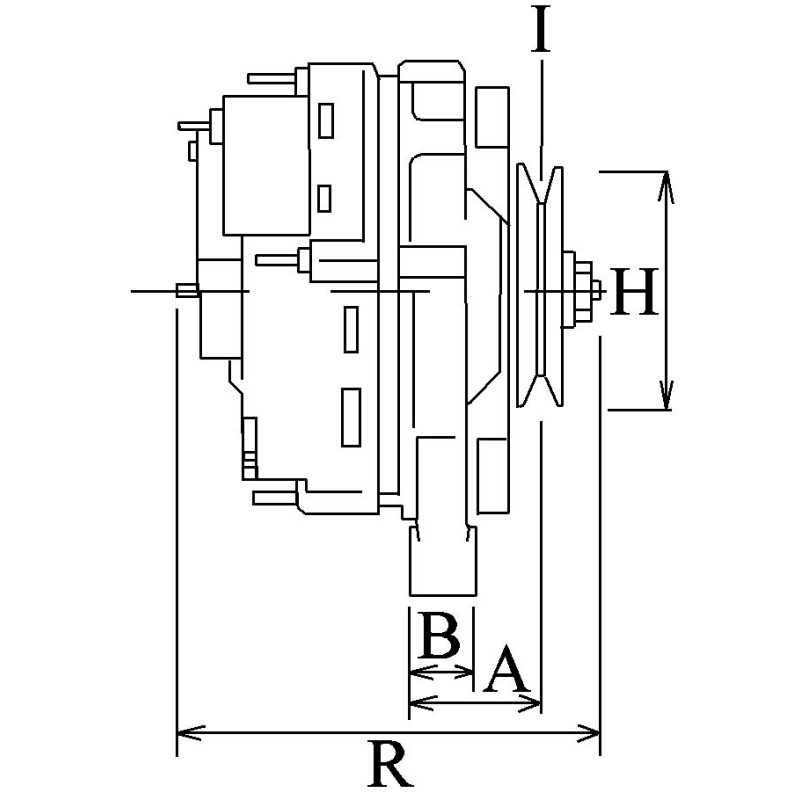

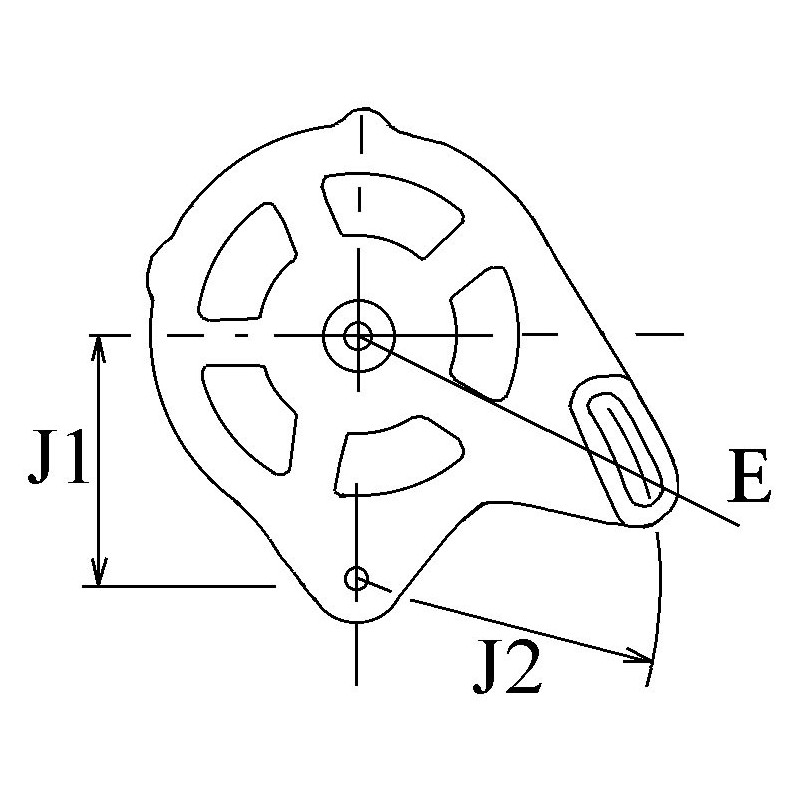

D = Bracket hole 10.25

G = Belt. adj. bracket hole 12.00/45.00

B = Width/holder arm 32.00

E = Belt. adj. brackethole pos. 15

H = Pulley dia. 60.00

A = Pulley dist. 54.80

Grooves/pulley 4

J = Radius 85.00

J = Radius 2 79.50/105.50

Position B + M8

Plug no. 1 PL_NA

Fan If

Pulley Serpentine Pulley

Tipo regulator Ir

Info produit Bn

R = Total length mm 189.50

Generic Brand

01243043
063321600010
0986039470
0986039471
0986080540
1022118220
1022118220CO
1022118220SP
11209432
282504
436481
439030
46407644
46420960
46530060
46800158
46843093
505513065
505513065050
505513065055
505513065119
505513065215
505513065260
505513065260001
505513065260002
505513065260003
505513065260004
505513065260005
505513065260006
505513065260007
505513065260101
505513065260102
505513065261
505513065265
505513065310
505513065500
505513065550
505513065551
505513065900
5277
5277SP
541728
63320200
63320219
63320253
63321200
63321200CO
63321233
63321233CO
63321270
63321270CO
63321600
63321600+
63321600CO
63321600R
63321712
63321712CO
63321712SP
63321848
63321848CO
63321848SP
71721152
8EL011711061
8EL012430431
8EL731724001
8EL749554001
9039471F
A11VI46
ALT4216
ALT9017sa
ALT9021sa
CA1843
CA1843IR
CA890IR
DAN511
DAN625
DRA3353
F032UA0033
F032UA0033K2G
HCA1843IR
HCA890IR
IA9029
KTR1011026130
LRB00148
MAN640
MS1022118220
MSY633216000
W27041

fits  :

Brand Model Typ Year
CITROEN Jumpy 1.6 [1580SPI] 01/10/95
CITROEN Jumpy 1.6 [220A2.000] 01/10/95
FIAT Palio 1.2 [178B7.045] 01.1997-12.2002
FIAT Punto 1.1 [176B2.000] 01.1995-08.1999
FIAT Panda 1.2 4x4 [188A4.000] 01/10/04
FIAT Punto 1.1 i.e. [176A6.000] 09.1993-09.1999
FIAT Palio 1.2 [178C4.066] 01.1997-12.2002
FIAT Punto 1.1 i.e. [176B2.000] 05.1997-09.1999
FIAT Seicento 1.1 [176B2.000] 01/01/98
FIAT Seicento 1.1 [176B2.000] 01.1998-12.2000
FIAT Punto 1.2 [176A7.000] 01/01/94
FIAT Palio 1.2 [178E2.000] 01.1997-12.2002
FIAT Doblo 1.2 i.e. 8V [223A5.000] 03.2001-10.2001
FIAT Doblo 1.2 i.e. 8V [223A5.000] 01/03/01
FIAT Seicento 1.1 [187A1.000] 01/01/98
FIAT Seicento 1.1 [187A1.000] 01.1998-12.2000
FIAT Palio 1.2 [178E2.000] 01.1999-12.2002
FIAT Punto 1.2 [176A8.000] 01.1994-09.1999
FIAT Punto 1.2 [176B1.000] 01/05/95
FIAT Punto 55 1.1 [176A6.000] 01.1993-12.1999
FIAT Palio 1.2 [188A4.000] 01.1997-12.2002
FIAT Punto 1.2 [176B4.000] 06.1995-09.1999
FIAT Siena 1.2 [188A5.000] 01/01/01
FIAT Punto 1.2 [188A4.000] 09.1999-04.2002
FIAT Punto 55 1.1 [176B2.000] 01.1993-12.1999
FIAT Punto 60 1.2 [176A7.000] 01.1993-12.1997
FIAT Panda 1.1 [187A.1000] 01/09/03
FIAT Strada 1.2 [178B5.000] 06.1999-04.2002
FIAT Punto 60 1.2 [176B1.000] 01.1993-12.1999
FIAT Punto 1.2 16V [176B9.000] 04.1997-09.1999
FIAT Punto 1.2 16V [176B9.000] 04.1997-06.2000
FIAT Palio 1.2 [178B5.000] 04.1996-02.2001
FIAT Punto 60 1.2 [176B4.000] 01.1993-12.1999
FIAT Palio 1.2 [178B5.000] 09.1997-09.2001
FIAT Punto 1.4 Turbo GT [176B6.000] 09.1996-09.1999
FIAT Punto 75 1.2 [176A8.000] 01.1993-12.1999
FIAT Punto 1.2 8V [188A4.000] 01.1999-12.2003
FORD Sierra 1.6 [LCS] 08.1982-12.1986
FORD Sierra 1.6 [LCT] 08.1982-12.1986
FORD Sierra 1.6 [LSD] 08.1982-12.1986
LANCIA Y 1.1 [176B2.000] 11.1995-06.2000
LANCIA Y 1.1 i.e. [176B2.000] 01.1997-12.2000
LANCIA Y 1.2 [188A4.000] 03.1996-09.2003
LANCIA Y 1.2 [840A3.000] 03.1996-09.2003
LANCIA Y 1.2 i.e. [188A4.000] 01.1996-12.2000
LANCIA Y 1.2 i.e. [840A3.000] 01.1996-12.2000
PEUGEOT Expert 1.9 TD [DHX] 01/02/96
