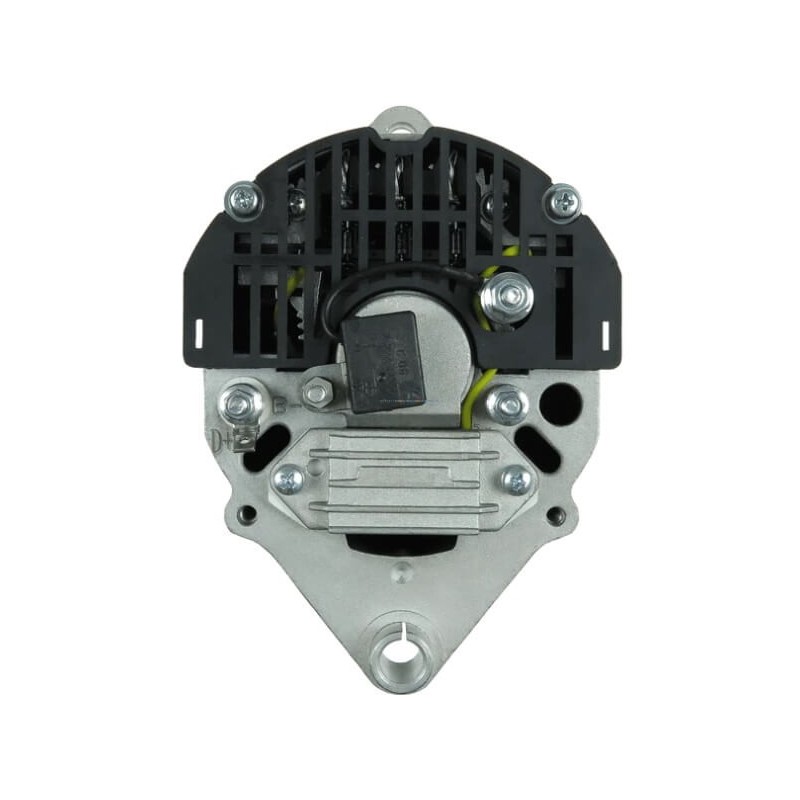

Alternator replacing 0120489146 / 0120489147 / 0120489763
Alternator replacing 0120489146 / 0120489147 / 0120489763
Previous
Next
Alternator replacing 0120489146 / 0120489147 / 0120489763
Alternator replacing 0120489146 / 0120489147 / 0120489763

Alternator replacing 0120489146 / 0120489147 / 0120489763

wa9221

0120489770 BOSCH
0986030970 BOSCH
0986030971 BOSCH
63305236 MAGNETI MARELLI
63305506 MAGNETI MARELLI
63305526 MAGNETI MARELLI
63305536 MAGNETI MARELLI
63307236 MAGNETI MARELLI
63307506 MAGNETI MARELLI
63307526 MAGNETI MARELLI
63307536 MAGNETI MARELLI
63307821 MAGNETI MARELLI
63307841 MAGNETI MARELLI
Read more
€109.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Voltage [ V ] 12
Amp. [ A ] 65
Size A [ mm ] 50.50
Size B [ mm ] 17.00
Size C [ mm ] 72.00
G [ qty. ] 1
O.D.1 [ mm ] 44.00
Pulley AP
D.1 [ mm ] 11.00
D.2 [ mm ] 12.50
D.3 [ mm ] 12.50
L.1 [ mm ] 176.00
Plug PL_9104

generic brand

replacing

0120489106 BOSCH
0120489107 BOSCH
0120489146 BOSCH
0120489147 BOSCH
0120489763 BOSCH
0120489770 BOSCH
0986030970 BOSCH
0986030971 BOSCH
11.201.327 ISKRA / LETRIKA
116760506100 ALFA ROMEO
12580 LESTER
12583 LESTER
12584 LESTER
13204 LESTER
13205 LESTER
13206 LESTER
160-89125 DIXIE
20130207 PRESTOLITE
30255RI KUHNER
30255RIM KUHNER
30316RI KUHNER
30316RIL KUHNER
30316RIM KUHNER
30355RI KUHNER
30355RIL KUHNER
30355RIM KUHNER
30680353 MAGNETI MARELLI
432868 VALEO
433105 VALEO
436106 VALEO
46231786 FIAT
4721589 FIAT
4721591 FIAT
4721592 FIAT
4731839 FIAT
4750583 FIAT
4808503 FIAT
4808505 FIAT
510868 VALEO
63305236 MAGNETI MARELLI
63305506 MAGNETI MARELLI
63305526 MAGNETI MARELLI
63305536 MAGNETI MARELLI
63307236 MAGNETI MARELLI
63307506 MAGNETI MARELLI
63307526 MAGNETI MARELLI
63307536 MAGNETI MARELLI
63307821 MAGNETI MARELLI
63307841 MAGNETI MARELLI
63321021 MAGNETI MARELLI
63321041 MAGNETI MARELLI
77515411 FIAT
8EL725718-001 HELLA
943320023 MAGNETI MARELLI
943321041 MAGNETI MARELLI
943321042 MAGNETI MARELLI
A-6247 DIXIE
AAK4153 ISKRA / LETRIKA
ALT2070 SIOM
ALT321130 SIOM
ALTL276 3EFFE
AT050600108 ALFA ROMEO
CA316IR HC PARTS
DRA5630 DELCO
GA321042-A GPARTS
IA0327 ISKRA / LETRIKA
LRA00459 LUCAS
LRA00910 LUCAS
LRA02117 LUCAS
LRA2117 LUCAS
LRA459 LUCAS
LRA910 LUCAS
MAHMG156 WOODAUTO
MG 156 MAHLE
MG156 MAHLE
UD13063A AS-PL
A9221 AS-PL
210209 ERA
210248 ERA
210313 ERA

for

Brand Model Type Year
ALFA ROMEO 10AR6 2.5 [8144.61.200] 04.1985-02.1986
ALFA ROMEO 10AR6 2.5 [8144.67.220] 03.1986-12.1989
ALFA ROMEO 13AR6 2.5 [8144.61.200] 04.1985-02.1986
ALFA ROMEO 14AR6 2.5 [8144.67.220] 03.1986-12.1989
ALFA ROMEO 14AR6 2.5 Turbo [8144.21.220] 09.1986-12.1989
BMW D190 01.1982-01.1986
CASE 2120 [3-183] 01.1990-12.1992
CASE 2130 [3-183] 01.1990-12.1992
CASE 2140 [4-244] 01.1988-12.1992
CASE 2150 [4-244] 01.1990-12.1992
CASE 2150 E [4-244] 01.1990-12.1992
FIAT 131 2.5 D [8144.61] 04.1979-01.1984
FIAT 131 2.5 D [8144.61] 06.1983-12.1984
FIAT Ducato 2.0 D [8144.61.220] 01.1986-06.1990
FIAT Campagnola 2.5 D [8142.61] 06.1979-10.1986
FIAT 132 2.0 D [8144.65] 03.1978-03.1979
FIAT Daily 28F8 2.5 [8140.61.204] 04.1978-07.1982
FIAT Daily 30F8 2.5 [8140.61] 04.1978-12.1981
FIAT Daily 32F8 2.5 [8140.61] 04.1978-10.1980
FIAT Daily 35F8 2.5 [8140.61] 04.1978-12.1982
FIAT Daily 40F8 2.5 [8140.61] 04.1978-12.1982
FIAT Marengo 2.5 D [8144.61] 05.1980-09.1983
FIAT Ducato 2.5 [S8144.67.220] 01.1986-06.1990
FIAT Ducato 2.5 D [8144.61.200] 05.1981-12.1985
FIAT Ducato 2.5 D [8144.67.220] 01.1986-06.1990
FIAT Ducato 2.5 D 4x4 [8144.67.220] 01/01/89
FIAT Argenta 2.5 D [8144.61] 06.1981-05.1983
FIAT Ducato 2.5 DT [8140.27.2100] 01/07/90
FIAT Ducato 2.5 DT [8144.21.220D.I.] 01.1986-06.1990
FIAT Ducato 2.5 DT [8144.21.220D.I] 01.1986-06.1990
FIAT Ducato 2.5 DT 4x4 [S8144.21.220D] 01.1986-06.1990
FIAT 131 2.0 D [8144.65] 03.1978-01.1984
FIAT 131 2.5 D [8144.61] 08.1978-03.1979
SEAT 131 2.4 D [8144.61] 06.1982-12.1984
