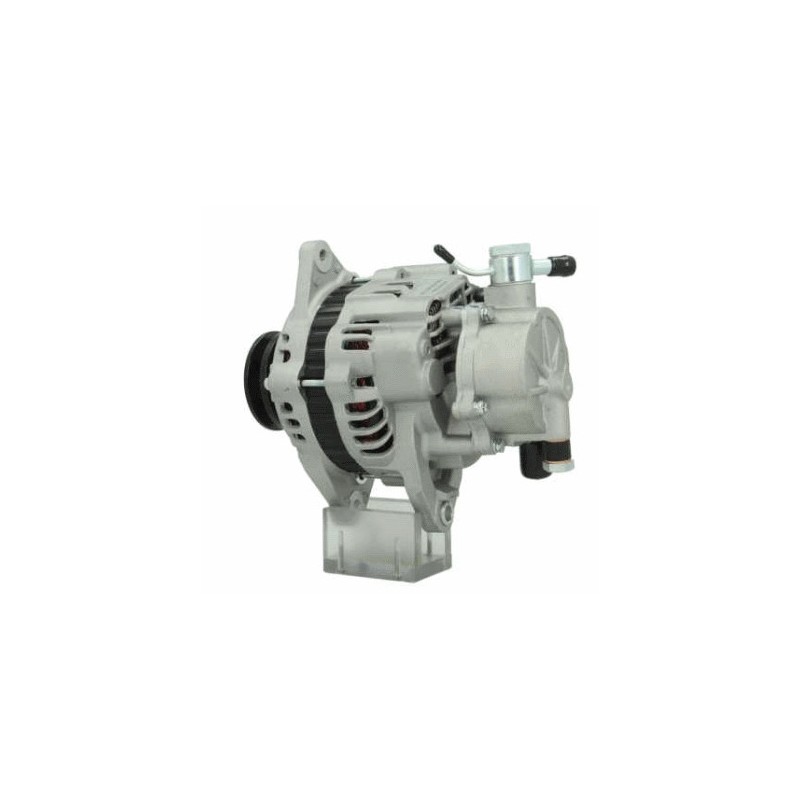

Alternator replacing A002TN1798 / A002TN1798A / A002TN1798AM / 0986045601
Alternator replacing MITSUBISHI A2TN1798 / A2TN1798A / A2TN1798AM / A2TN1798AT / A2TN1798ZT / MD340419 / MD366052
DELCO REMY DRA0095 / UNIPOINT ALTH095 / Nippon parts J5115066 / LUCAS LRA01717
NO CORE EXCHANGE NEEDED
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 80 | |
Catalogue information | ||
|---|---|---|
| Pulley | DP | |
| Regulator type | IR | |
| Vac. pump | Yes | |
| Servicing | MITSUBISHI | |

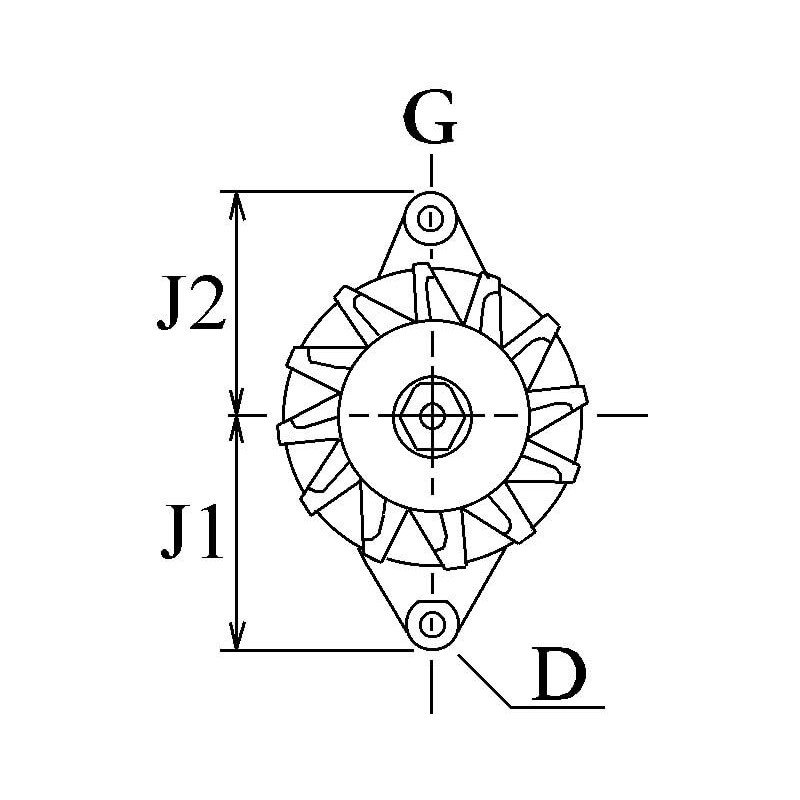

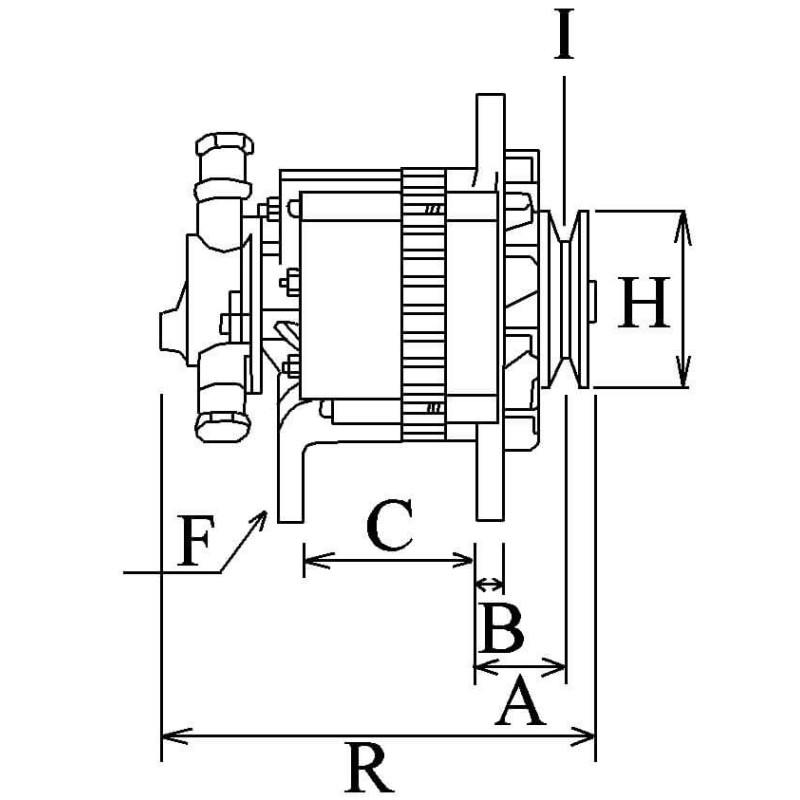

Physical information | ||
|---|---|---|
| A | Pulley dist. | 42.00 |
| B | Width/holder arm | 13.10 |
| C | Mount. bracket dist. | 54.00 |
| D | Bracket hole | 10.20 |
| E | Belt. adj. brackethole pos. | 3 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 76.00 |
| I | Grooves/pulley | 2 |
| J | Radius | 90.00 |
| J | Radius 2 | 88.00 |
| K | B+ position | M8 |
| K | Position/B+ in min. | 5 |
| N | Rotation | CW |

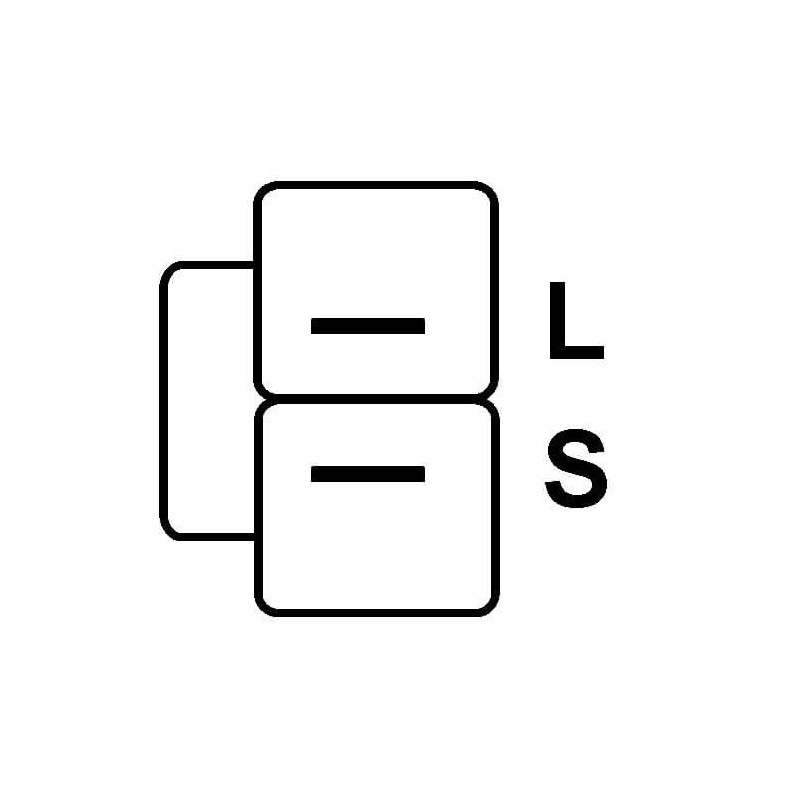

| O | Plug no. 1 | PL07 |
| R | Total length mm | 224.00 |
generic brand
Replacing | |
|---|---|
| A002TN1798 | MITSUBISHI |
| A002TN1798A | MITSUBISHI |
| A002TN1798AT | MITSUBISHI |
| A002TN1798ZT | MITSUBISHI |
| A2TN1798 | MITSUBISHI |
| A2TN1798A | MITSUBISHI |
| A2TN1798AT | MITSUBISHI |
| A2TN1798ZT | MITSUBISHI |
| JA1533IR | HC-PARTS |
| MD340419 | MITSUBISHI |
used on :
| Modèle | série | Litre | Carburant | Date du | à la date | Tipo moteur | moteur | KW | chevaux | châssis | Cylindres |
| L 200 | L 200 | 2.5 | Diesel | 2001 09 | 2007 12 | 4D56T | TD | 85 | 115 | Pick-up | 4 |
| L 200 | L 200 | 2.5 | Diesel | 1996 06 | 2007 12 | 4D56 | Diesel | 55 | 75 | Pick-up | 4 |
| L 200 | L 200 | 2.5 | Diesel | 1996 06 | 2007 12 | 4D56TD | TD | 73 | 99 | Pick-up | 4 |
| L 400 | L 400 | 2.5 | Diesel | 1996 06 | - | 4D56T | TD | 64 | 87 | De bus | 4 |
| L 400 | L 400 | 2.5 | Diesel | 1996 09 | - | 4D56T | TD | 64 | 87 | Boîte/Trucksnette | 4 |
| Pajero | Pajero | 2.5 | Diesel | 2002 07 | - | 4D56 | TD | 85 | 115 | 4 | |
| Pajero | Pajero | 2.5 | Diesel | 2002 07 | - | 4D56T | TD | 85 | 115 | 4 | |
| Pajero | Pajero | 2.5 | Diesel | 1998 11 | - | 4D56T | TD | 73 | 99 | 4 | |
| Pajero | Pajero | 2.5 | Diesel | 2003 08 | - | 4D56T | TD | 98 | 133 | 4 | |
| Pajero | Pajero | 2.5 | Diesel | 2001 09 | 2006 12 | 4D56T | TDi | 85 | 115 | Décapotable | 4 |
