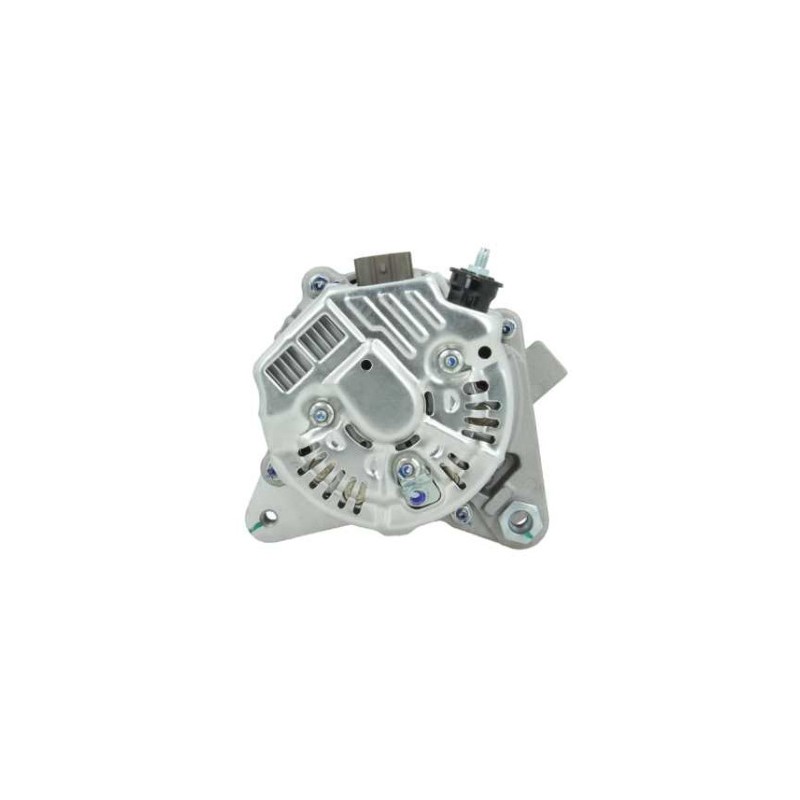

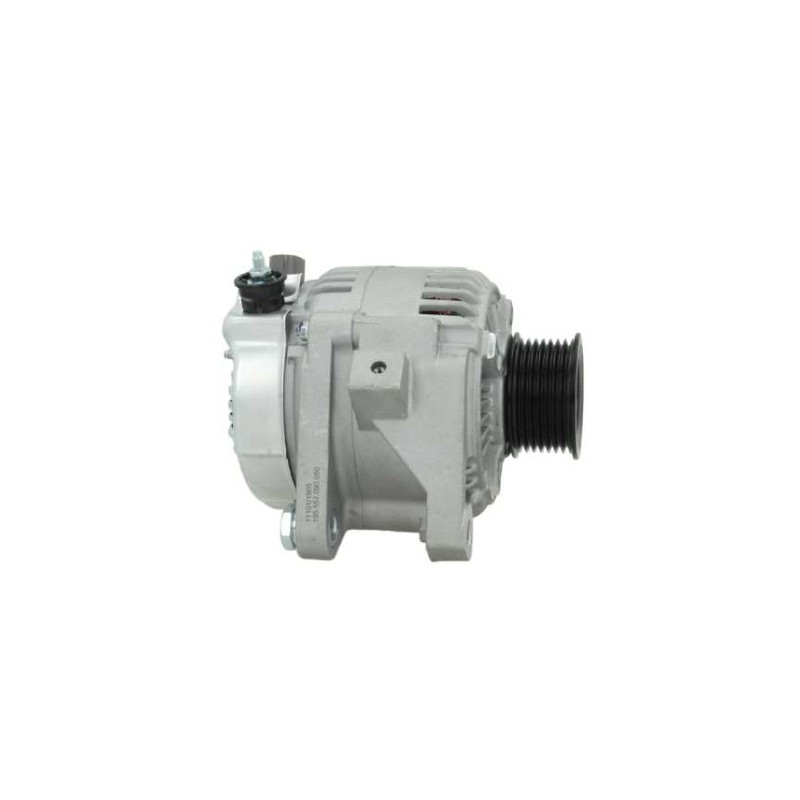

Alternator replacing 102211-2120 / 102211-2250 / 102211-2380 / 102211-2480
Alternator NEW replacing :
DENSO 100211-0600, 101211-7400, 101211-7410, 102211-0780, 102211-2120, 102211-2250, 102211-9470, 9661219-740, TOYOTA 27060-28060, 27060-28080, 27060-28080-84, 27060-28090, 27060-28090-84, 27060-28110, 27060-28110-84, 27060-2811084
More info
Specs Electricals | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 90 | |
Specs Physique | ||
|---|---|---|
| A | Pulley dist. | 34.00 |
| B | Width/holder arm | 17.00 |
| C | Mount. bracket dist | 46.00 |
| D | Bracket hole | 11.10 |
| E | Belt. adj. brackethole pos. | 15 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 55.00 |
| I | Grooves/pulley | 7 |
| J | Radius | 84.00 |
| J | Radius 2 | 86.00 |
| K | Position B + | M6 |
| K | B+ position en min. | 13 |
| N | Rotation | Cr |

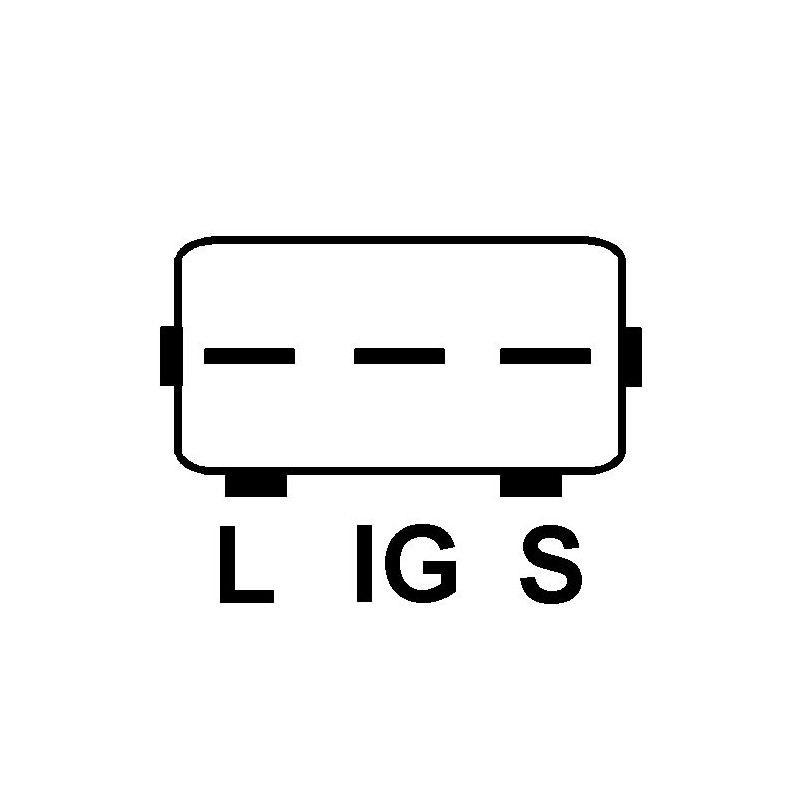

| O | Plug n° 1 | PL42 |
| R | Total length mm | 170.00 |
generic brand
Replacing :
DENSO 100211-0600, 101211-7400, 101211-7410, 102211-0780, 102211-2120, 102211-2250, 102211-9470, 9661219-740,
TOYOTA 27060-28060, 27060-28080, 27060-28080-84, 27060-28090, 27060-28090-84, 27060-28110, 27060-28110-84, 27060-2811084
Replacing | |
|---|---|
| 102211-2120 | DENSO |
| 102211-2250 | DENSO |
| 102211-2380 | DENSO |
| 102211-2480 | DENSO |
| 27060-0H010 | TOYOTA |
| 27060-28110 | TOYOTA |
| 27060-28120 | TOYOTA |
| 27060-28170 | TOYOTA |
| JA1792IR | HC-PARTS |
| 0986082770 | BOSCH |
| 1022112120 | DENSO |
| 1022112250 | DENSO |
| 1022119470 | DENSO |
| 1042109470 | DENSO |
| 114186 | Cargo |
| 12060820 | EuroTec |
| 13957 | Lester |
| 13957N | WAI |
| 195557090 | PSH |
| 2706028110 | TOYOTA |
| 2706028120 | |
| 284679 | Elstock |
| 57185 | EAI |
| 6260SP | Spidan |
| 9662219212 | PSA |
| ALT6092sa | Electrolog |
| ALTH200 | UNIPOINT |
| ATA604 | ATK |
| DAN951 | DENSO |
| DRA4274 | DELCO REMY |
| F042A0H200 | BOSCH |
| F042A0H200FEB | BOSCH |
| HJA1792IR | HC |
| J5112104 | Nipparts |
| JA1792IR | HC |
| LRA02210 | LUCAS |
Mounted on :
TOYOTA
| RAV 4 | RAV 4 | 2.0 | Unleaded | 2000 06 | 2005 11 | 1AZ-FE | i 16V | 110 | 150 | 4WD | 1998 | 4 | XA2 | |
| Camry | Camry | 2.4 | Unleaded | 2001 11 | - | 2AZ-FE | 16V | 112 | 152 | 2362 | 4 | V3 |
