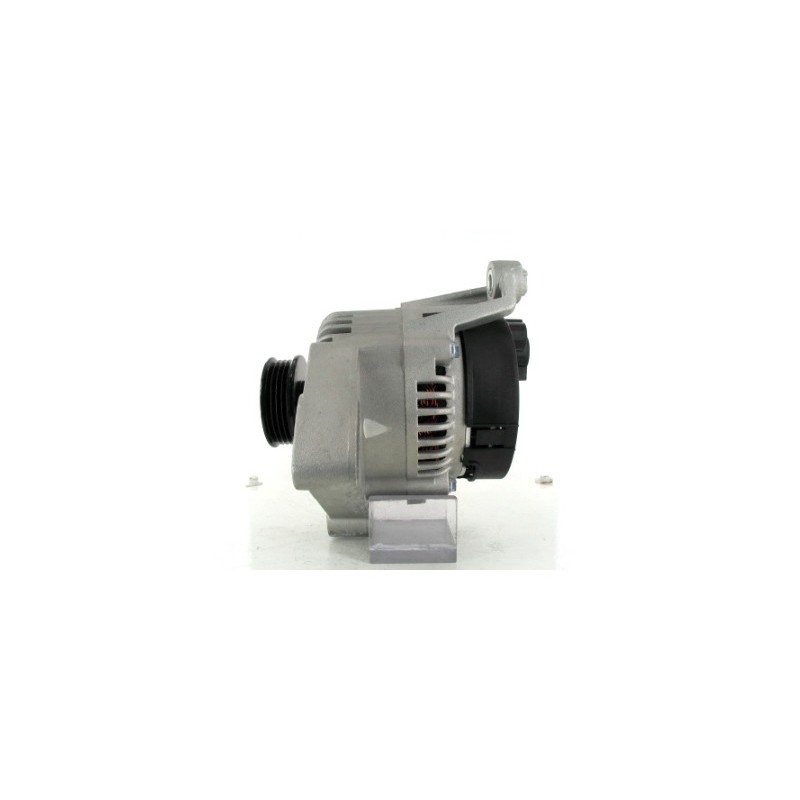

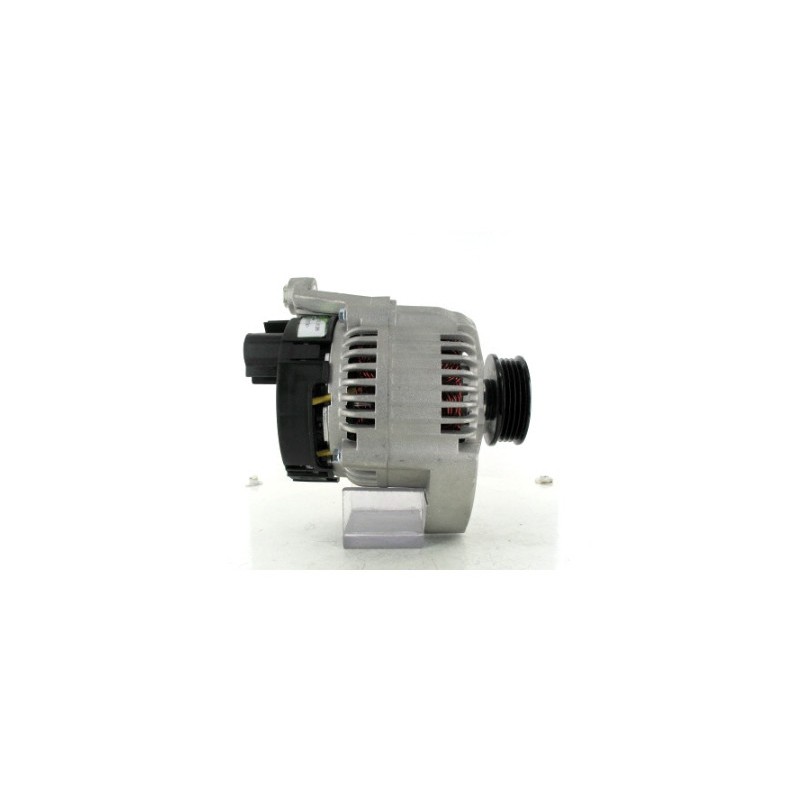

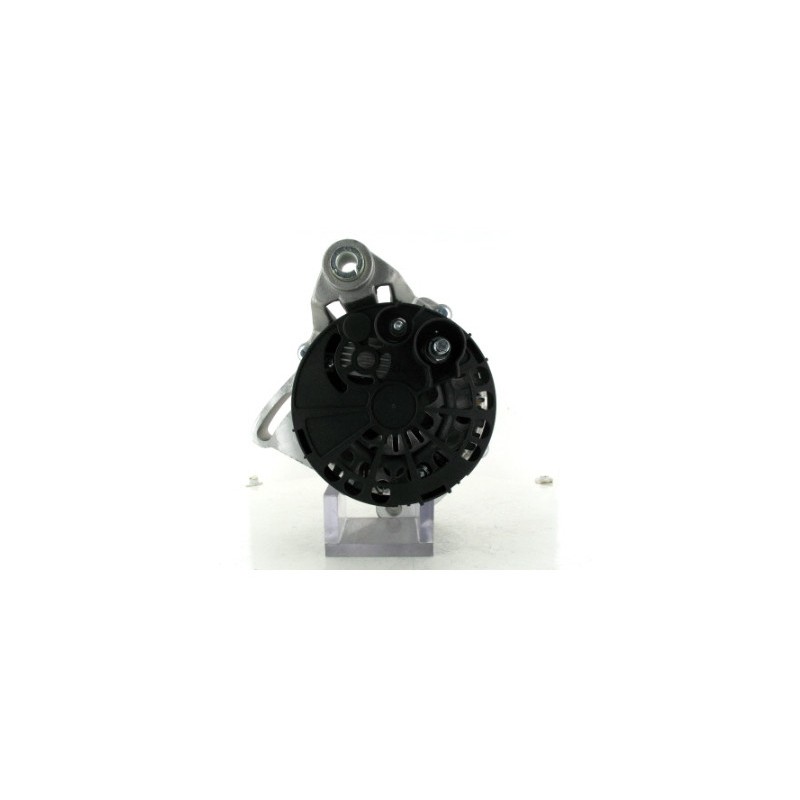

Alternator replacing FIAT 46407646 / 46416343 / MAGNETI MARELLI 63321234 / 63321280
Alternator NEW replacing FIAT 46407646 / 46416343 / 46420961 / 46519138 / 46559015 / 46816031
MAGNETI MARELLI 63321602 / 63321663 / 63321747 / 63321870
0986048541 / DRA3414 / DAN630 / LRB00215
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 65 | |
Physical Information | ||
|---|---|---|

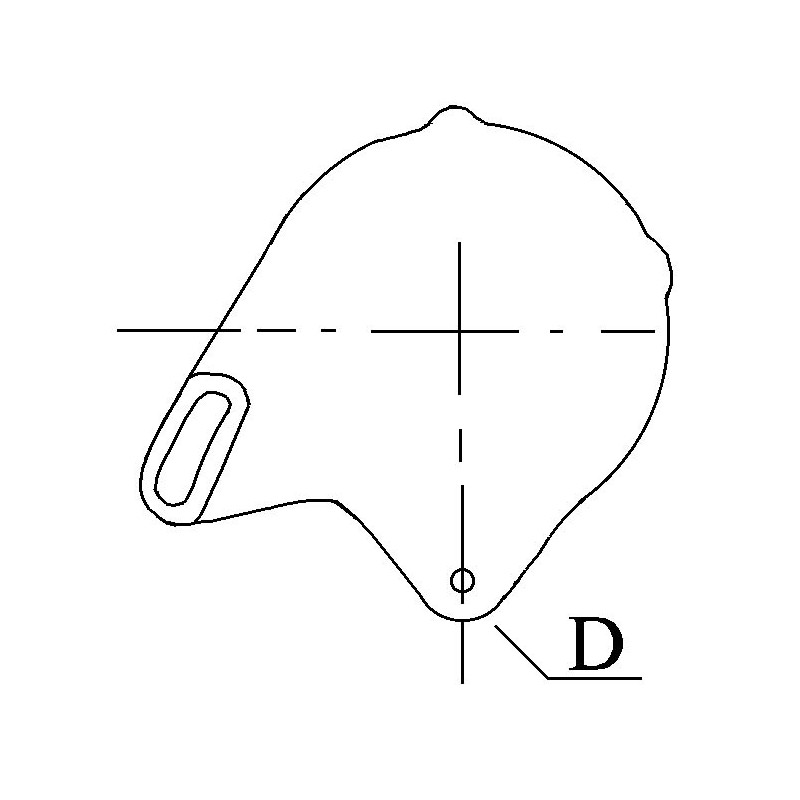

| D | Bracket hole | 10.30 |
| G | Belt. adj. bracket hole | 11.20/44.10 |
| B | Width/holder arm | 32.00 |

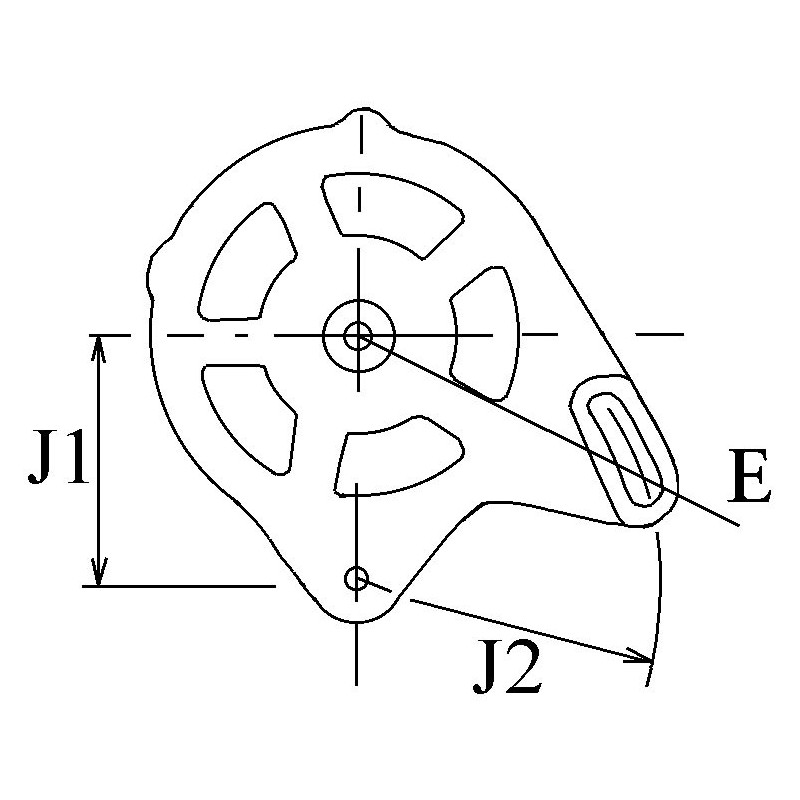

| E | Belt. adj. brackethole pos. | 18 |

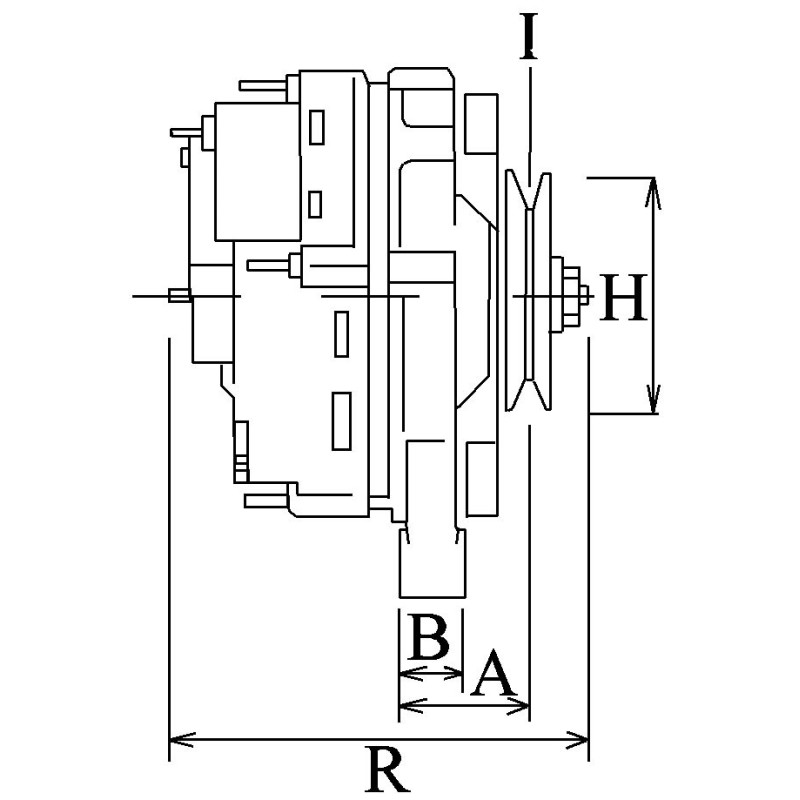

| H | Pulley dia. | 59.90 |
| A | Pulley dist. | 62.25 |
| i | Grooves/pulley | 4 |
| j | Radius | 85.00 |
| j | Radius 2 | 108.00 |
| k | Position B + | M8 |
| n | Rotation | CW |
| o | Plug no. 1 | PL_NA |
| R | Total length mm | 189.50 |
Replacing | |
|---|---|
| 063321734000 | MAKO |
| 46407646 | FIAT |
| 46416343 | FIAT |
| 46420961 | FIAT |
| 46430524 | FIAT |
| 46519138 | FIAT |
| 46559015 | FIAT |
| 46816031 | FIAT |
| 5895033 | FIAT |
| 63321234 | MAGNETI MARELLI |
| 63321280 | MAGNETI MARELLI |
| 63321602 | MAGNETI MARELLI |
| 63321663 | MAGNETI MARELLI |
| 63321747 | MAGNETI MARELLI |
| 63321870 | MAGNETI MARELLI |
| 7779820 | FIAT |
| ca1153ir | HC-PARTS |
| 0986048541 |
| 282734 |
| 46231695 |
| 46407646 |
| 46430524 |
| 46559015 |
| 505536065 |
| 5602SP |
| 5895033 |
| 63321234 |
| 63321280 |
| 63321602 |
| 63321747 |
| 63321867 |
| 63321870 |
| 7779820 |
| 9090149F |
| ALTH147 |
| CA1153IR |
| DAN630 |
| DRA3414 |
| F042A0H147 |
| HCA1153IR |
| LRB00215 |
generic brand
Mounted on :
FIAT Doblo / Palio / Punto /
LANCIA
| Y | Y | 1.2 | Unleaded | 1996 03 | 2003 09 | 840A3.000 | 44 | 60 | Hayon | 1242 | 4 |
PEUGEOT
| Y | Y | 1.2 | Unleaded | 1996 03 | 2003 09 | 840A3.000 | 44 | 60 | Hayon | 1242 | 4 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
