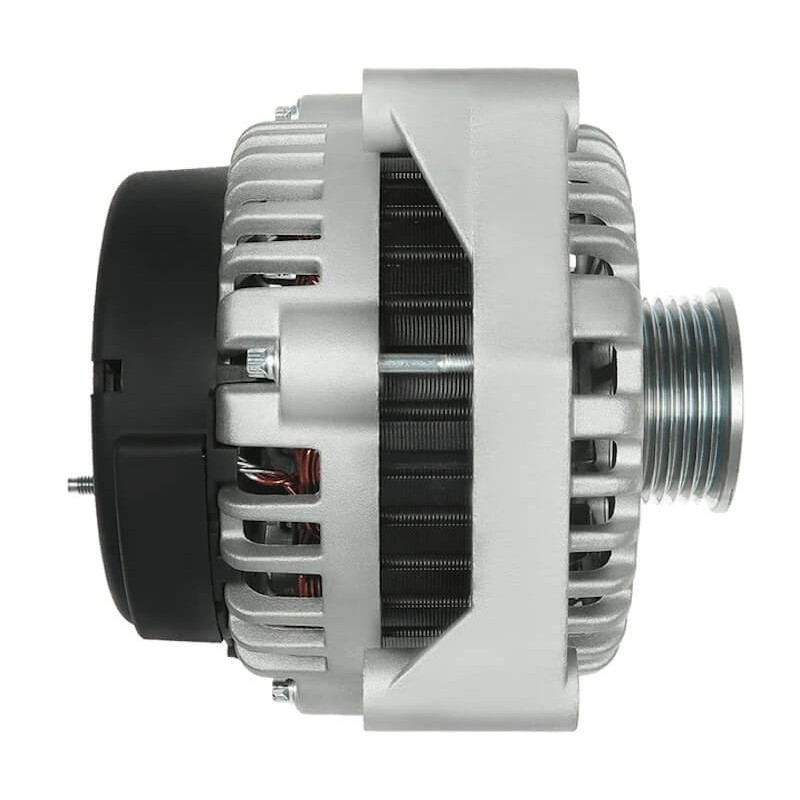

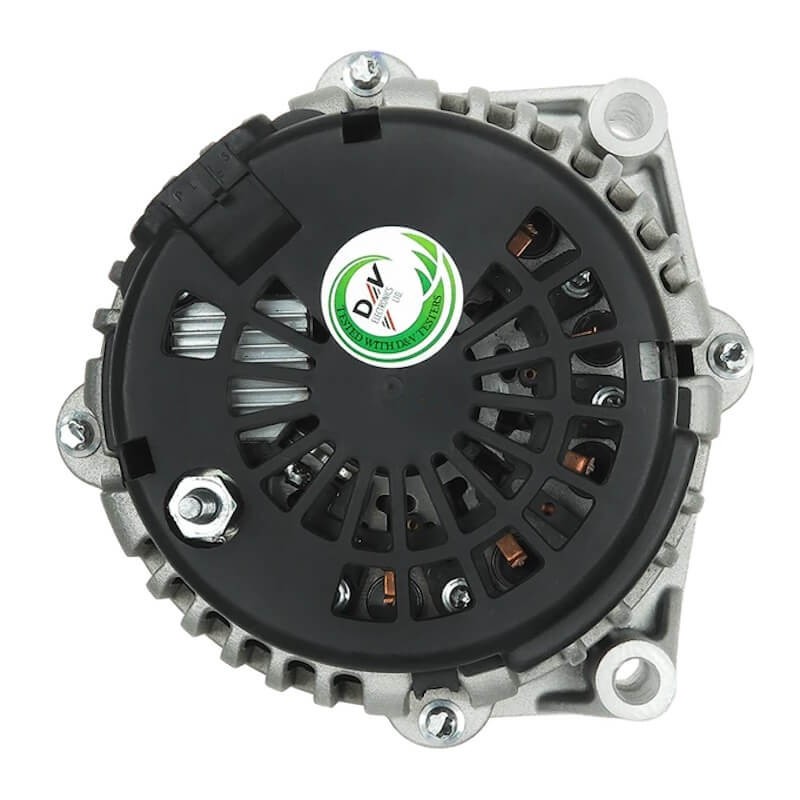

Alternator replacing 10464476 / 15226003 / 15754097 / 15200109
Alternator NEW replacing :
OPEL 10464476
DELCO REMY 15226003 / 15754097 / 15754097M
GM 10464476, 15200109, 15226003, 15263859, 19151921, 19244751, 22781130, 22781131, ISUZU 8104644760, 8152260030
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 145 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.31 |
| G | Belt. adj. bracket hole | 10.16 |
| B | Width/holder arm | 50.91 |
| E | Belt. adj. brackethole pos. | 13 |
| H | Pulley dia. | 56.46 |
| A | Pulley dist. | 72.46 |
| i | Grooves/pulley | 6 |
| j | Radius | 88.96 |
| j | Radius 2 | 88.96 |
| k | Position B + | M6 |
| n | Rotation | CW |

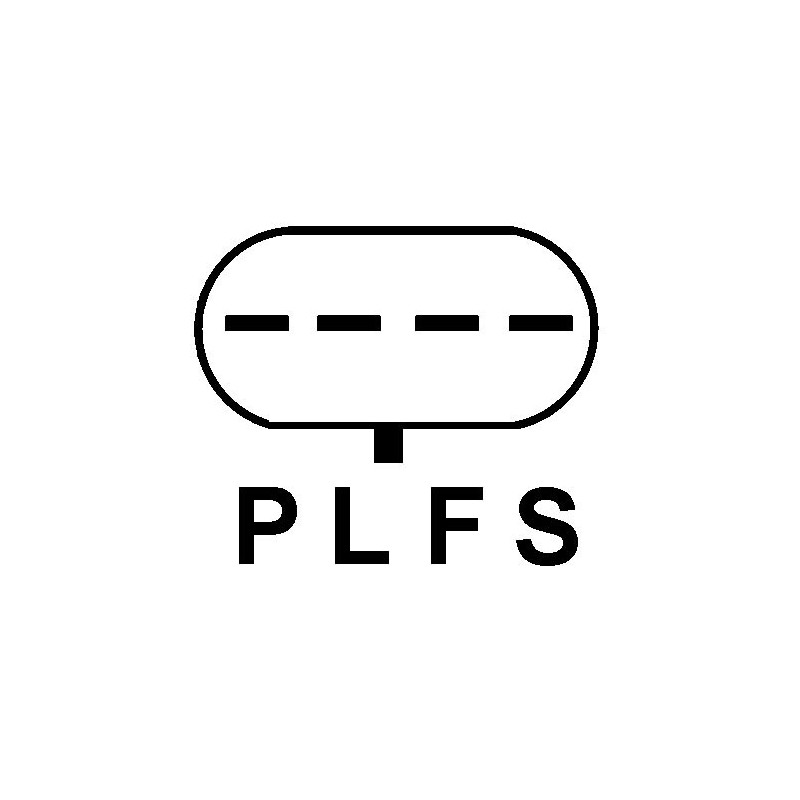

| o | Plug no. 1 | PL119 |
| R | Total length mm | 178.50 |
generic brand
Replacing | |
|---|---|
| 10464476 | OPEL |
| 15226003 | DELCO REMY |
| 15754097 | DELCO REMY |
| 15754097M | DELCO REMY |
AM General 6019239, DELCO REMY 10464405, 10464443, 10464453, 10464456, 10464476, 10480234, 10480390, 15200109, 15226003, 15750871, 15754097, 15754097A, 15754097M, 15754097W, 15768830, 18000002, 19244745, 19244746, 22781130, GM 10464476, 15200109, 15226003, 15263859, 19151921, 19244751, 22781130, 22781131, ISUZU 8104644760, 8152260030, Original Reference Number 10480234W, 15750871A, SAAB 15-22-6003
Fits :
| Brand | Model | Year |
| CADILLAC | Escalade 6.0 | 01.2002-12.2002 |
| CADILLAC | Escalade 6.0 | 01.2003-01.2004 |
| CADILLAC | Escalade 6.0 | 01.2003-12.2003 |
| CADILLAC | Escalade 6.0 | 01.2004-12.2004 |
| CADILLAC | Escalade 6.0 | 01/01/05 |
| CHEVROLET | Express 6.0 | 01/01/03 |
| CHEVROLET | Silverado 4.3 | 01.2000-12.2000 |
| CHEVROLET | Express 6.0 | 01/01/04 |
| CHEVROLET | Silverado 4.3 | 01.2001-01.2002 |
| CHEVROLET | Express 6.0 | 01/01/05 |
| CHEVROLET | Silverado 4.3 | 01/01/02 |
| CHEVROLET | Avalanche 8.1 | 01.2002-12.2002 |
| CHEVROLET | Silverado 4.3 | 01.2003-12.2003 |
| CHEVROLET | Avalanche 8.1 | 01.2003-12.2003 |
| CHEVROLET | Silverado 4.3 | 01/01/04 |
| CHEVROLET | Avalanche 8.1 | 01/01/04 |
| CHEVROLET | Avalanche 8.1 | 01/01/05 |
| CHEVROLET | Silverado 4.8 | 01.1999-01.2000 |
| CHEVROLET | Silverado 4.8 | 01.2001-01.2002 |
| CHEVROLET | Silverado 4.8 | 01.2003-12.2003 |
| CHEVROLET | Silverado 4.8 | 01/01/04 |
| CHEVROLET | SSR 6.0 | 01/01/05 |
| CHEVROLET | Express 8.1 | 01.2001-01.2002 |
| CHEVROLET | C3500 8.1 | 01.2001-12.2001 |
| CHEVROLET | C3500 8.1 | 01.2002-12.2002 |
| CHEVROLET | Silverado 5.3 | 01.1999-01.2000 |
| CHEVROLET | Silverado 5.3 | 01.2001-01.2002 |
| CHEVROLET | Silverado 5.3 | 01/01/02 |
| CHEVROLET | Silverado 5.3 | 01.2003-12.2003 |
| CHEVROLET | Silverado 5.3 | 01/01/03 |
| CHEVROLET | Silverado 5.3 | 01/01/04 |
| CHEVROLET | Silverado 6.0 | 01.1999-12.1999 |
| CHEVROLET | Silverado 6.0 | 01.2001-01.2002 |
| CHEVROLET | Silverado 6.0 | 01.2003-12.2003 |
| CHEVROLET | Escalade 6.0 | 01/01/05 |
| CHEVROLET | Silverado 6.0 | 01/01/03 |
| CHEVROLET | Silverado 6.0 | 01/01/04 |
| CHEVROLET | Silverado 6.0 | 01/01/05 |
| CHEVROLET | Tahoe 4.8 | 01.2000-12.2000 |
| CHEVROLET | Tahoe 4.8 | 01.2001-01.2002 |
| CHEVROLET | Tahoe 4.8 | 01.2003-12.2003 |
| CHEVROLET | Tahoe 4.8 | 01/01/04 |
| CHEVROLET | Express 4.3 | 01.2001-01.2002 |
| CHEVROLET | Express 4.3 | 01/01/03 |
| CHEVROLET | Express 4.3 | 01/01/04 |
| CHEVROLET | Express 4.3 | 01/01/05 |
| CHEVROLET | Tahoe 5.3 | 01.2000-12.2000 |
| CHEVROLET | Tahoe 5.3 | 01.2001-01.2002 |
| CHEVROLET | Tahoe 5.3 | 01.2002-12.2002 |
| CHEVROLET | Tahoe 5.3 | 01.2003-12.2003 |
| CHEVROLET | Tahoe 5.3 | 01/01/04 |
| CHEVROLET | Express 4.8 | 01/01/04 |
| CHEVROLET | Express 4.8 | 01/01/05 |
| CHEVROLET | 1500 5.3 | 01.2000-12.2000 |
| CHEVROLET | 1500 5.3 | 01.2001-01.2002 |
| CHEVROLET | 1500 5.3 | 01.2002-12.2002 |
| CHEVROLET | 1500 5.3 | 01.2003-12.2003 |
| CHEVROLET | 1500 5.3 | 01/01/04 |
| CHEVROLET | 2500 5.3 | 01.2000-12.2000 |
| CHEVROLET | 2500 6.0 | 01.2000-12.2000 |
| CHEVROLET | 2500 6.0 | 01.2001-01.2002 |
| CHEVROLET | 2500 6.0 | 01.2003-12.2003 |
| CHEVROLET | 2500 6.0 | 01/01/04 |
| CHEVROLET | 2500 6.0 | 01/01/05 |
| CHEVROLET | 2500 8.1 | 01.2001-12.2001 |
| CHEVROLET | 2500 8.1 | 01.2002-12.2002 |
| CHEVROLET | 2500 8.1 | 01.2003-12.2003 |
| CHEVROLET | 2500 8.1 | 01/01/04 |
| CHEVROLET | 2500 8.1 | 01/01/05 |
| CHEVROLET | Silverado 6.6 Turbo | 01.2001-01.2002 |
| CHEVROLET | Avalanche 5.3 | 01.2002-12.2002 |
| CHEVROLET | Express 5.0 | 01.2002-12.2002 |
| CHEVROLET | Silverado 6.6 Turbo | 01.2003-12.2003 |
| CHEVROLET | Avalanche 5.3 | 01.2003-12.2003 |
| CHEVROLET | Express 5.3 | 01/01/03 |
| CHEVROLET | Silverado 6.6 Turbo | 01/01/04 |
| CHEVROLET | Avalanche 5.3 | 01/01/04 |
| CHEVROLET | Express 5.3 | 01/01/04 |
| CHEVROLET | Silverado 6.6 Turbo | 01/01/05 |
| CHEVROLET | Express 5.3 | 01/01/05 |
| CHEVROLET | Silverado 8.1 | 01.2001-01.2002 |
| CHEVROLET | Silverado 8.1 | 01.2003-12.2003 |
| CHEVROLET | Silverado 8.1 | 01/01/04 |
| CHEVROLET | Silverado 8.1 | 01/01/05 |
| CHEVROLET | Express 5.7 | 01.2002-12.2002 |
| CHEVROLET | Silverado 4.3 | 01.1999-12.1999 |
| ISUZU | Ascender 5.3 | 01/01/03 |
| ISUZU | Ascender 5.3 | 01/01/04 |
