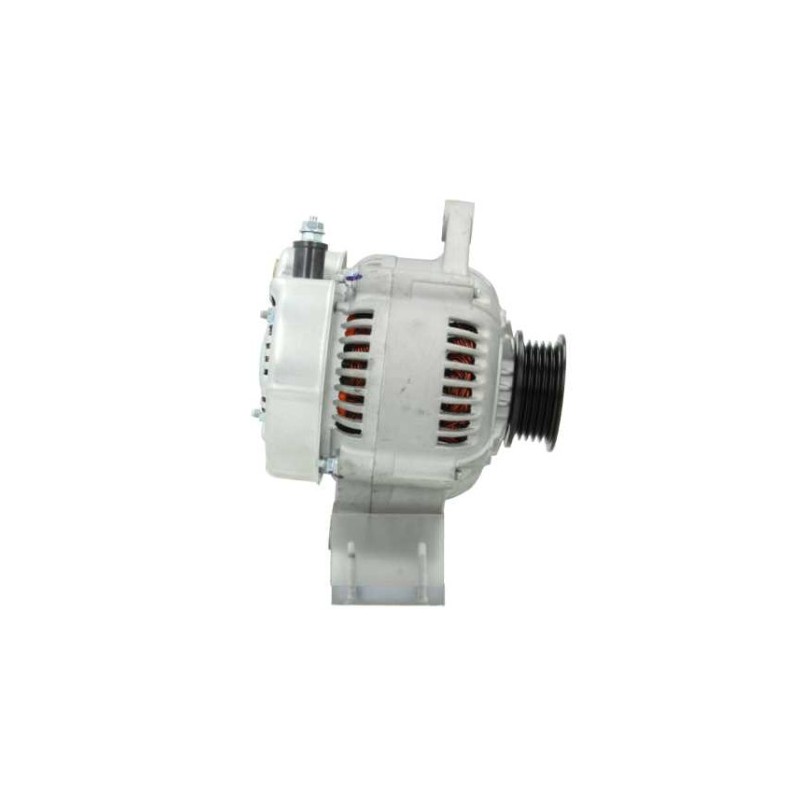

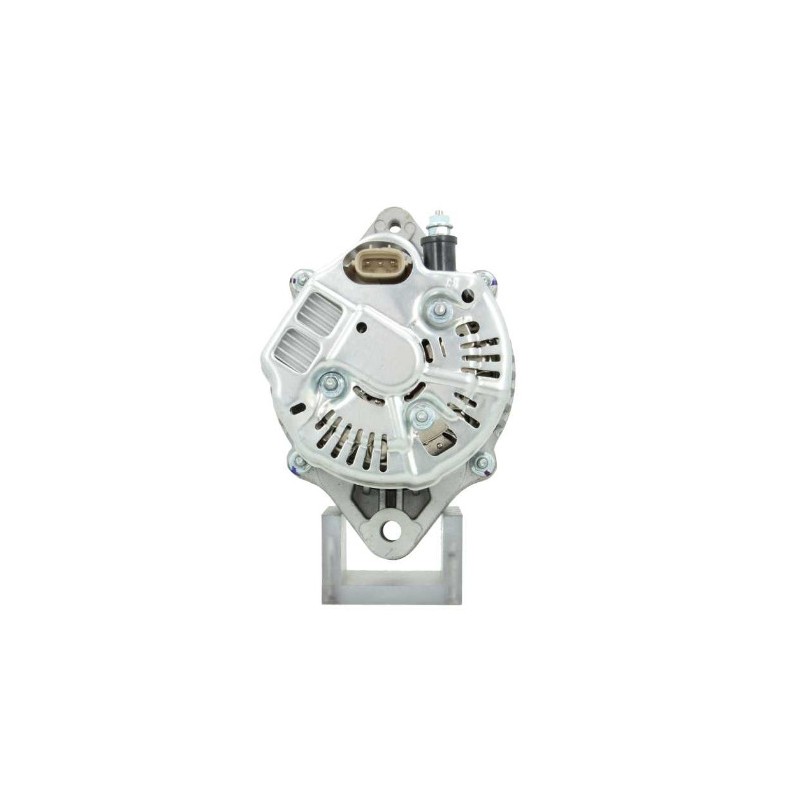

Alternator replacing 101211-0520 / 101211-0521 / 101211-0522 / 101211-5050 / 101211-5051 / 101211-5052
Alternator replacing 101211-0520 / 101211-0521 / 101211-0522 / 101211-5050 / 101211-5051 / 101211-5052
0986080010 / 27060-72340 / 27060-75100 / 27060-75110 / 27060-75150 / DRA0278 / LRA01816
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
More info
Information:
Specs Electricals | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 70 | |

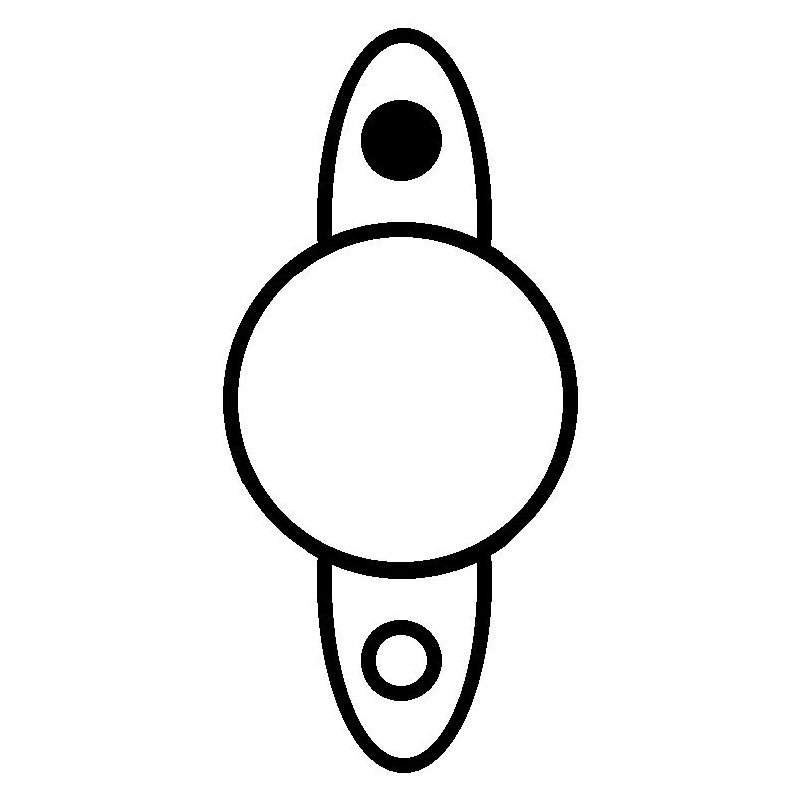

Spécification Physique | ||
|---|---|---|
| A | Pulley dist. | 90.00 |
| B | Width/holder arm | 58.00 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 59 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 55.00 |
| I | Grooves/pulley | 5 |
| J | Radius | 78.00 |
| J | Radius 2 | 83.00 |
| K | Position B + | M6 |
| K | B+ position en min. | 5 |
| N | Rotation | Cr |

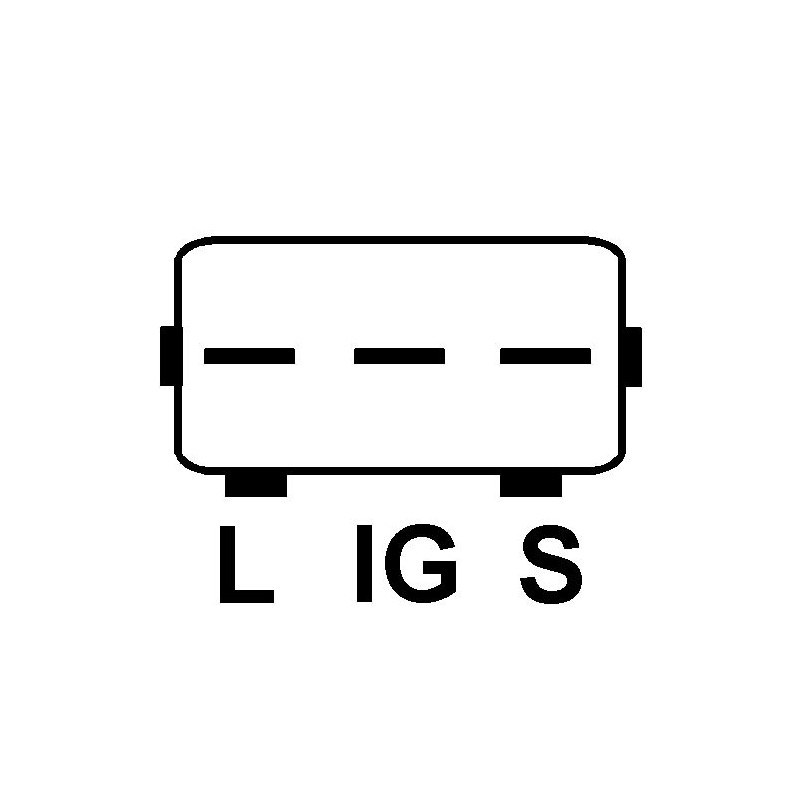

| O | Plug n° 1 | PL42 |
| R | Total length mm | 167.00 |
generic brand
Replacing | |
|---|---|
| 101211-0520 | DENSO |
| 101211-0521 | DENSO |
| 101211-0522 | DENSO |
| 102211-5050 | DENSO |
| 102211-5051 | DENSO |
| 102211-5052 | DENSO |
| 27060-75100 | TOYOTA |
| 27060-75150 | TOYOTA |
| JA1535IR | HC-PARTS |
| 0986080010 | BOSCH |
| 1012110520 | DENSO |
| 1012110521 | DENSO |
| 1012110522 | DENSO |
| 101211412 | DENSO |
| 1012114120 | DENSO |
| 1012115052 | DENSO |
| 1012115640 | DENSO |
| 1012115740 | DENSO |
| 1022114121 | DENSO |
| 1022115050 | DENSO |
| 1022115051 | DENSO |
| 1022115052 | DENSO |
| 1022116080(poelie) | DENSO |
| 112357 | Cargo |
| 113584 | Cargo |
| 12060422 | EuroTec |
| 12060829 | EuroTec |
| 13673 | Lester |
| 13673N | WAI |
| 195554070 | PSH |
| 2706072340 | TOYOTA |
| 2706075100 | TOYOTA |
| 2706075110 | TOYOTA |
| 2706075150 | TOYOTA |
| 2706075170 | TOYOTA |
| 283635 | Elstock |
| 57293 | EAI |
| 5886SP | Spidan |
| 90295384 | WILSON |
| 9120690488 | BOSCH |
| 930278 | EDR |
| 9661219052 | PSA |
| ALT1553sa | Electrolog |
| ALT5098 | UNIPOINT |
| ALT6052sa | Electrolog |
| ALT6256SA | Electrolog |
| ALTH097 | UNIPOINT |
| ATA602 | ATK |
| DRA0278 | DELCO REMY |
| F042302079 | BOSCH |
| F042A0H097 | BOSCH |
| HJA1535IR | HC |
| J5112115 | Nipparts |
| JA1535IR | HC |
| LRA01816 | LUCAS |
fits:
| Modèle | Model série | Reference d'origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Tipoe châssis | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hiace | Hiace | 2.4 | Unleaded | 1995 08 | 1998 04 | 2RZ-E | 85 | 116 | Boîte/Trucksnette | 2438 | 4 | ||||||
| Hiace | Hiace | 2.4 | Unleaded | 1995 08 | 1998 04 | 2RZ-E | 85 | 115 | De bus | 2438 | 4 | ||||||
| Hiace | Hiace | 2.4 | Diesel | 1995 08 | 2006 08 | 2L | Diesel | 61 | 83 | Boîte/Trucksnette | 2446 | 4 | |||||
| Hiace | Hiace | 2.4 | Unleaded | 1995 08 | 1998 04 | 2RZ-E | 85 | 116 | De bus | 4WD | 2438 | 4 | H18, 22 | ||||
| Hiace | Hiace | 2.7 | Unleaded | 1998 04 | 2006 08 | 3RZ-FE | 105 | 143 | Boîte/Trucksnette | 2694 | 4 | H12 | |||||
| Hiace | Hiace | 2.4 | Diesel | 1999 07 | 2006 08 | 2L | Diesel | 55 | 75 | Pick-up | 2446 | 4 | LXH1_, RCH1_, KLH1_ | ||||
| Hiace | Hiace | 2.7 | Unleaded | 2001 11 | - | 3RZ-FE | 106 | 144 | De bus | 4WD | 2694 | 4 | |||||
| Hiace | Hiace | 2.7 | Unleaded | 1998 04 | 2001 11 | 3RZ-FE | 105 | 143 | De bus | 2694 | 4 | H12G | |||||
| Hiace | Hiace | 2.4 | Unleaded | 1995 08 | 1998 04 | 2RZ-E | 85 | 116 | Boîte/Trucksnette | 4WD | 2438 | 4 | H12, 22 | ||||
| Hiace | Hiace | 2.7 | Unleaded | 1998 04 | 2006 08 | 3RZ-FE | 105 | 143 | De bus | 4WD | 2694 | 4 | H19, 29 |
