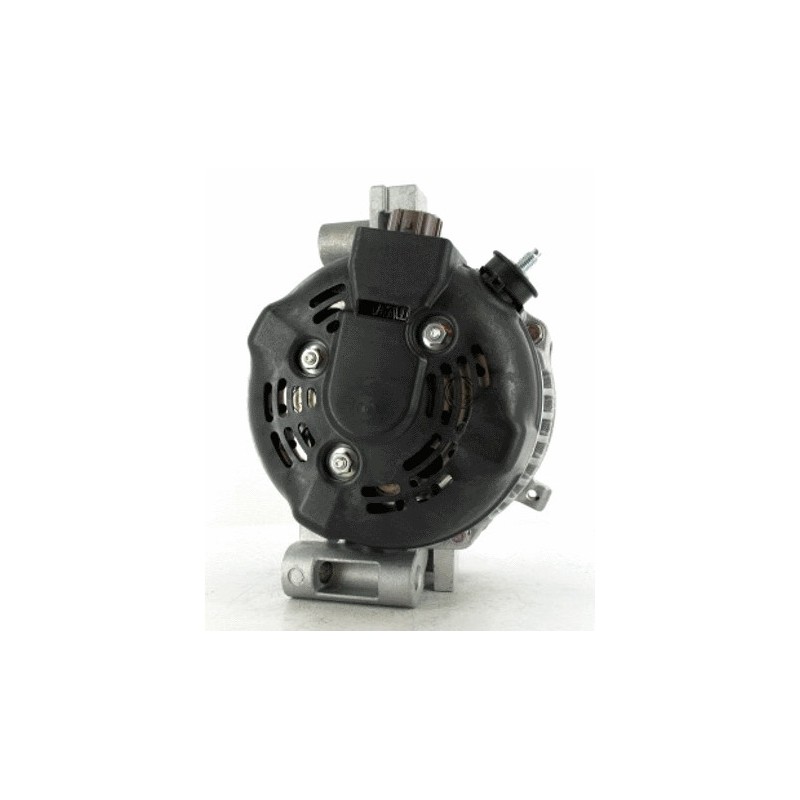

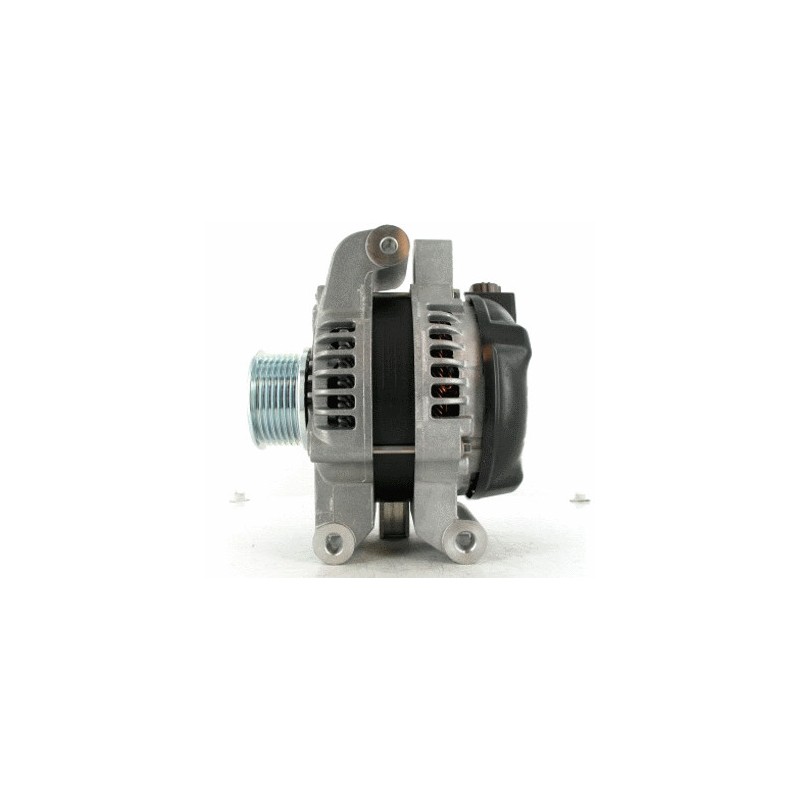

Alternator replacing 104210-2220 / 104210-5140 / 27060-0R011
Alternator replacing :
DENSO 104210-5140 / 104210-2220 / DAN1022 / DAN1351 / 104210-5142 / 104210-4850
TOYOTA 27060-0R011 / 27060-0r040
0986082080 / DRA0598
NO CORE EXCHANGE NEEDED
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 100 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.80 |
| G | Belt. adj. bracket hole | 8.50 |
| B | Width/holder arm | 60.00 |
| E | Belt. adj. brackethole pos. | 58 |
| C | Mount. bracket dist | 71.50 |
| H | Pulley dia. | 58.00 |
| A | Pulley dist. | 23.98 |
| i | Grooves/pulley | 7 |
| k | Position B + | M6 |
| n | Rotation | CW |

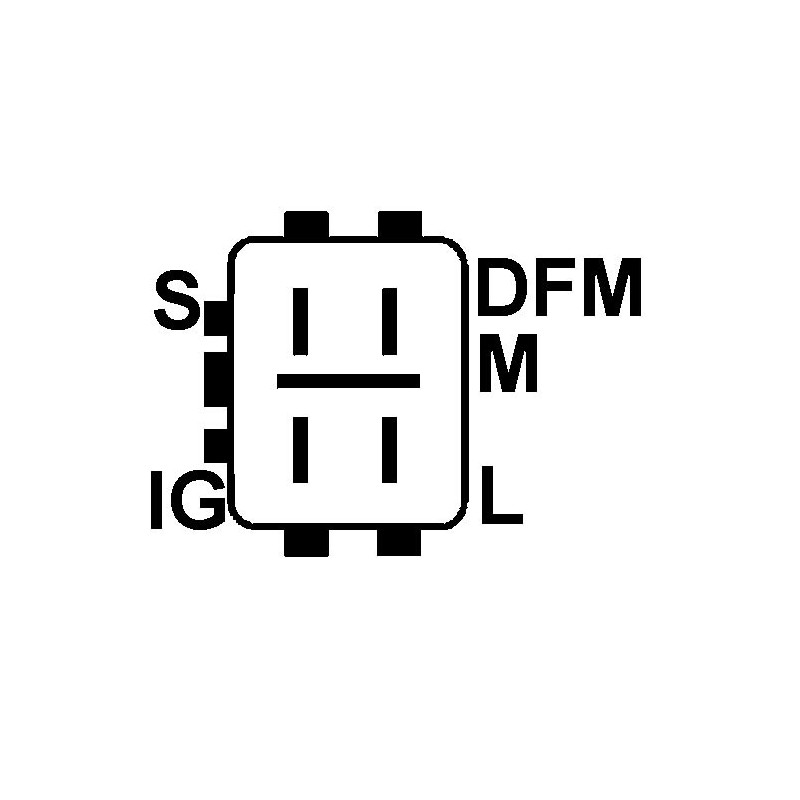

| o | Plug no. 1 | PL78 |
| D | Trou from fixation support 2 | 10.20 |
| R | Total length mm | 151.70 |
generic brand
Replacing | |
|---|---|
| 104210-2220 | DENSO |
| 104210-5140 | DENSO |
| 27060-0R011 | TOYOTA |
| 27060-0r040 | TOYOTA |
| ca2036ir | HC-PARTS |
Mounted on :
| Brand | Model | Tipo | Year |
|---|---|---|---|
| TOYOTA | Auris 2.0 D-4D | [1AD-FTV] | 01.2007- |
| TOYOTA | Auris 2.2 D-4D | [2AD-FHV] | 01.2007- |
