Alternator replacing BOSCH 0120334625 / 9120334626 / NISSAN 23100-g9903
Alternator replacing BOSCH 0120334625 / 9120334626 / NISSAN 23100-g9903
for NISSAN Patrol 2.8D type engine RD28T
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Physical Information | ||
|---|---|---|

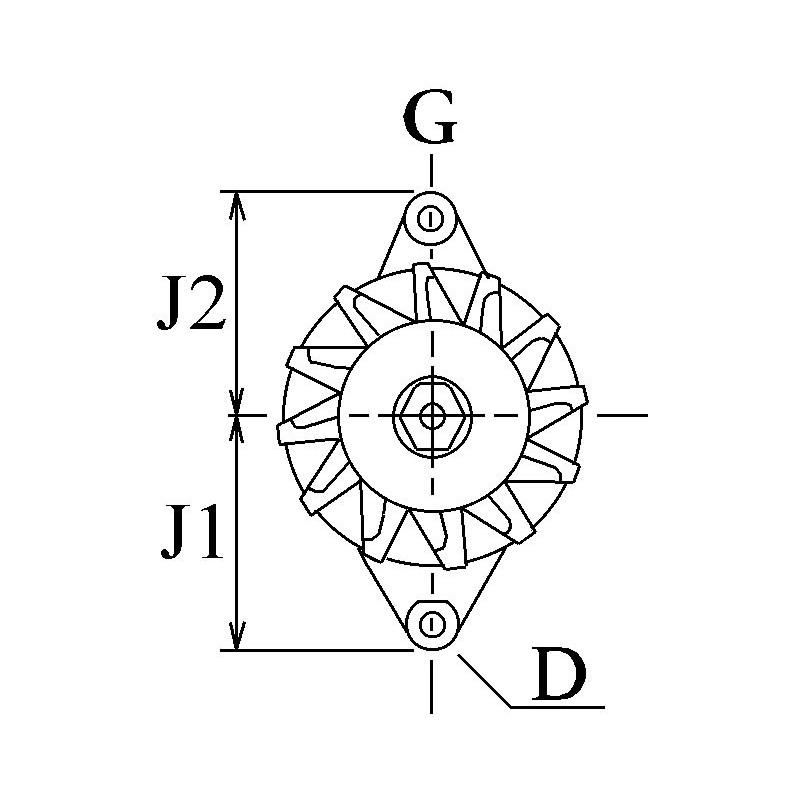

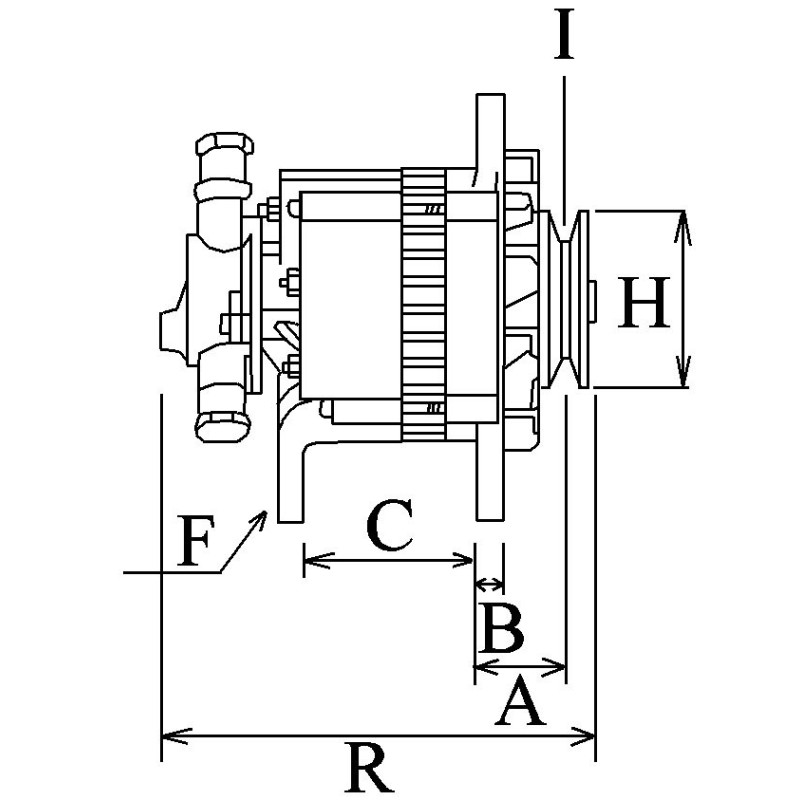

| D | Bracket hole | 10.40 |
| G | Belt. adj. bracket hole | 8.50 |
| B | Width/holder arm | 13.20 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 80.40 |
| H | Pulley dia. | 86.00 |
| A | Pulley dist. | 43.00 |
| i | Grooves/pulley | 2 |
| j | Radius | 89.00 |
| j | Radius 2 | 85.00 |
| k | Position B + | M6 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL100 |
| Q | Tipo prise W | M5 |
| R | Total length mm | 250.00 |
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 70 | |

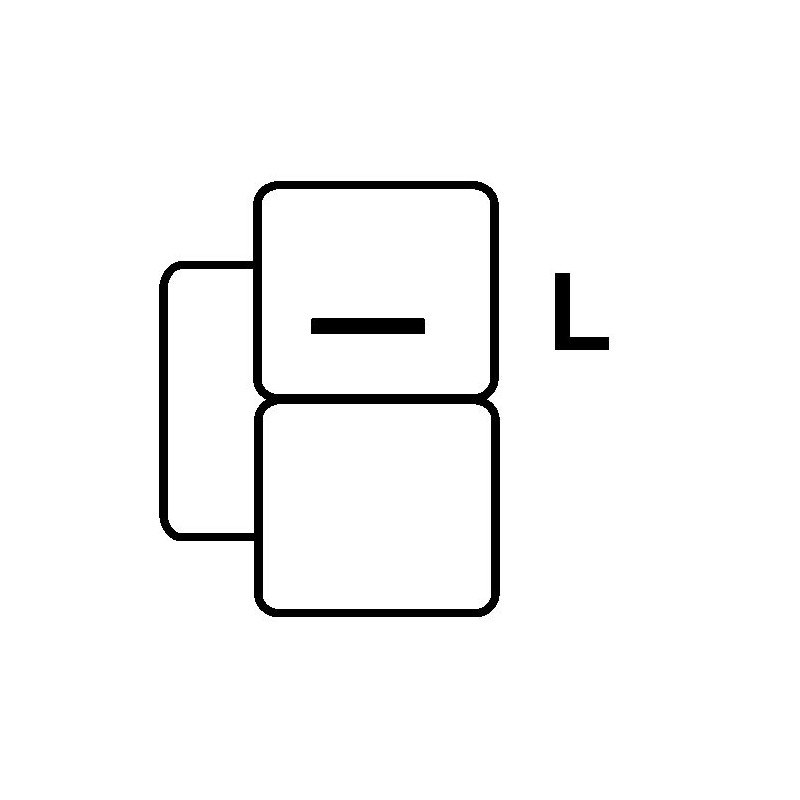

| Plug type | W | |
lus d'informations | ||
|---|---|---|
| Fan | Ef | |
| Pulley | Pulley double | |
| Tipo regulator | Ir | |
| Vaccum pump | VP | |
generic brand
Replacing | |
|---|---|
| 0120334625 | BOSCH |
| 23100-g9903 | NISSAN |
| 9120334625 | BOSCH |
| 9120334626 | BOSCH |
| ja867ir | HC-PARTS |
