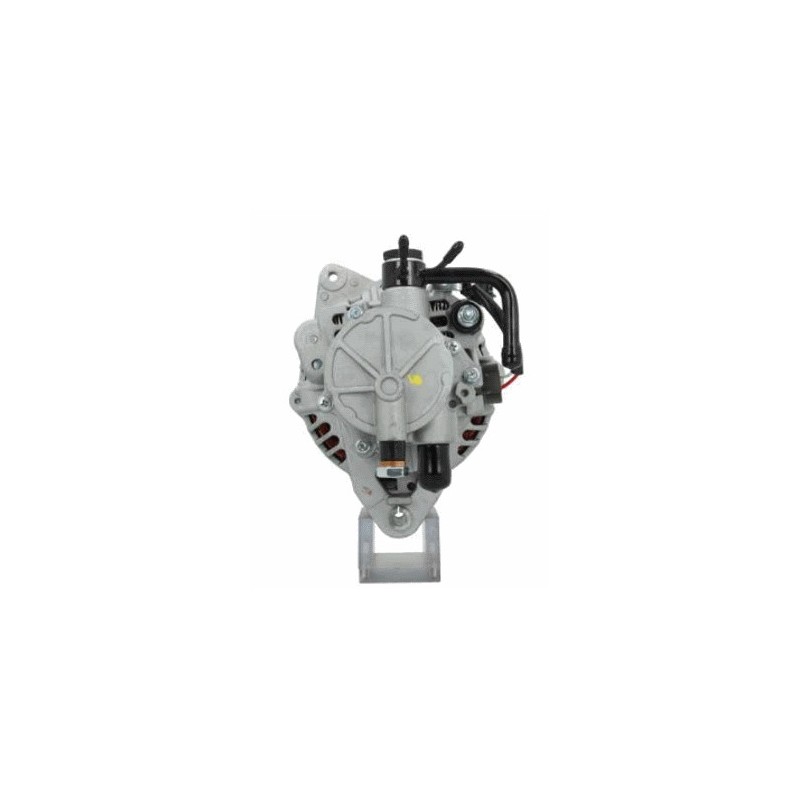

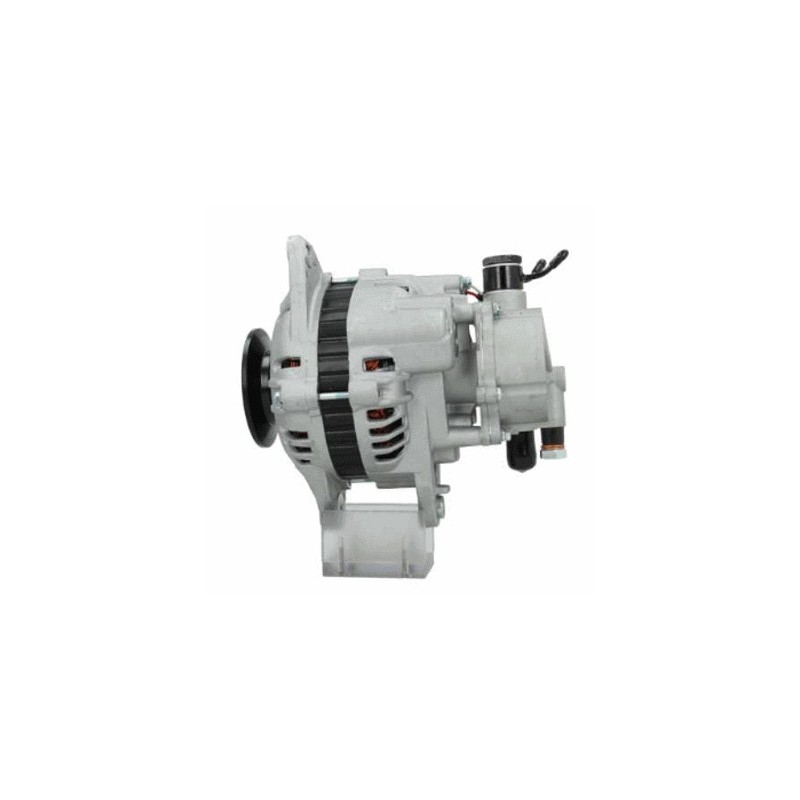

Alternator replacing A3T07483 / A003T07483 / 0986080880
Alternator NEW replacing A3T07483 / A003T07483 / 0986080880 / DRA3695 / JA1184IR / LRA02717
MD162964 / N5115096 / TRA094
fitsPajero 2.5TD
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |

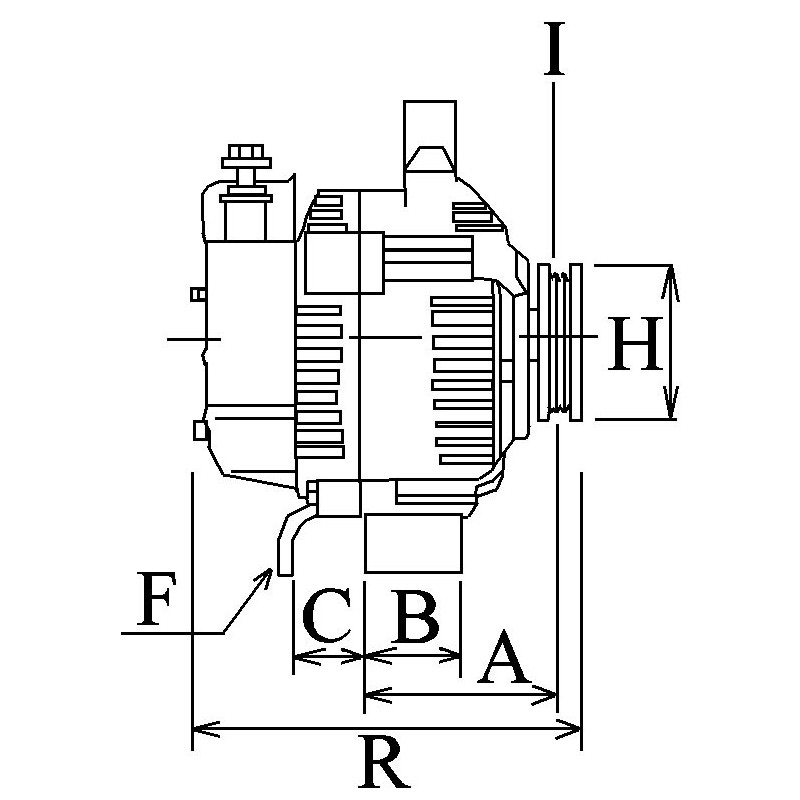

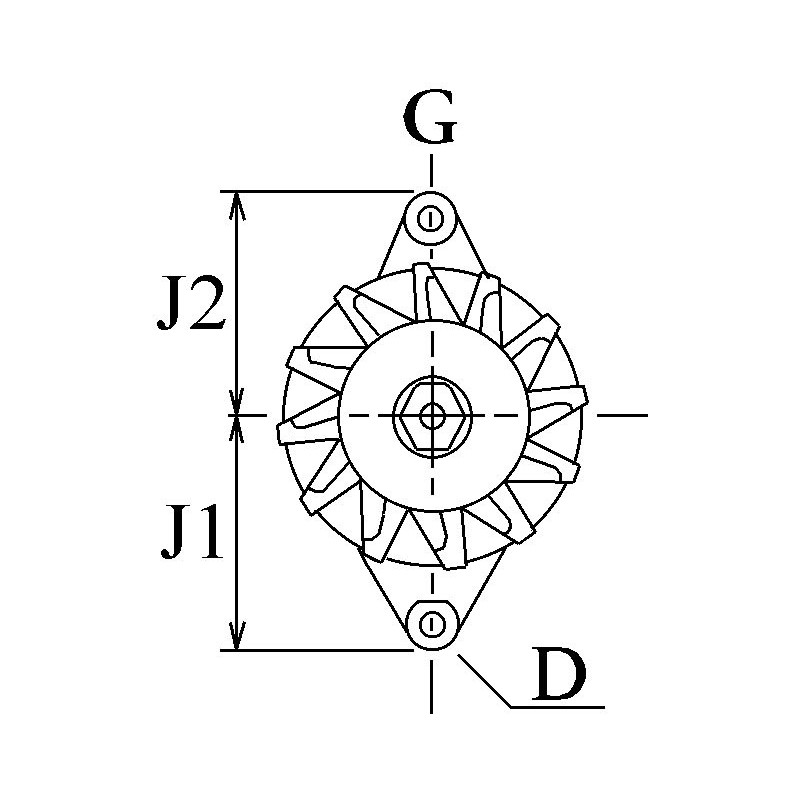

Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.50 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 13.00 |
| E | Belt. adj. brackethole pos. | 5 |
| C | Mount. bracket dist | 55.00 |
| H | Pulley dia. | 85.20 |
| A | Pulley dist. | 45.65 |
| i | Grooves/pulley | 1 |
| j | Radius | 91.75 |
| j | Radius 2 | 96.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

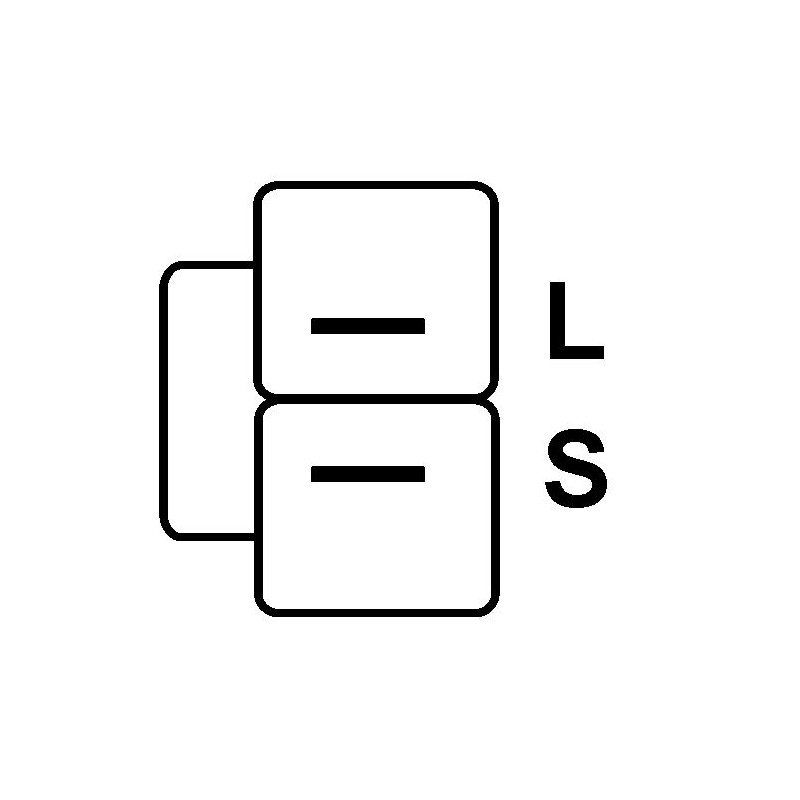

| o | Plug no. 1 | PL07 |
| R | Total length mm | 239.00 |
Replacing | |
|---|---|
| 515143 | VALEO |
| A003T07483 | MITSUBISHI |
| a3t07483 | MITSUBISHI |
| ja1184ir | HC-PARTS |
| md162964 | MITSUBISHI |
| md339609 | MITSUBISHI |
| 0986080880 |
| 155605090 |
| 282804 |
| 5672SP |
| 90273324 |
| 933695 |
| A3T07483 |
| DRA3695 |
| HJA1184IR |
| JA1184IR |
| L68010 |
| LRA02717 |
| MD162964 |
| N5115096 |
| SA125 |
| TRA094 |
generic brand
fits:
| Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pajero | 2.5 | Diesel | 1990 12 | 2000 04 | 4D56TD | TD | 73 | 99 | Décapotable | 2477 | 4 | V24C,W |
| Pajero | 2.5 | Diesel | 1990 12 | 1999 10 | 4D56TD | TD | 73 | 99 | 2477 | 4 | V24C,W |
